Prins VSI - Overpressure Connection

PAGE 9
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
9

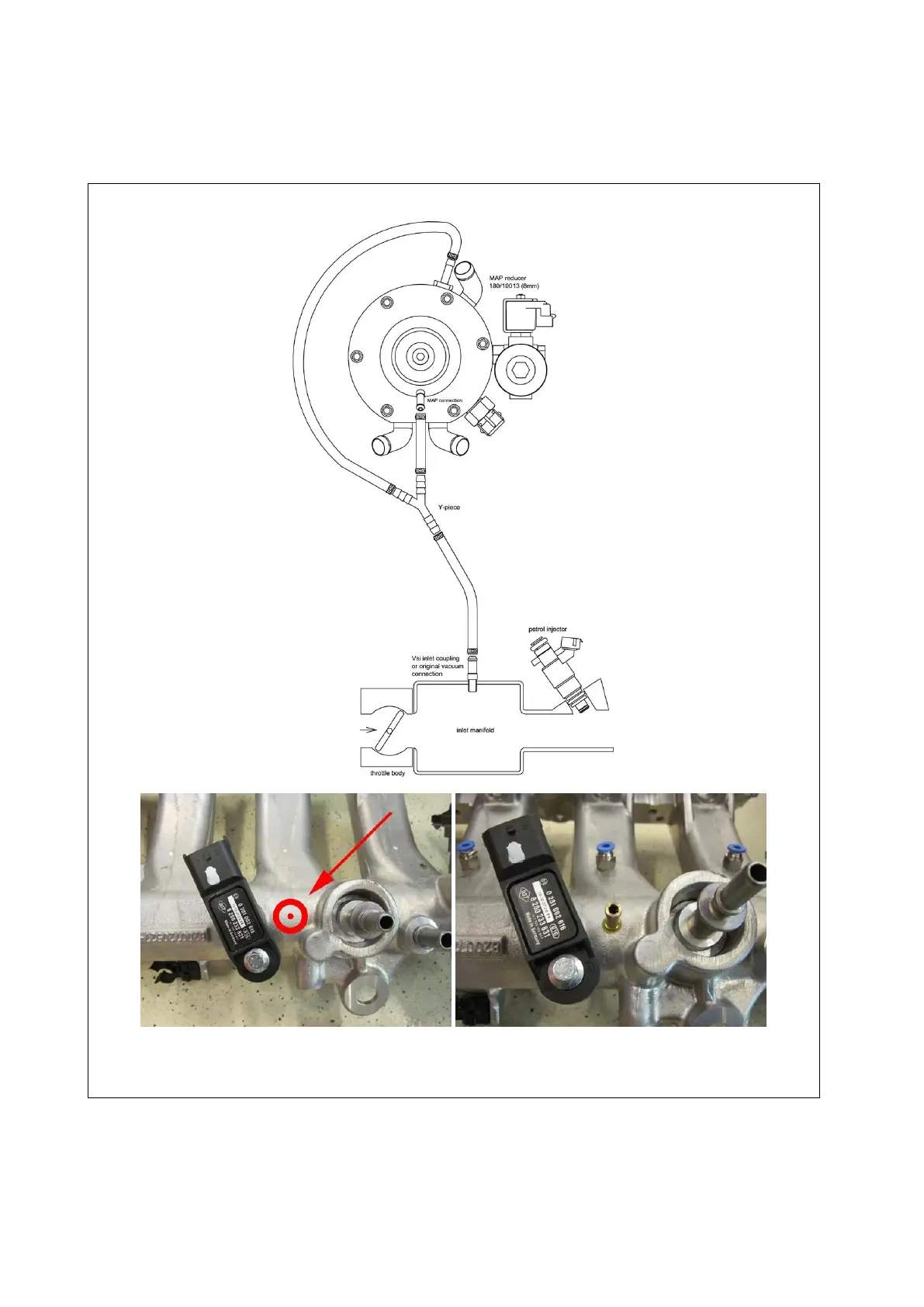

Overpressure connection
Drill a hole of Ø5mm and cut thread M6 in this hole.
Place a VSI coupling with a lock compound to the inlet manifold.
Connect overpressure / MAP hose from reducer.
