Prins VSI - Initial Component Mounting

PAGE 7
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
7

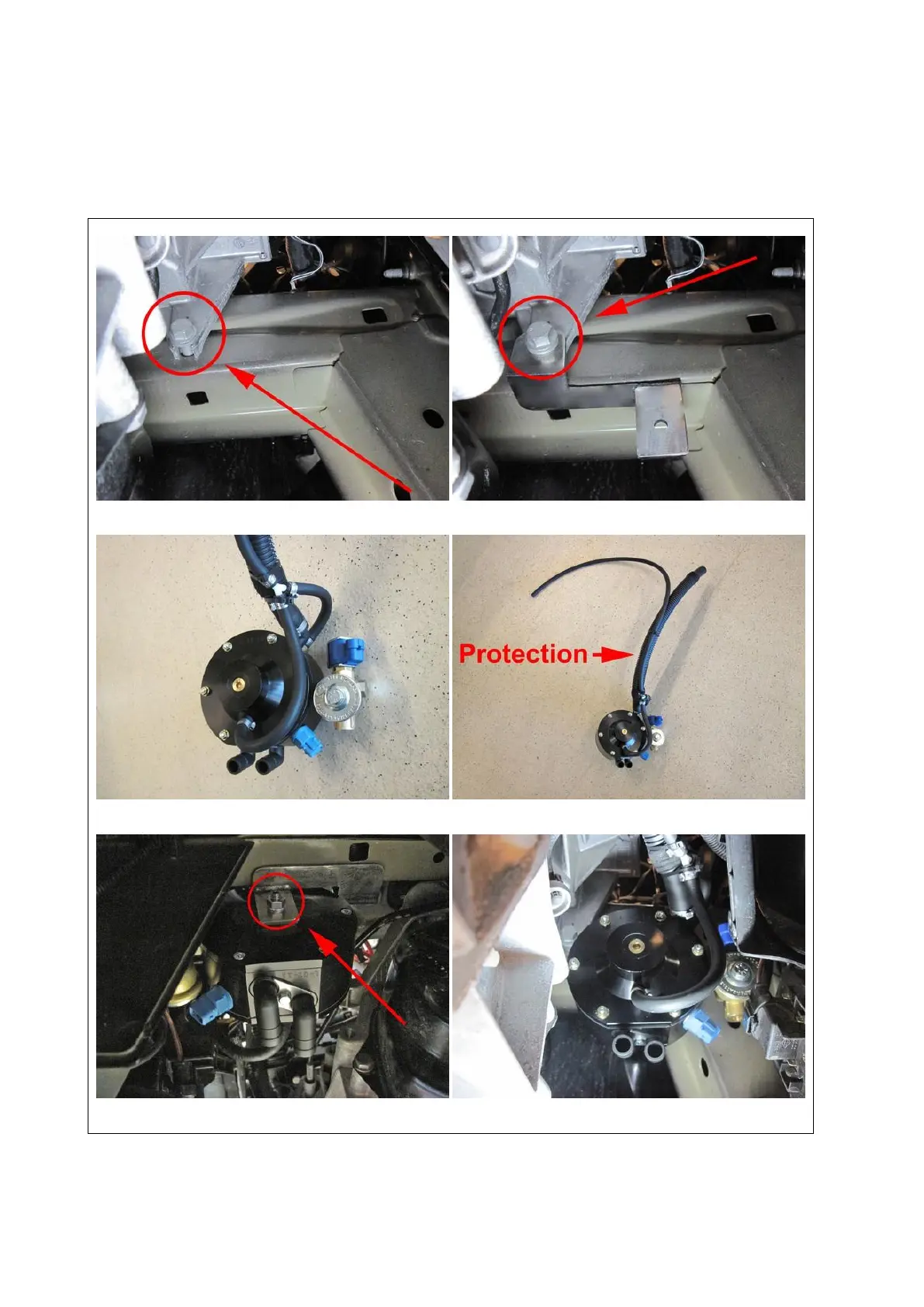

Mounting the reducer
Filter replacement must be recorded in the service book supplied
Remove battery, battery holder and air filter housing.
Mount reducer bracket on original bolt on left chassis beam.
Mount hoses on reducer. For length of hoses see page 16. Mount protection on 16mm hose.
Mount reducer on bracket with M8 nut and spring washer.
