Prins VSI - Component and System Wiring

PAGE 20
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
20
Electrical connections
Check and measure the wiring in case of changes in the cars wiring colours.
Insulate all not used wires.
2-pole blue connector
15 Tect
34 C ground
grey
brown
For measuring the engine coolant temperature ( Tect )
Connect the connector to the reducer temperature sensor.
4-pole connector
35 C ground
14 T-Gas
9 +5 Volt sensor
16 Psys
brown
grey
red
green
For measuring gas pressure and temperature.
Connect the connector to the filter unit sensor.
2-pole connector
24 +12V reducer lock-off
31Ground reducer lock-off
yellow-green
brown
Connect the connector to the reducer lock-off valve.
4-pole connector
46 Service TxD
65 Service RxD
68 C ground
grey
grey
brown
Diagnose connector.
3-pole connector
3 +12V fuel switch
66 ground fuel switch
49 LIN fuel switch
red
brown
yellow
Connect to the VSI switch.
Tank wiring loom
2 Power tank valve 1
12 Tank level in
26 ground tank lock off
red
blue
black
Connect to the tank lock-off.
Connect the tank level gauge.
Connect to the tank lock-off.

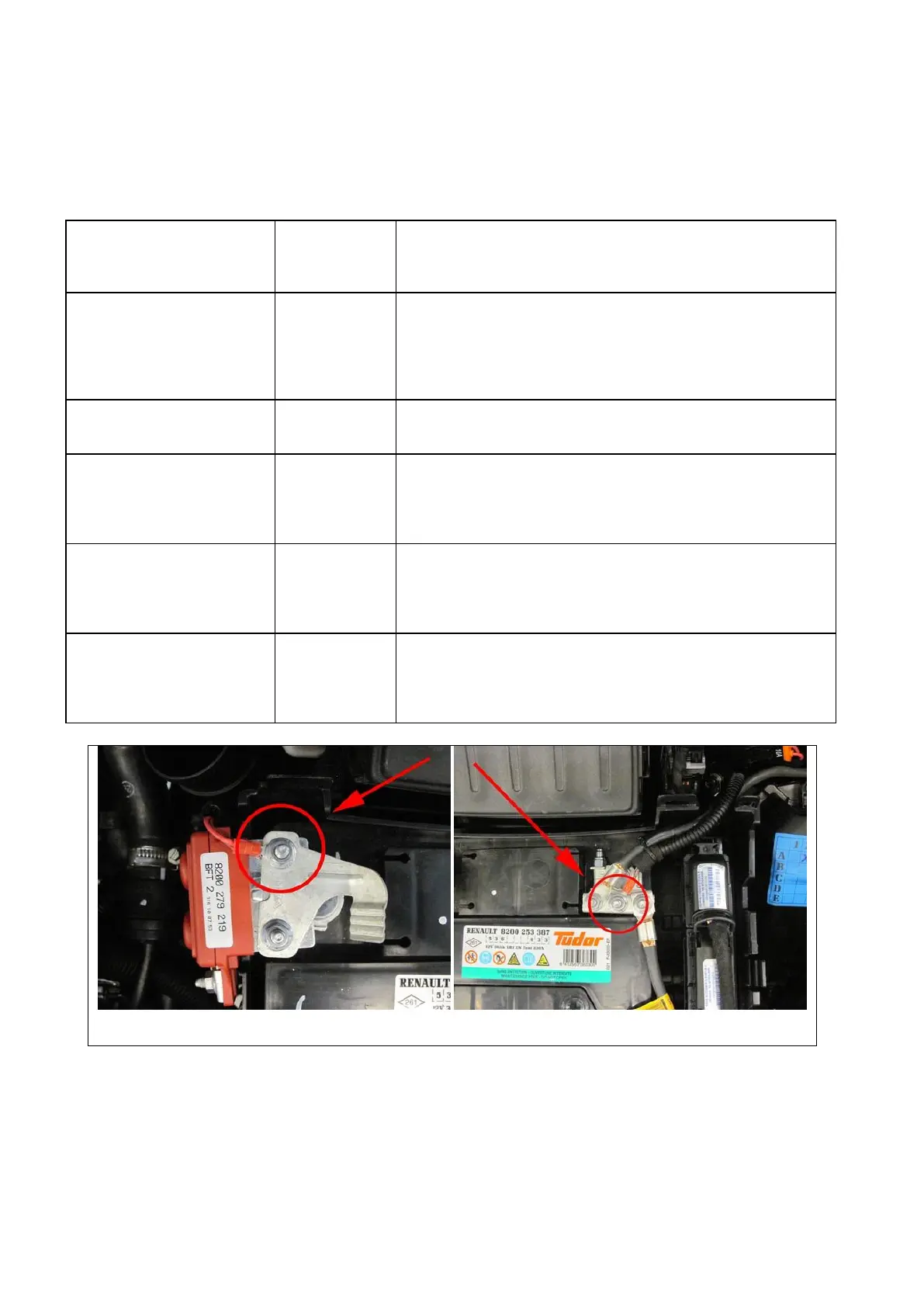

Ground on battery -. +12V bat on battery +. VSI2 ECU next to the battery.
