Prins VSI - Mounting and Connection Points

PAGE 6
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
6

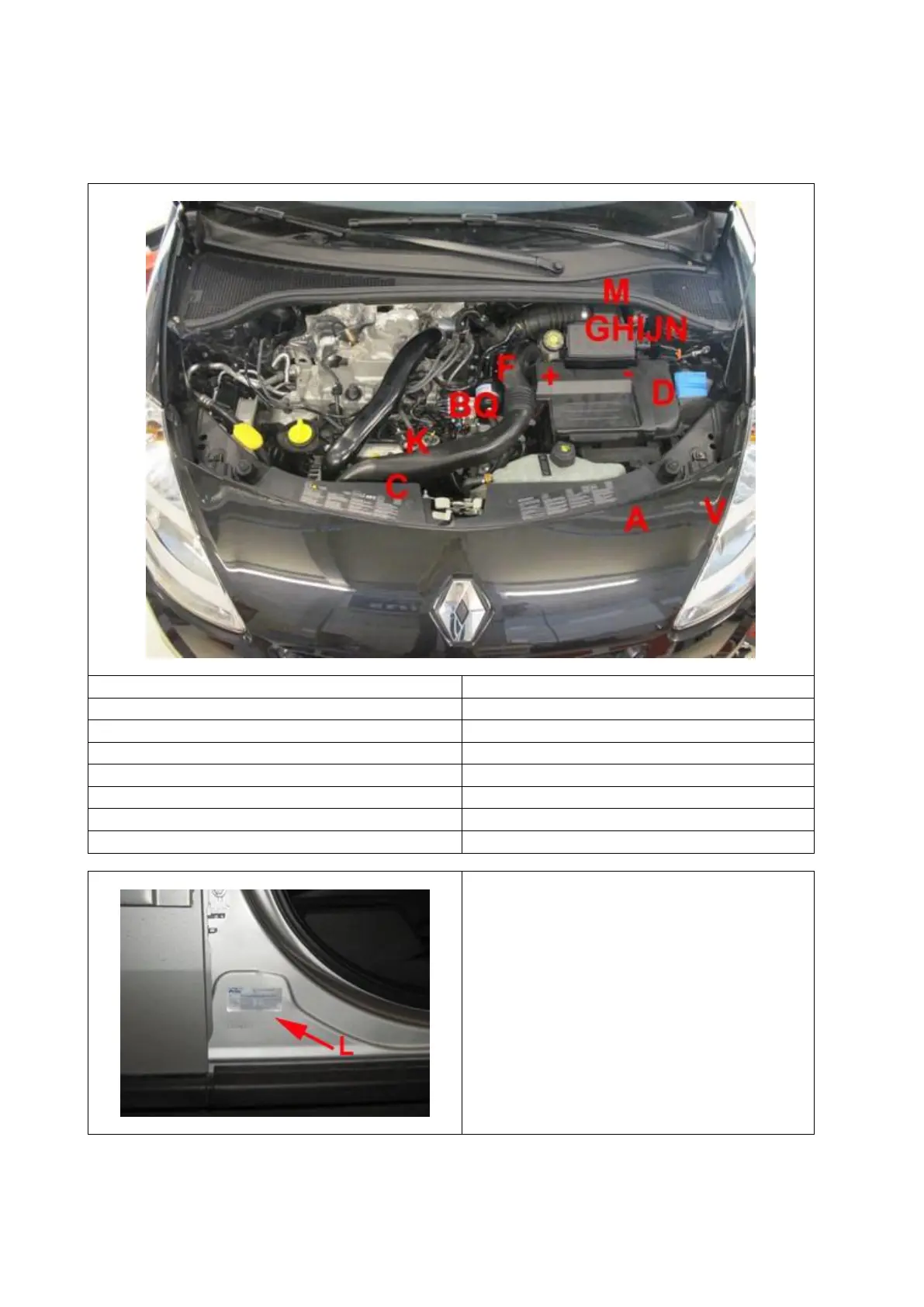

Mounting and connection points
A : Reducer
I : Lambda signal ( 19 + 20 )
B : Filter unit
J : “-“ interruption petrol injector
C : Injector rail
K : Overpressure coupling
D : VSI Computer
L : R115 Approval sticker
E : Injection module
M : grommet
F : Water connections
N : Turbo / MAP signal
G : “+” petrol injectors ( 112 )
V : ValveCare pump
H : Engine speed signal RPM ( 8 )
Q : ValveCare distributor
R115 approval sticker :
Right side centre door post
