Prins VSI - Mounting the Prins Filter Unit

PAGE 13
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
13
Mounting the Prins filter unit

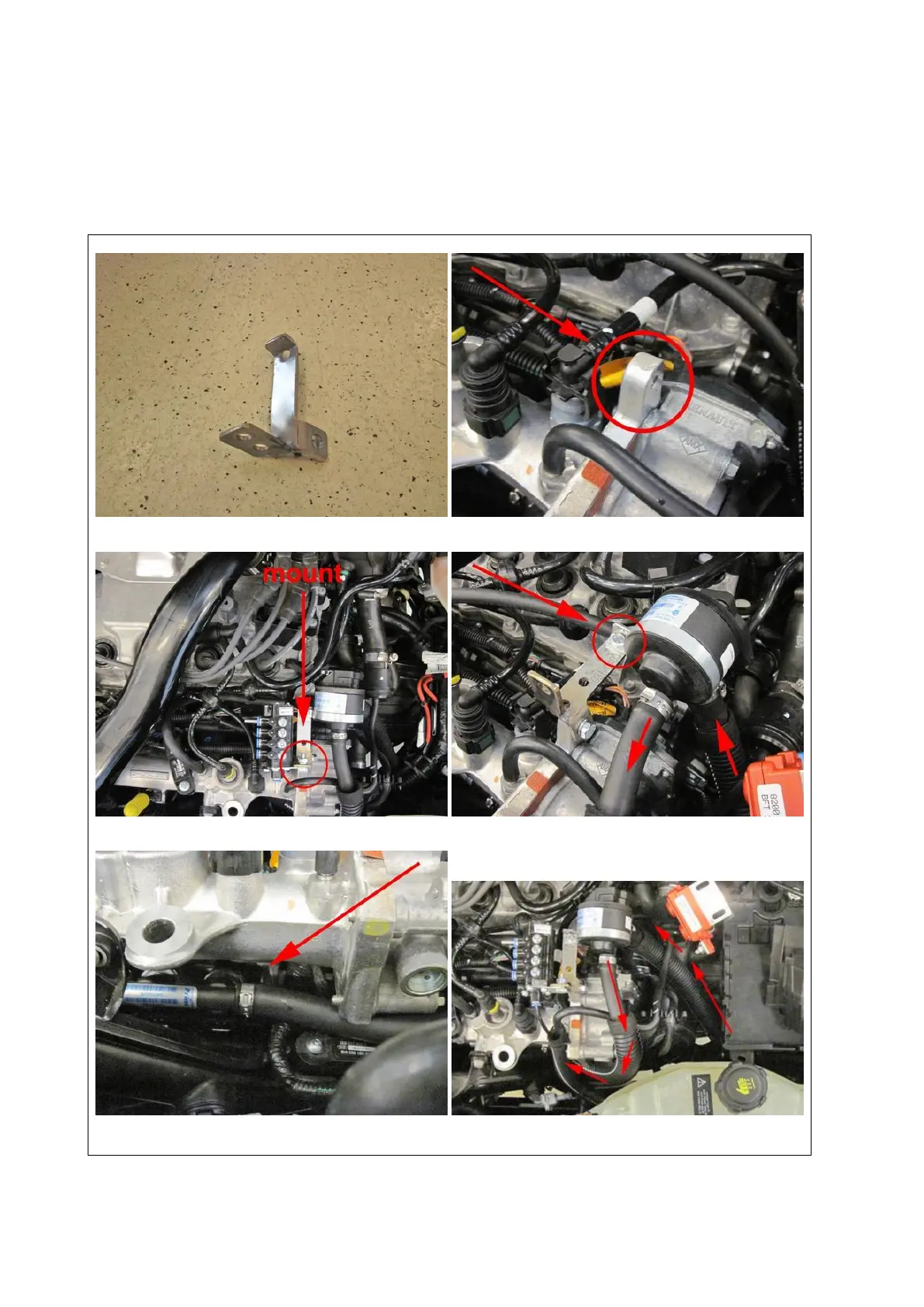

Mount the filter on the left side of the engine on top of the throttle body.
Filter replacement must be recorded in the service book supplied
Mount bracket on top of the throttle body with bolt M6 and spring washer.
Mount filter with supported clamp on bracket and mount hoses.
Mount hoses from reducer to filter and from filter to injector rail. Mount protection on Ø11mm hose.
