Mounting the ValveCare manifold couplings
Drill 4 holes Ø8,8mm at the upside of the inlet manifold and cut thread G 1/8-28.
Mount the ValveCare couplings with a locking compound in the inlet manifold.

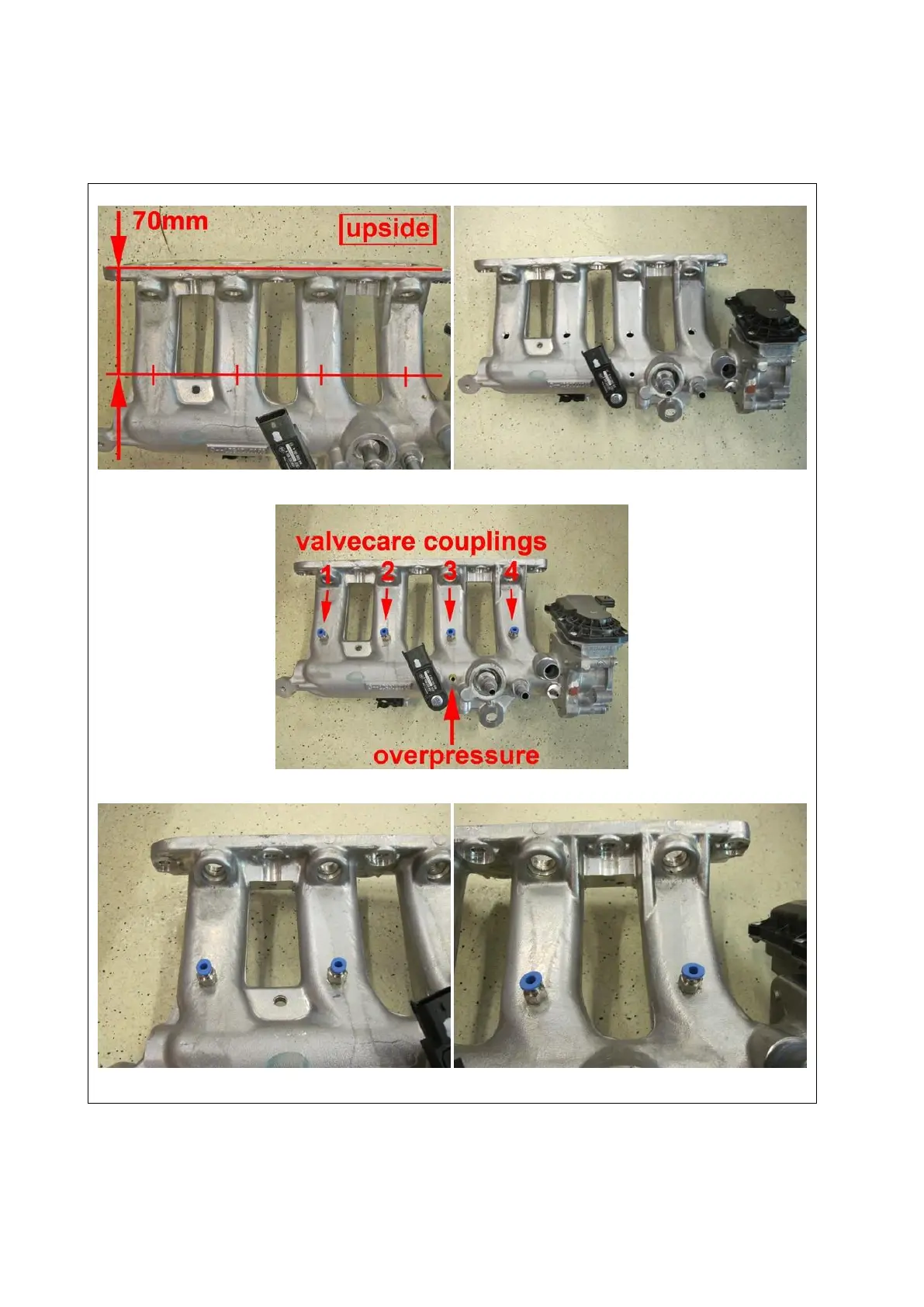

ValveCare couplings cylinder 4 & 3. ValveCare couplings cylinder 2 & 1.
