Prins VSI - Mounting the VSI Injector Rail

PAGE 12
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
12
Mounting the VSI injector rail

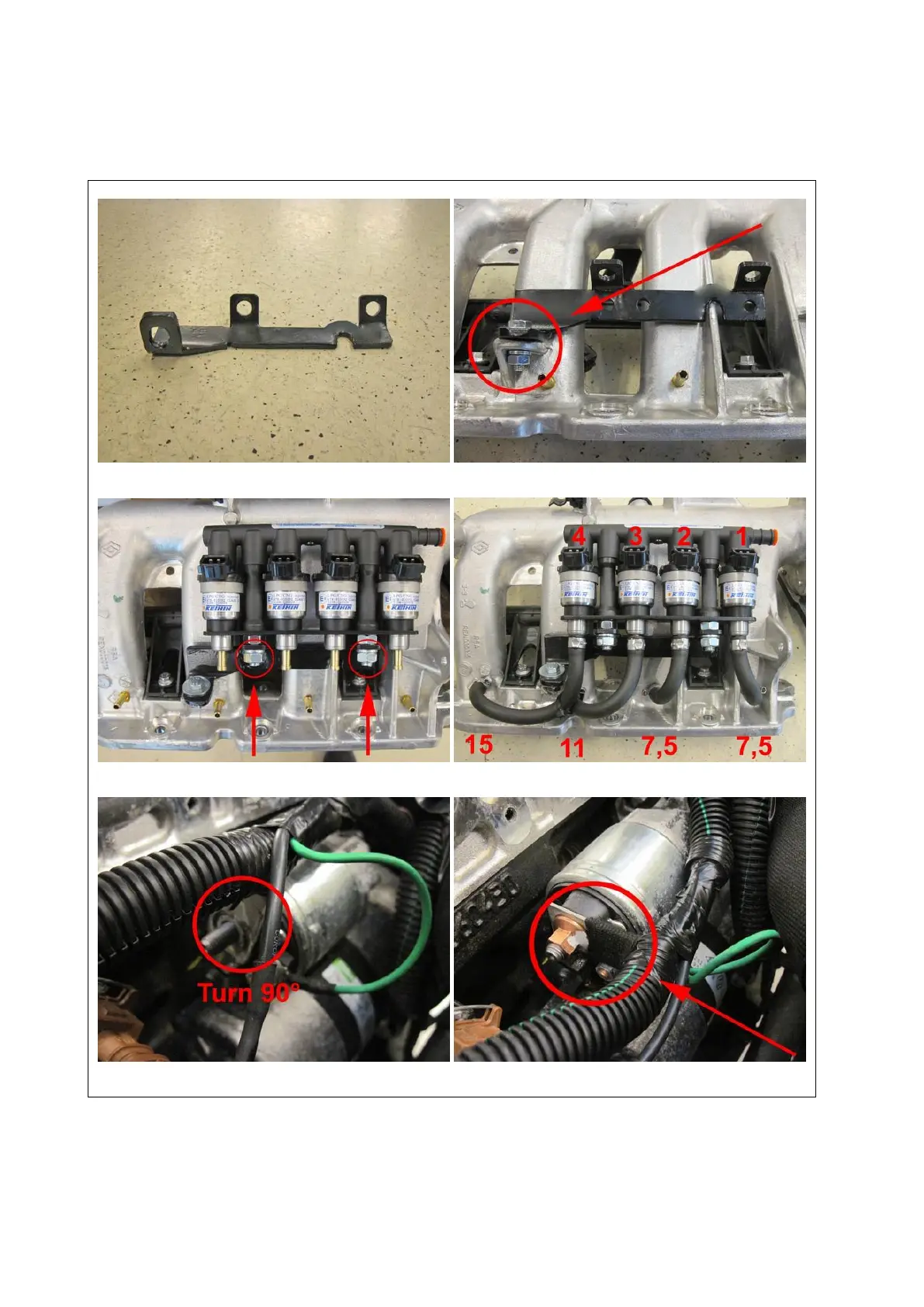

Mount injector rail bracket at underside of the inlet manifold with M6 bolt, nut and washers.
Mount injector rail on bracket. Connect hoses from injector rail to manifold couplings. Lenghts in cm’s.
Turn “+” battery connection on starter 90 degrees to the front and isolate before mounting back manifold.
