Prins VSI - Mounting Valvecare 2

PAGE 15
076/19060100
Copyright © Prins Autogassystemen B.V. 2011
Renault
Clio 1.2 16v TCe100 2011
VERSION NR : C
15

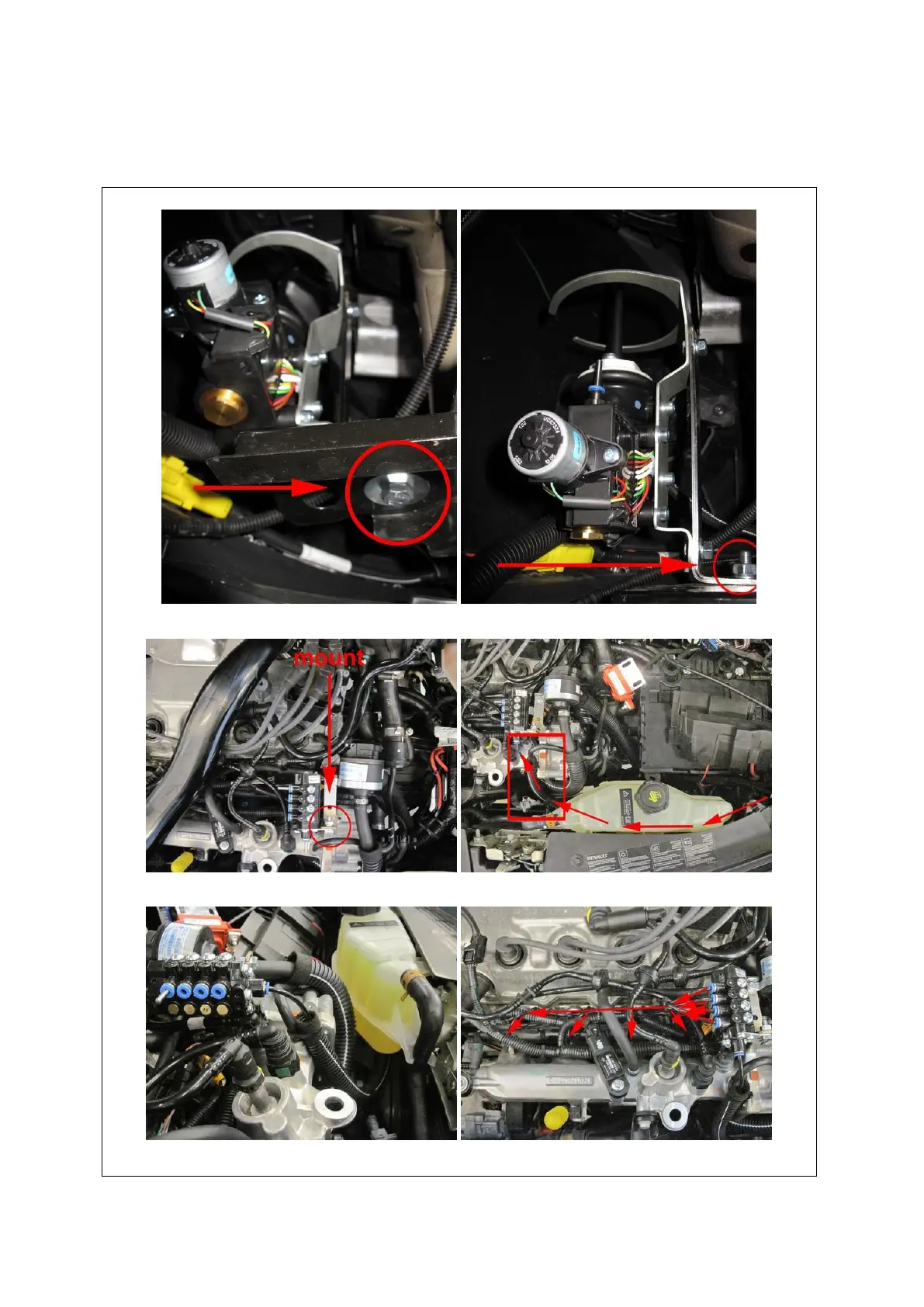

Mounting ValveCare 2
Mount ValveCare pump behind left front plastic wheel arch at the front end of the chassis beam.
Mount ValveCare distributor to bracket. Mount ValveCare hose to distributor.
Mount ValveCare hose to distributor. Mount hoses from distributor to inlet couplings.
