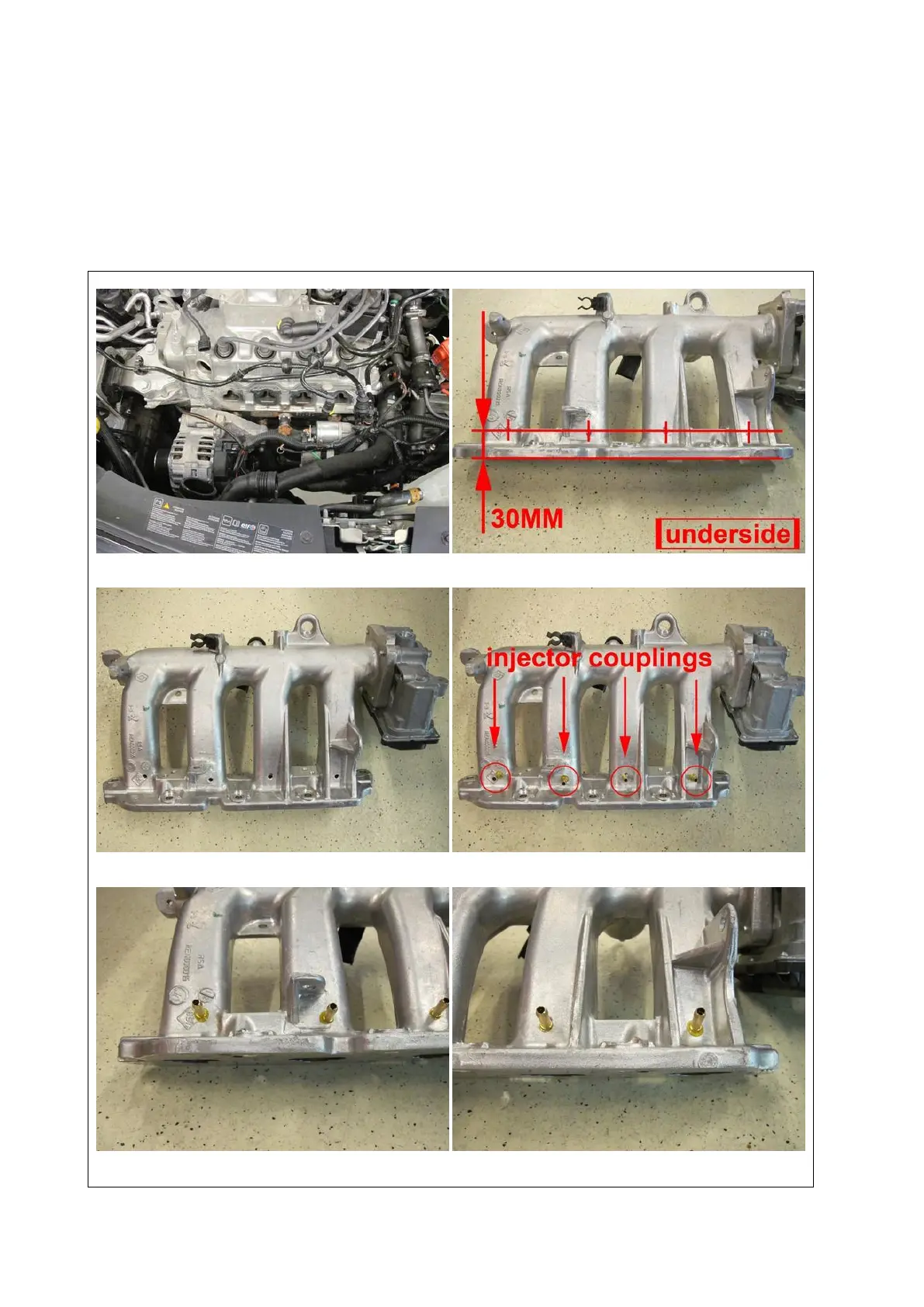

Mounting the inlet manifold couplings
Remove the inlet manifold. Drill 4x holes of Ø5 mm in the inlet manifold.
Cut M6 thread in these holes.
Place the VSI couplings with a lock compound in the inlet manifold.
Watch out that the lock compound doesn’t come inside the VSI couplings.
Drill 4 holes of Ø5mm at the underside of the inlet manifold. Cut M6 thread in these holes.
Mount the VSI couplings with a locking compound in the inlet manifold.
VSI couplings cylinder 4 & 3. VSI couplings cylinder 2 & 1.
