GP3000 Series Hardware Manual
4-26

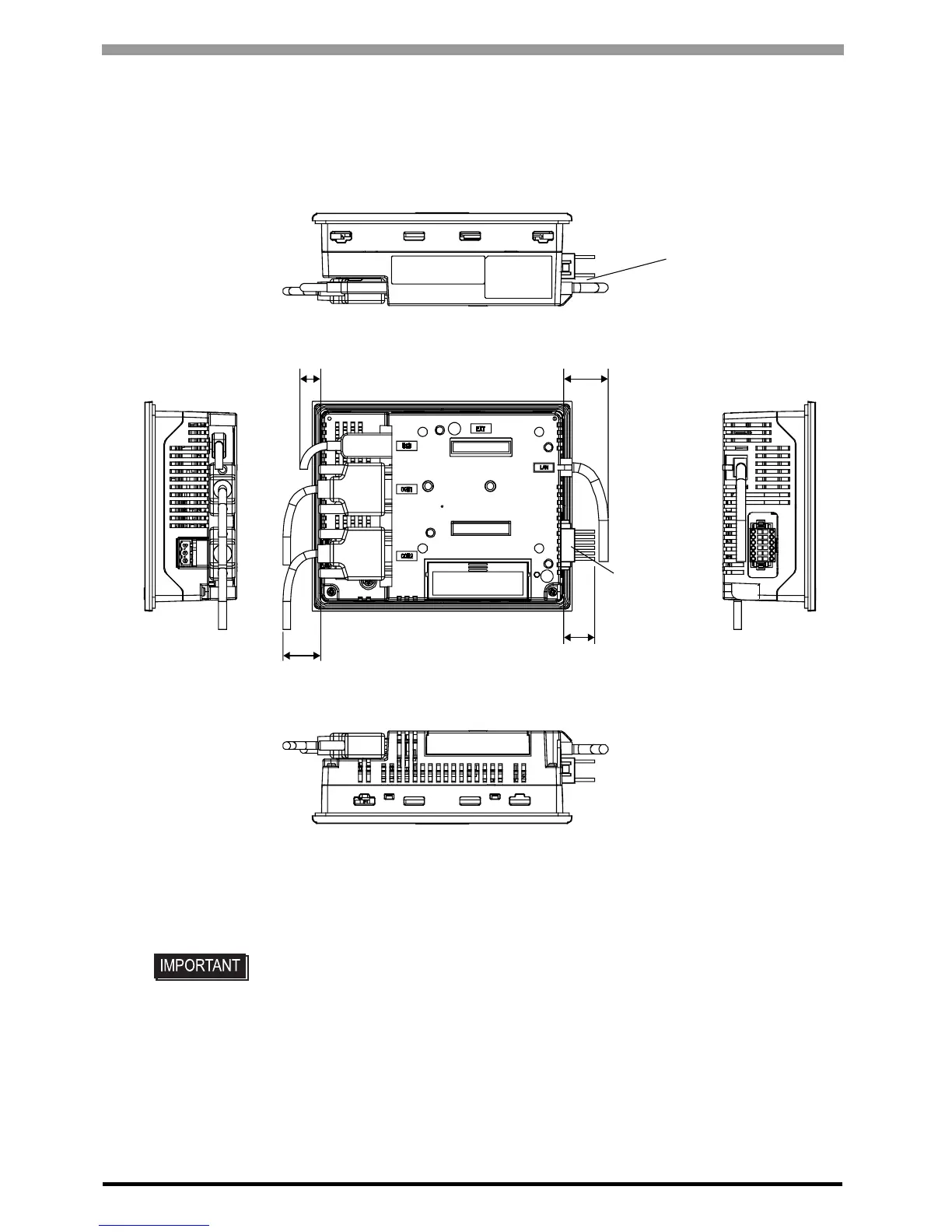

Cable Attached Dimensions
GP-3300 dimensions with cable connected differ between AGP-3300*/3301*/3302 and AGP-3310T/3360T.
AGP-3300*/3301*/3302*
Unit: mm[in.]
• All the above values are designed in case of cable bending. The dimensions given
here are representative values depending on the type of connection cable used.
Therefore, they are all intended for reference only.
Front
29
[1.14]
Rear Right side
13
[0.51]
24
[0.94]
Left side
AGP-3301∗/3302B
Series units are not
equipped with an
Ethernet interface.
*1
DIO Connector,
FLEX NETWORK
Connector or
CANopen
Connector
Bottom
(The figure shows the DIO board type unit.)
*1 A 20mm [0.79 in.] space is necessary for the DIO/FLEX NETWORK board and a 127mm [5 in.] space for
the CANopen board type.
To Next Page
