Dimensions / Installation
36
NOTE: The installation fasteners are required for IP••/NEMA 4X indoor protection. IP••/NEMA 4X
indoor or Type 4 is not part of UL certification.

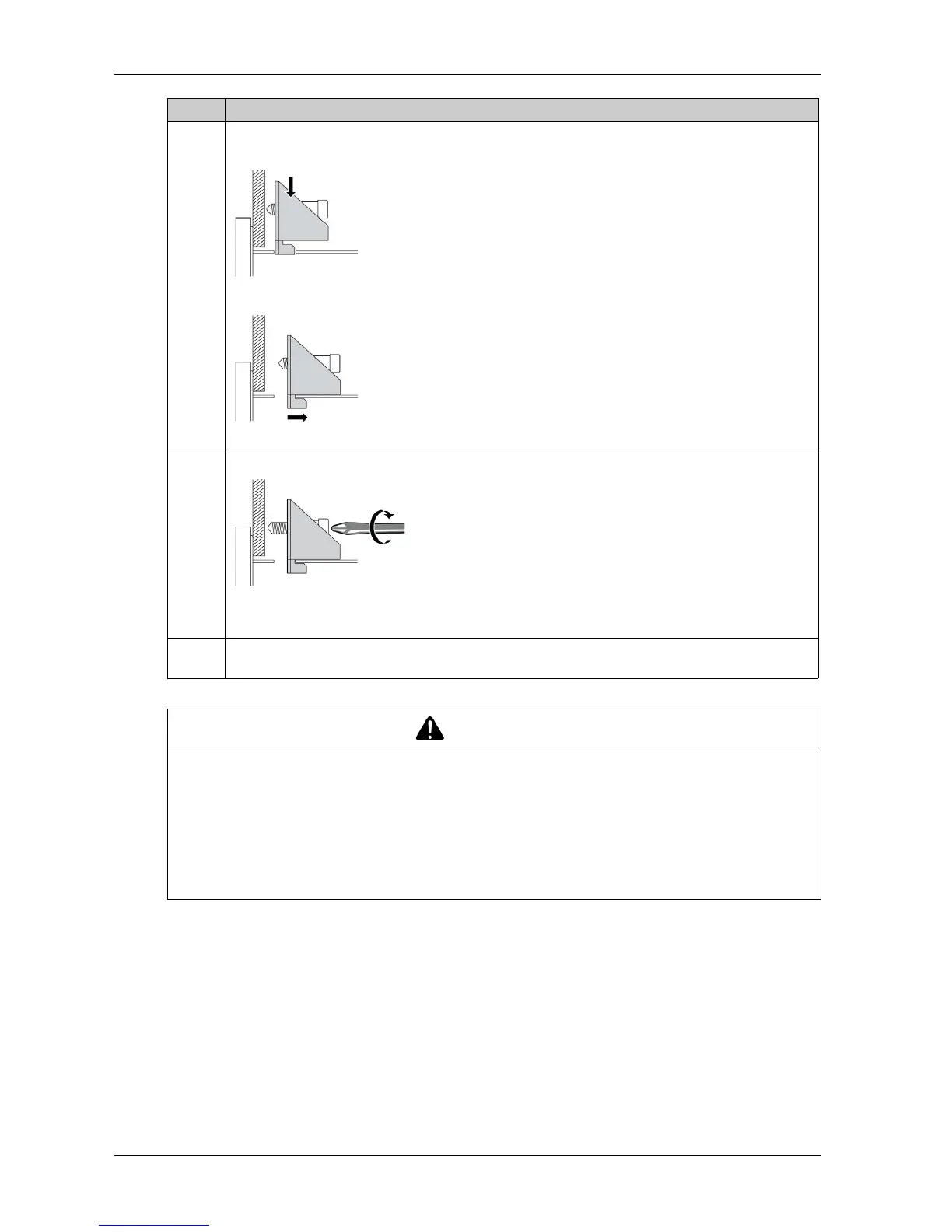

6 Insert each fastener in its corresponding slot and pull the fastener back until it is flush with the rear
of the fastener hole:
m
7 Tighten each of the cross-slotted fastener screws, and fasten the Slim Panel in place:
NOTE: To ensure a high degree of moisture resistance, use a torque of 0.5 Nm (4.5 lb-in).
8 The angle of the unit is tilted no more than the amount allowed by the mounting orientation
requirements.
CAUTION
OVERTORQUE AND LOOSE HARDWARE
Do not exert more than 0.5 Nm (4.5 lb-in) of torque when tightening the installation fastener,
enclosure, accessory, or terminal block screws. Tightening the screws with excessive force
can damage the installation fastener.
When fastening or removing screws, ensure they do not fall inside the Industrial Personal
Computer chassis.
Failure to follow these instructions can result in injury or equipment damage.
Step Action
