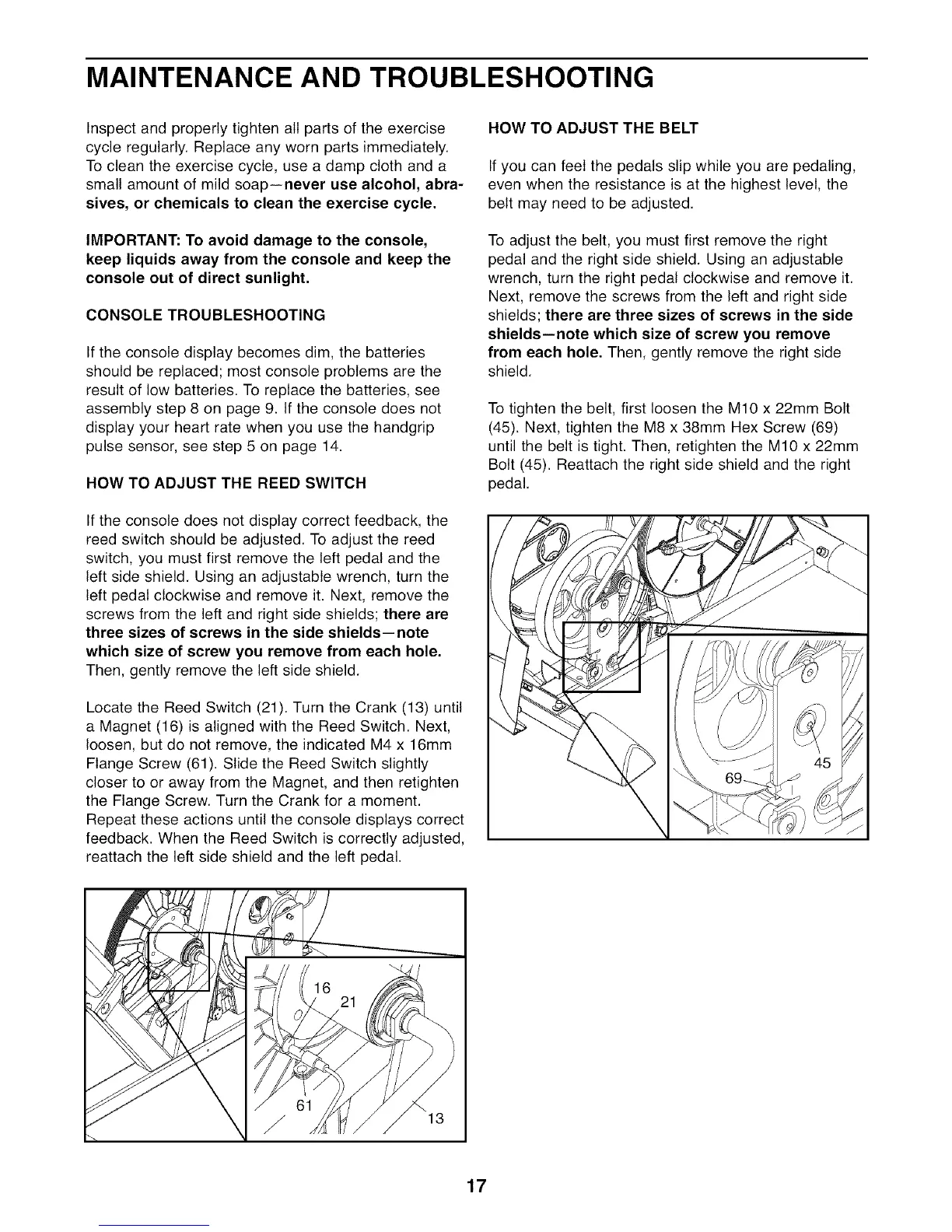

MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild soap--never use alcohol, abra-
sives, or chemicals to clean the exercise cycle.
IMPORTANT: To avoid damage to the console,
keep liquids away from the console and keep the
console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 8 on page 9. If the console does not
display your heart rate when you use the handgrip
pulse sensor, see step 5 on page 14.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left pedal and the
left side shield. Using an adjustable wrench, turn the
left pedal clockwise and remove it. Next, remove the
screws from the left and right side shields; there are
three sizes of screws in the side shields--note
which size of screw you remove from each hole.
Then, gently remove the left side shield.
Locate the Reed Switch (21). Turn the Crank (13) until
a Magnet (16) is aligned with the Reed Switch. Next,
loosen, but do not remove, the indicated M4 x 16mm
Flange Screw (61). Slide the Reed Switch slightly
closer to or away from the Magnet, and then retighten
the Flange Screw. Turn the Crank for a moment.
Repeat these actions until the console displays correct
feedback. When the Reed Switch is correctly adjusted,
reattach the left side shield and the left pedal.
HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
belt may need to be adjusted.
To adjust the belt, you must first remove the right
pedal and the right side shield. Using an adjustable
wrench, turn the right pedal clockwise and remove it.
Next, remove the screws from the left and right side
shields; there are three sizes of screws in the side
shields--note which size of screw you remove
from each hole. Then, gently remove the right side
shield.
To tighten the belt, first loosen the M10 x 22mm Bolt
(45). Next, tighten the M8 x 38mm Hex Screw (69)
until the belt is tight. Then, retighten the M10 x 22mm
Bolt (45). Reattach the right side shield and the right
pedal.
17
