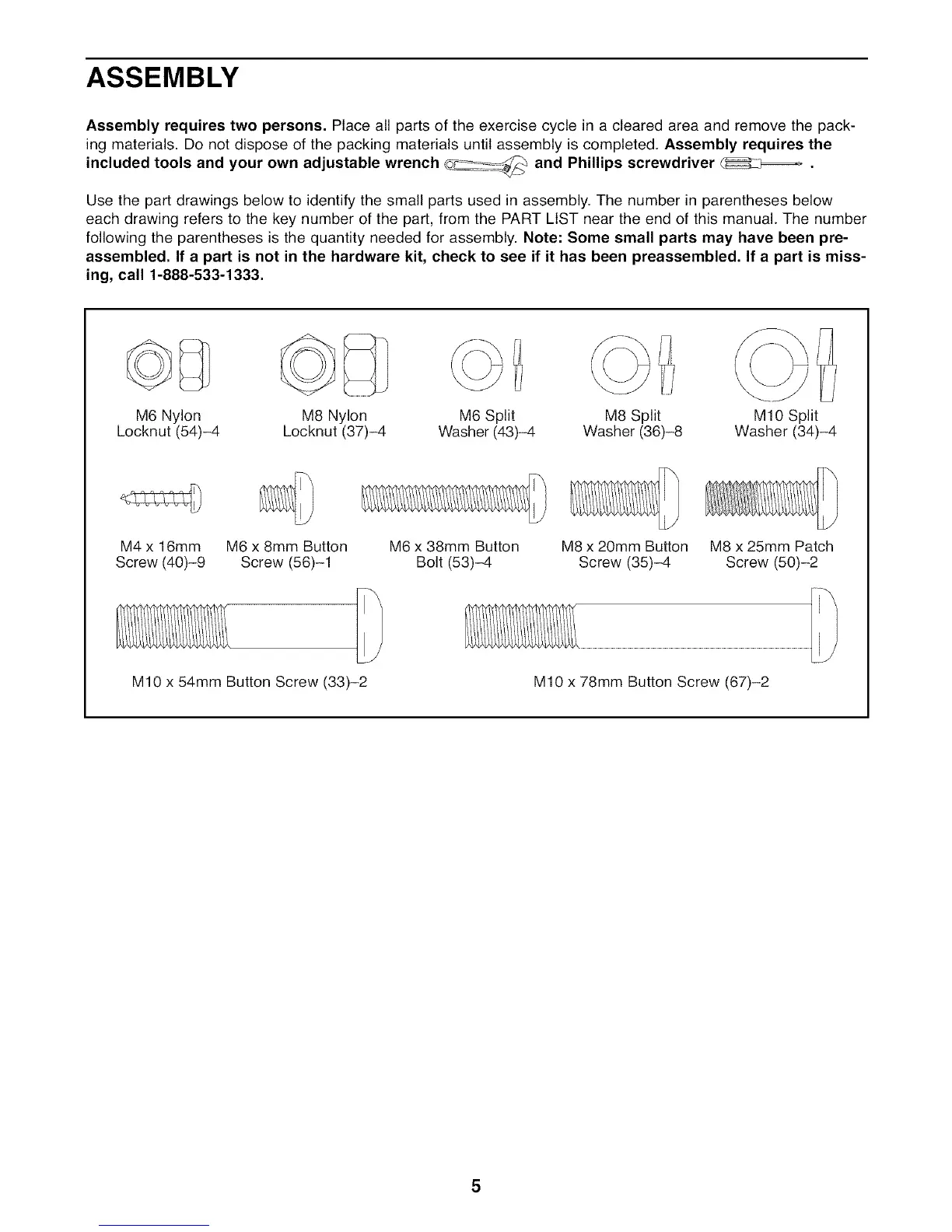

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included tools and your own adjustable wrench ©_-:_-_ and Phillips screwdriver _:_==_ .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a part is miss-
ing, call 1-888-533-1333.
M6 Nylon
Locknut (54)-4
M8 Nylon
Locknut (37)-4
M6 Split M8 Split MIO Split
Washer (43)-4 Washer (36)-8 Washer (34)-4
M4 x 16mm M6 x 8mm Button
Screw (40)-9 Screw (56)-1
MIO x 54mm Button Screw (33)-2
M6 x 38mm Button
Bolt (53)-4
M8 x 20mm Button M8 x 25mm Patch
Screw (35)-4 Screw (50)-2
MIO x 78mm Button Screw (67)-2
