Pro-Form XP 185 U - Frame and Stabilizer Assembly

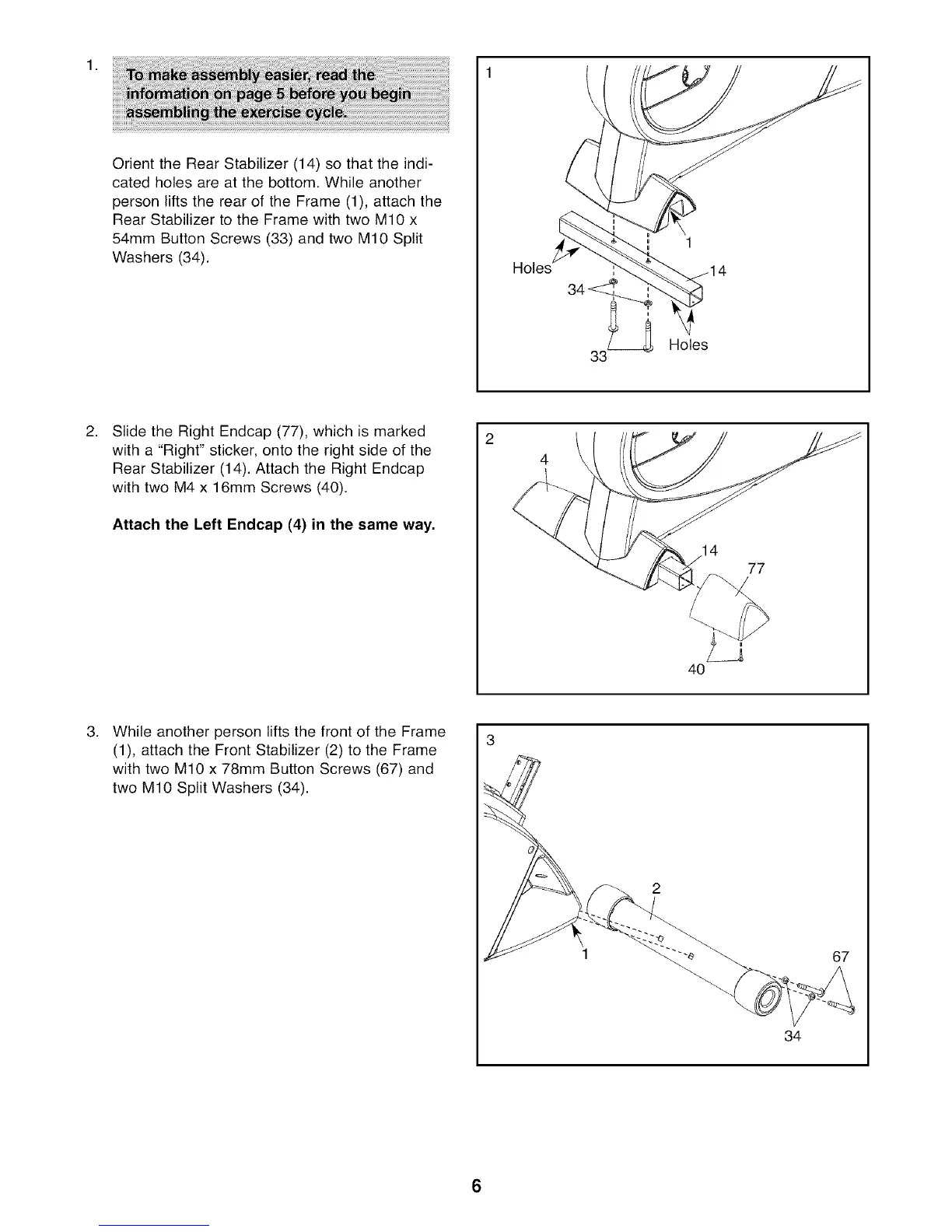

OrienttheRearStabilizer(14)sothattheindi-
catedholesareatthebottom.Whileanother
personliftstherearoftheFrame(1),attachthe
RearStabilizertotheFramewithtwoMIOx
54mmButtonScrews(33)andtwoMIOSplit
Washers(34).
Holes
Holes
SlidetheRightEndcap(77),whichismarked
witha"Right"sticker,ontotherightsideofthe
RearStabilizer(14).AttachtheRightEndcap
withtwoM4x 16mmScrews(40).
Attach the Left Endcap (4) in the same way.
(
77
,
While another person lifts the front of the Frame
(1), attach the Front Stabilizer (2) to the Frame
with two MIO x 78mm Button Screws (67) and
two MIO Split Washers (34).
67
34
6
