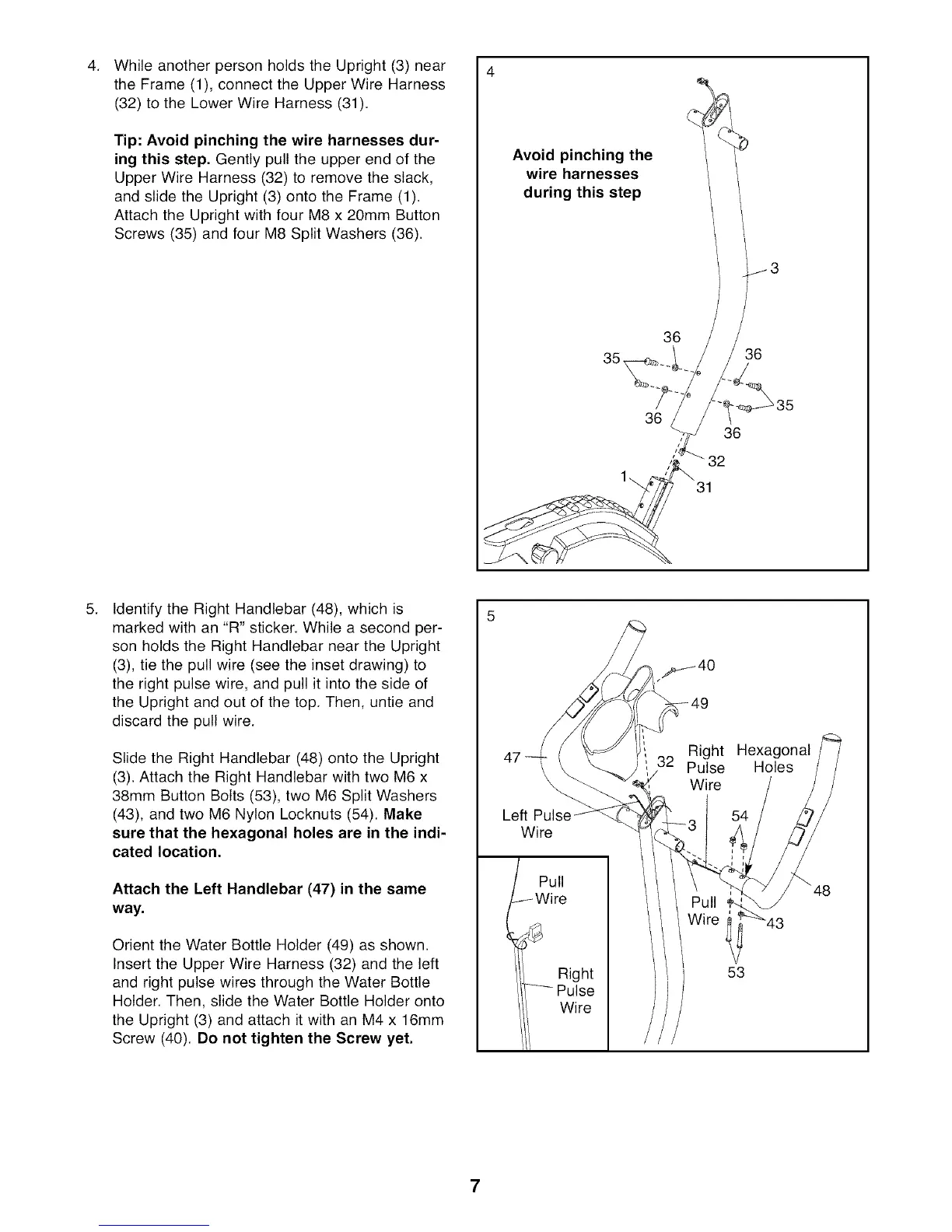

4. 4
While another person holds the Upright (3) near
the Frame (1), connect the Upper Wire Harness
(32) to the Lower Wire Harness (31).
Tip: Avoid pinching the wire harnesses dur-
ing this step, Gently pull the upper end of the
Upper Wire Harness (32) to remove the slack,
and slide the Upright (3) onto the Frame (1).
Attach the Upright with four M8 x 20mm Button
Screws (35) and four M8 Split Washers (36).
Avoid pinching the
wire harnesses
during this step
36
35.
36
1
31
36
36
5.
Identify the Right Handlebar (48), which is
marked with an "R" sticker. While a second per-
son holds the Right Handlebar near the Upright
(3), tie the pull wire (see the inset drawing) to
the right pulse wire, and pull it into the side of
the Upright and out of the top. Then, untie and
discard the pull wire.
Slide the Right Handlebar (48) onto the Upright
(3). Attach the Right Handlebar with two M6 x
38mm Button Bolts (53), two M6 Split Washers
(43), and two M6 Nylon Locknuts (54). Make
sure that the hexagonal holes are in the indi-
cated location.
Attach the Left Handlebar (47) in the same
way.
Orient the Water Bottle Holder (49) as shown.
Insert the Upper Wire Harness (32) and the left
and right pulse wires through the Water Bottle
Holder. Then, slide the Water Bottle Holder onto
the Upright (3) and attach it with an M4 x 16mm
Screw (40). Do not tighten the Screw yet.
47
Left
Wire
Pull
Wire
Right
_ Pulse
Wire
Right Hexagonal
Pulse Holes
Wire
/ Pull _q
_iWire
53
To Next Page
