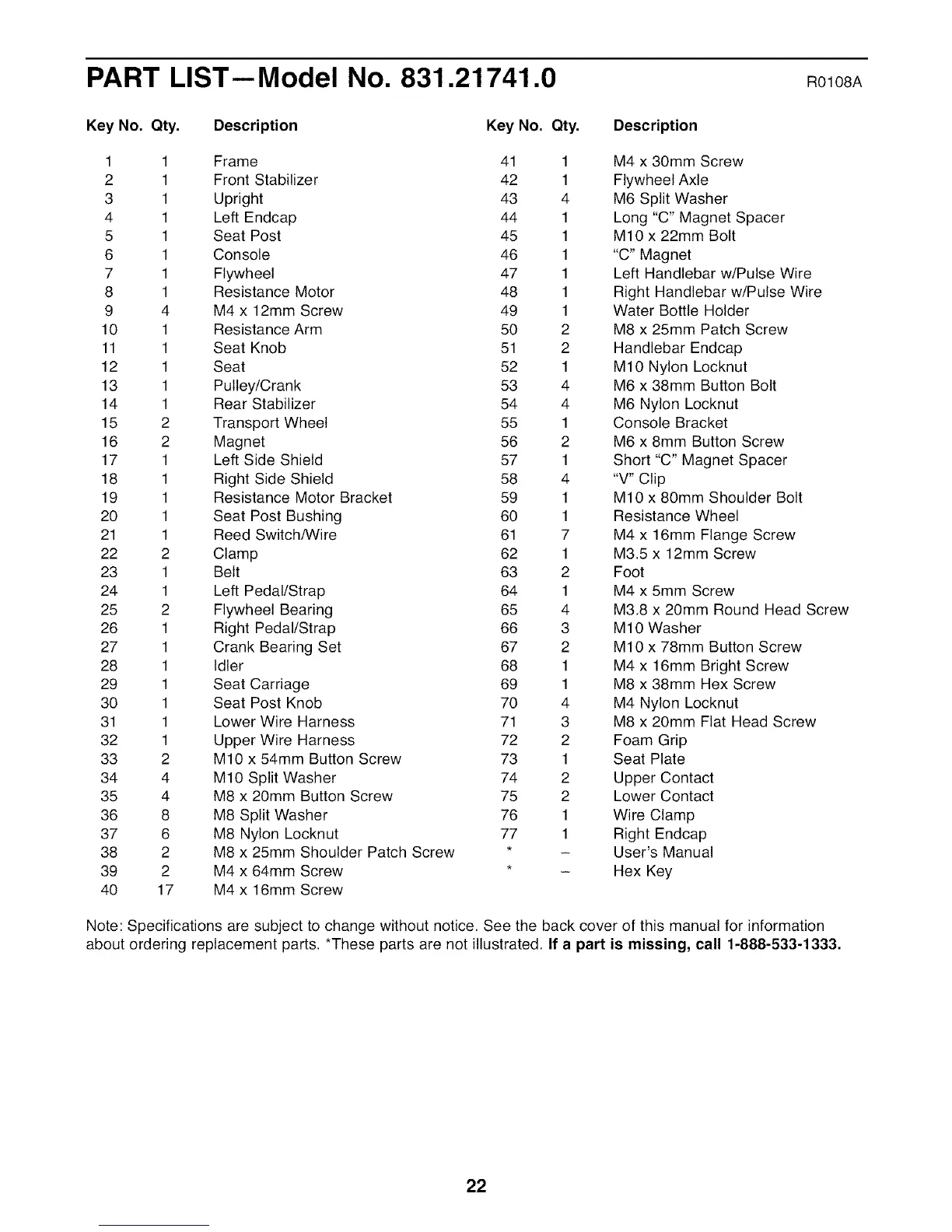

PART LIST--Model No. 831.21741.0 Rolo8A
Key No. Qty. Description Key No. Qty, Description
1 1 Frame 41 1
2 1 Front Stabilizer 42 1
3 1 Upright 43 4
4 1 Left Endcap 44 1
5 1 Seat Post 45 1
6 1 Console 46 1
7 1 Flywheel 47 1
8 1 Resistance Motor 48 1
9 4 M4 x 12mm Screw 49 1
10 1 Resistance Arm 50 2
11 1 Seat Knob 51 2
12 1 Seat 52 1
13 1 Pulley/Crank 53 4
14 1 Rear Stabilizer 54 4
15 2 Transport Wheel 55 1
16 2 Magnet 56 2
17 1 Left Side Shield 57 1
18 1 Right Side Shield 58 4
19 1 Resistance Motor Bracket 59 1
20 1 Seat Post Bushing 60 1
21 1 Reed Switch/Wire 61 7
22 2 Clamp 62 1
23 1 Belt 63 2
24 1 Left Pedal/Strap 64 1
25 2 Flywheel Bearing 65 4
26 1 Right Pedal/Strap 66 3
27 1 Crank Bearing Set 67 2
28 1 Idler 68 1
29 1 Seat Carriage 69 1
30 1 Seat Post Knob 70 4
31 1 Lower Wire Harness 71 3
32 1 Upper Wire Harness 72 2
33 2 M10 x 54mm Button Screw 73 1
34 4 M10 Split Washer 74 2
35 4 M8 x 20mm Button Screw 75 2
36 8 M8 Split Washer 76 1
37 6 M8 Nylon Locknut 77 1
38 2 M8 x 25mm Shoulder Patch Screw * -
39 2 M4 x 64mm Screw * -
40 17 M4 x 16mm Screw
M4 x 30mm Screw
Flywheel Axle
M6 Split Washer
Long "C" Magnet Spacer
M10 x 22mm Bolt
"C" Magnet
Left Handlebar w/Pulse Wire
Right Handlebar w/Pulse Wire
Water Bottle Holder
M8 x 25mm Patch Screw
Handlebar Endcap
M10 Nylon Locknut
M6 x 38mm Button Bolt
M6 Nylon Locknut
Console Bracket
M6 x 8mm Button Screw
Short "C" Magnet Spacer
"V" Clip
M10 x 80mm Shoulder Bolt
Resistance Wheel
M4 x 16mm Flange Screw
M3.5 x 12mm Screw
Foot
M4 x 5mm Screw
M3.8 x 20mm Round Head Screw
M10 Washer
M10 x 78mm Button Screw
M4 x 16mm Bright Screw
M8 x 38mm Hex Screw
M4 Nylon Locknut
M8 x 20mm Flat Head Screw
Foam Grip
Seat Plate
Upper Contact
Lower Contact
Wire Clamp
Right Endcap
User's Manual
Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-888-533-1333.
