Note 1: The adjustable LDon (LOAD ON) voltage is valid for CC, CR & CP operating
Modes. The adjusted LDon voltage will not operate in CV mode.
Note 2: The LDon (LOAD ON) voltage setting cannot be lower than the LDoff (LOAD
OFF) voltage. If 0V is required for both LOAD ON and LOAD OFF make the
LOAD OFF adjustment first.

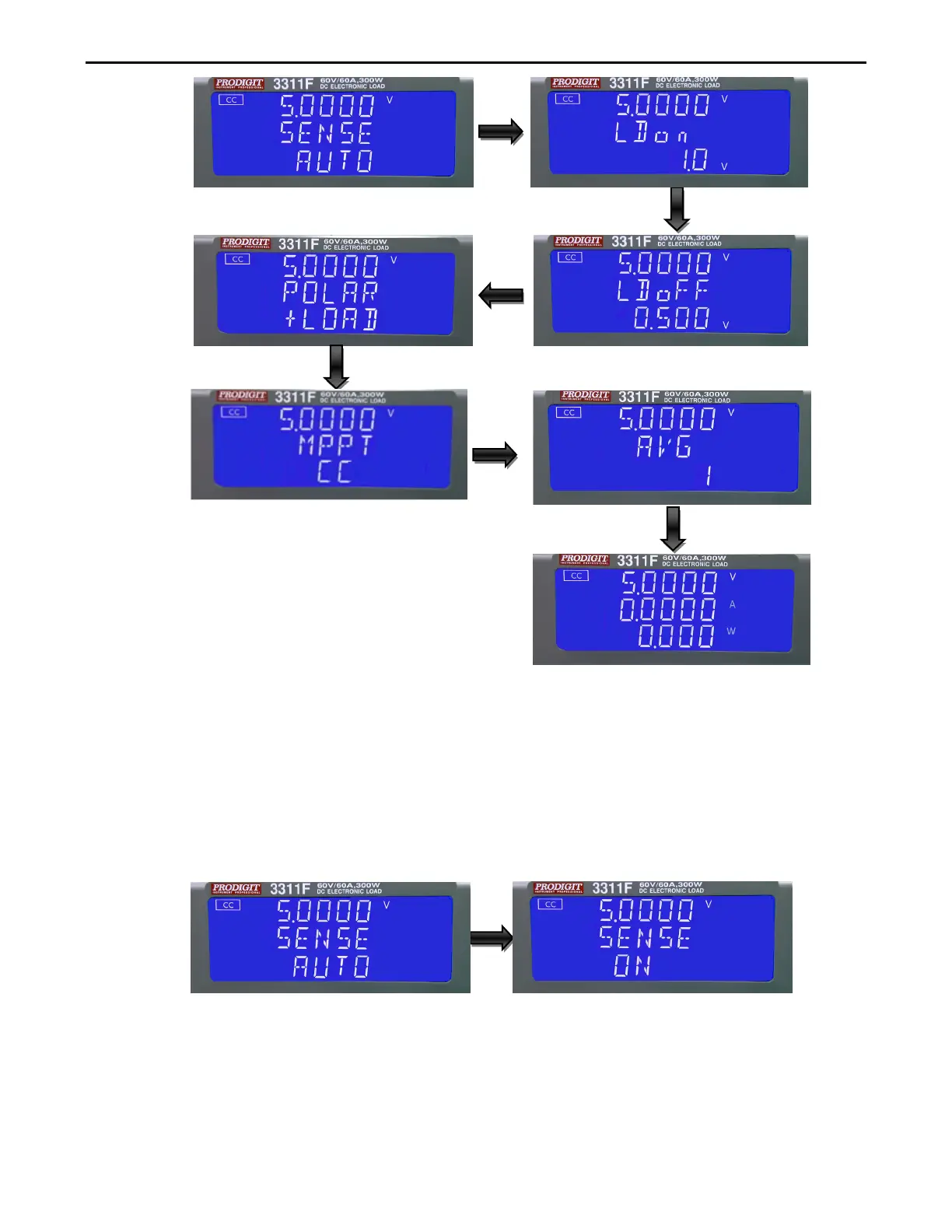

Setting Vsense and load input switching methods, the middle of the 5 digit LCD
display will show "SENSE", Lower 5 digit LCD display will show "AUTO" or
"ON".
Set Load ON voltage, the middle of the 5 digit LCD display will show "LDon",
Lower 5 digit LCD display will show setting value, the units is V, The Load ON
Voltage set range from 0.0V to 25.0V step 0.1V by rotating the setting knob. If
the load is greater than the input voltage Load ON voltage setting, the
Electronic load current begin to load on.
