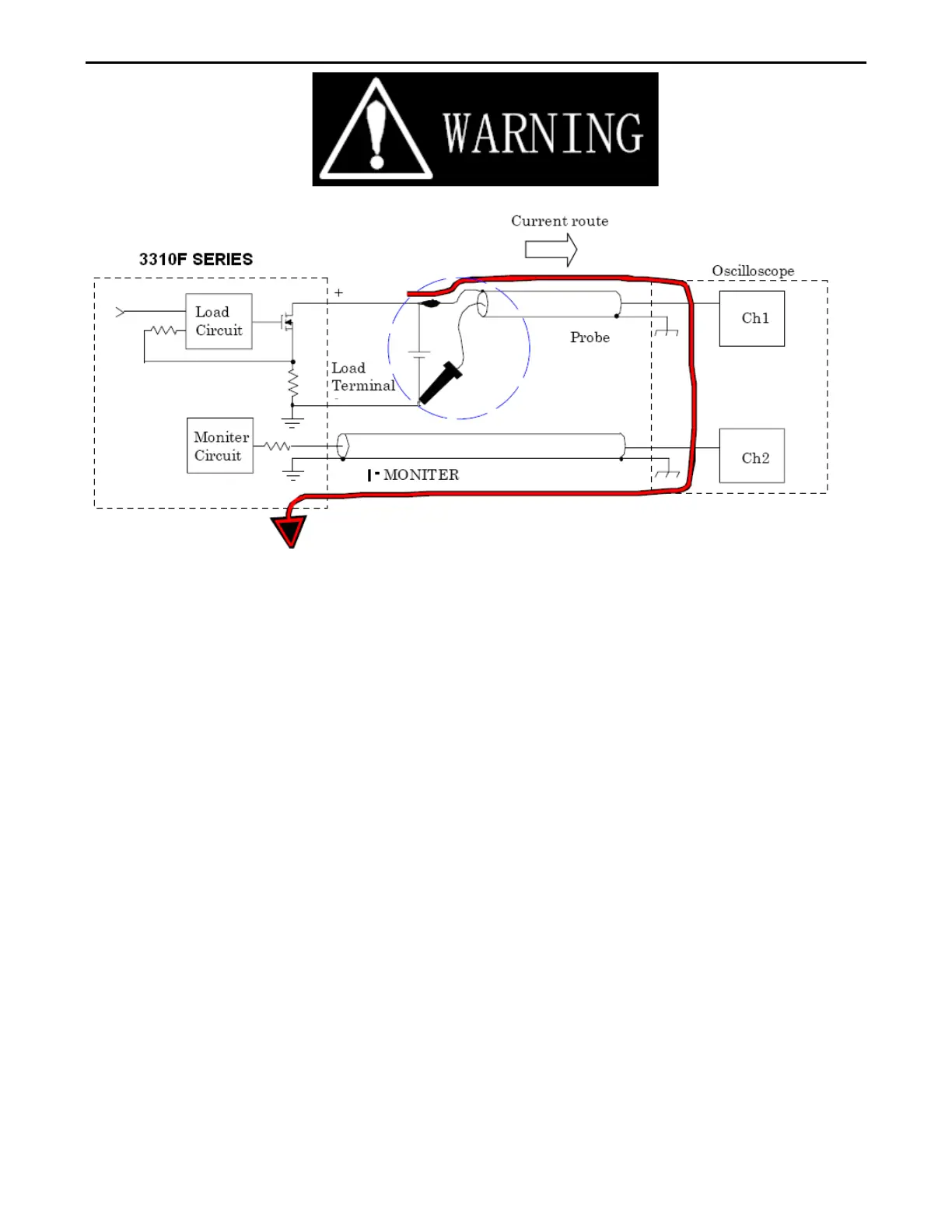

Fig 3-5 (Wrong) Connections to an oscilloscope

If the probes connection is reversed as shown in Fig 3-5, a large current would flow through the probe

and the internal circuitry of the oscilloscope is likely to be damaged.
