Prodigit 3310F Series - Fig 4-10 Zero-Volt Loading Connection

To Next Page

To Previous Page

3310F Series Operation Manual 69

4-9 Zero-Volt loading application

As shown in Fig 4-10, the Electronic load can be connected in series with a DC voltage

source which output voltage greater than 0.6V (3310F,3311F), 1V (3312F), 6V(3314F) or

0.3V(3315F) so that the device under test that are connected to the Electronic load can be

operated down to a Zero- Volt condition, the DC voltage source provides the minimum 0.6V

(3310F,3311F), 1V (3312F), 6V(3314F) or 0.3V(3315F) operating voltage required by the

Electronic load. This application is suitable for low voltage Battery cell with high discharge

current testing.

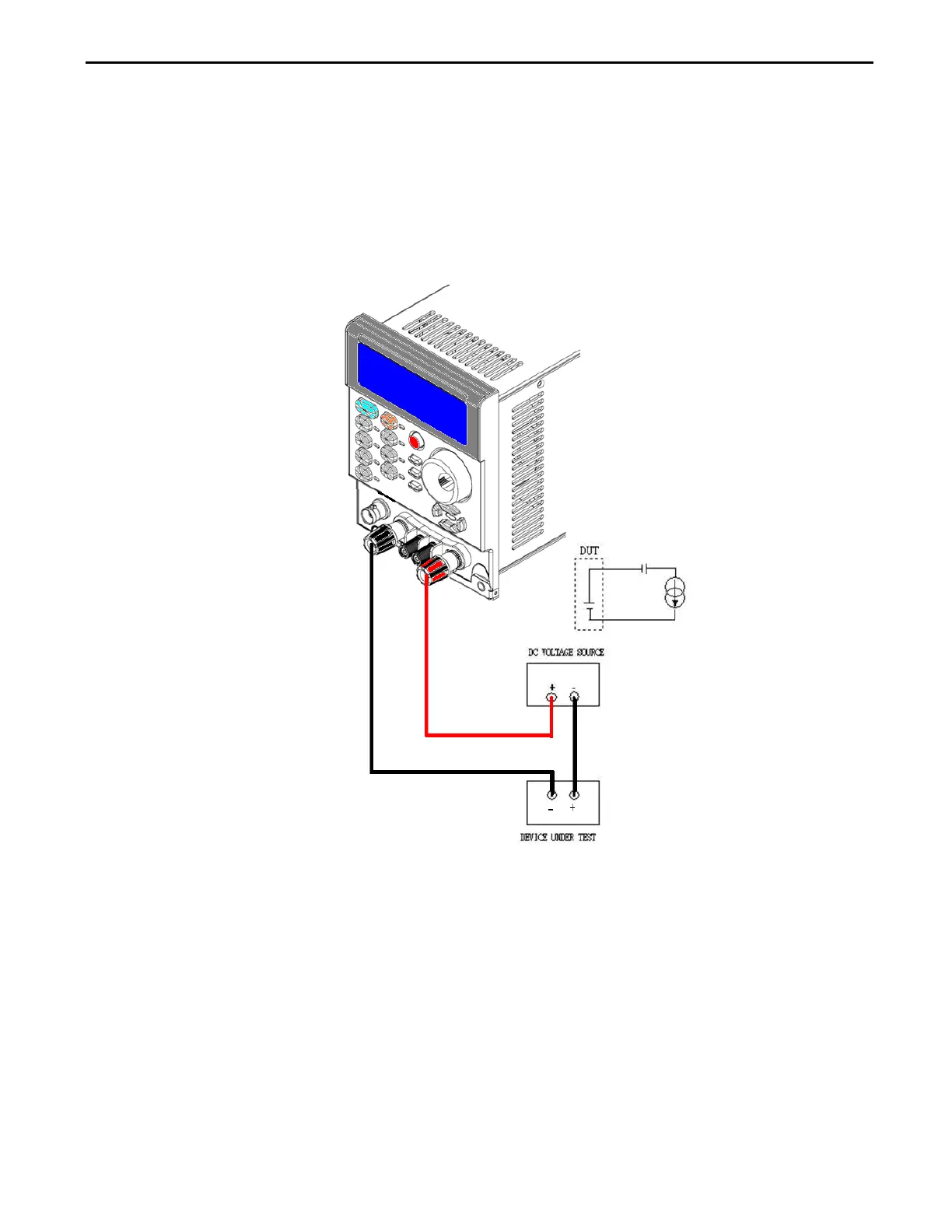

Fig 4-10 Zero-Volt loading connection
