Prodigit 3310F Series - Fig 4-5 Constant Voltage Mode Application

60 PRODIGIT
-
+
DC
+
-
CURRENT
SOURCE
ELECTRONIC
LOAD
CV MODE
INPUT
V
I
Lo
INPUT
VOLTAGE
CONSTANT VOLTAGE SETTING
A
B
C
A
B
C
V
I
CV SETTING
LOAD CURRENT
POWER SUPPLY CURRENT
LIMIT TESTING

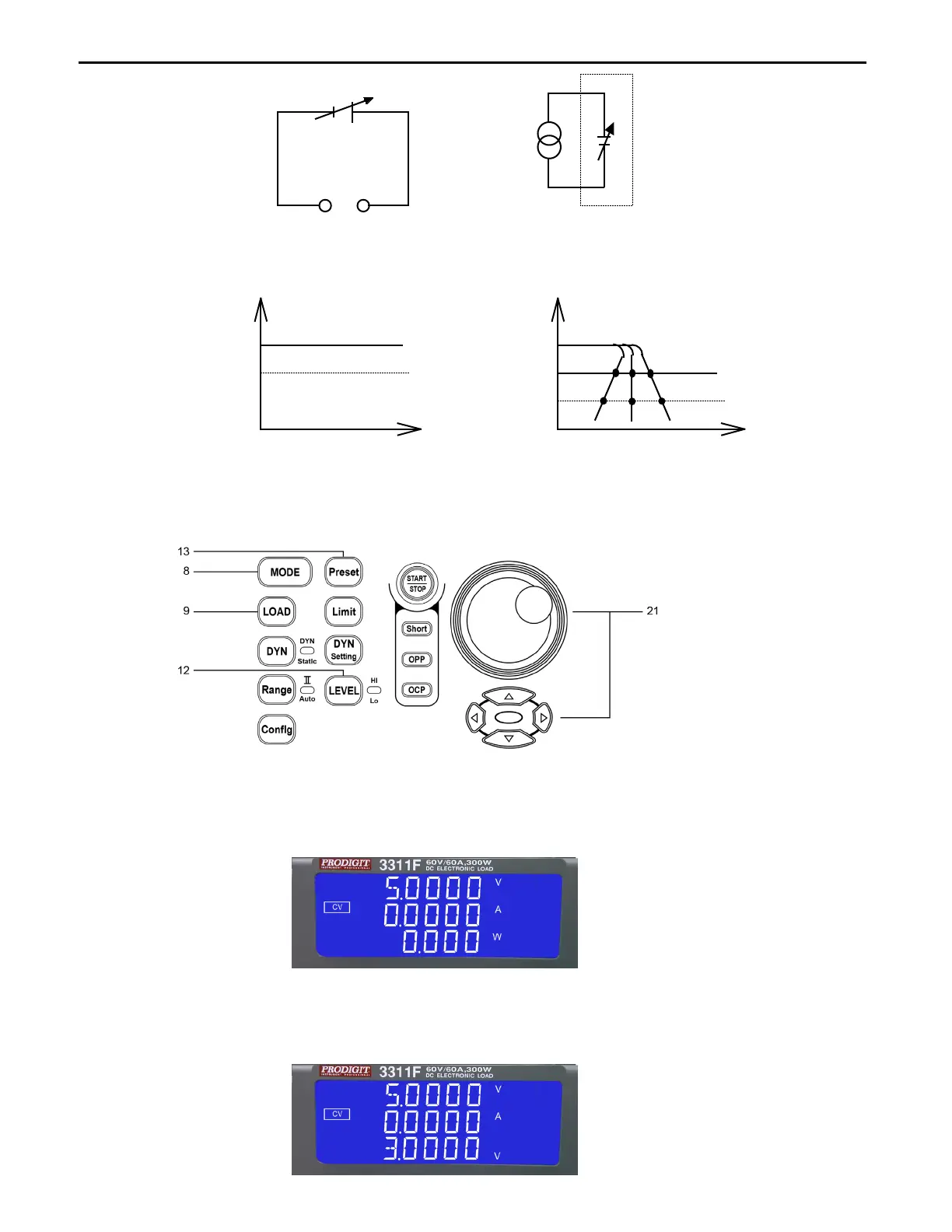

Fig 4-5 Constant Voltage mode application
4.4.3 CV Mode Operating Instructions
Example: PSU 5 V / 1A, CV mode, Level HI 4.000V, Level 3.000V
4.4.3.1. These can be selected in turn by pressing the "MODE" key (8), LCD will illuminate
According to the operating mode is selected CV.
4.4.3.2. Pressing the "Preset" Key (13) once will cause the button to illuminate.
4.4.3.2.1. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Lo,
Adjusted by the rotary knob and arrow key (21) can be read from the lower
Display during Setting 3.0000V.
