3310F Series Operation Manual 43

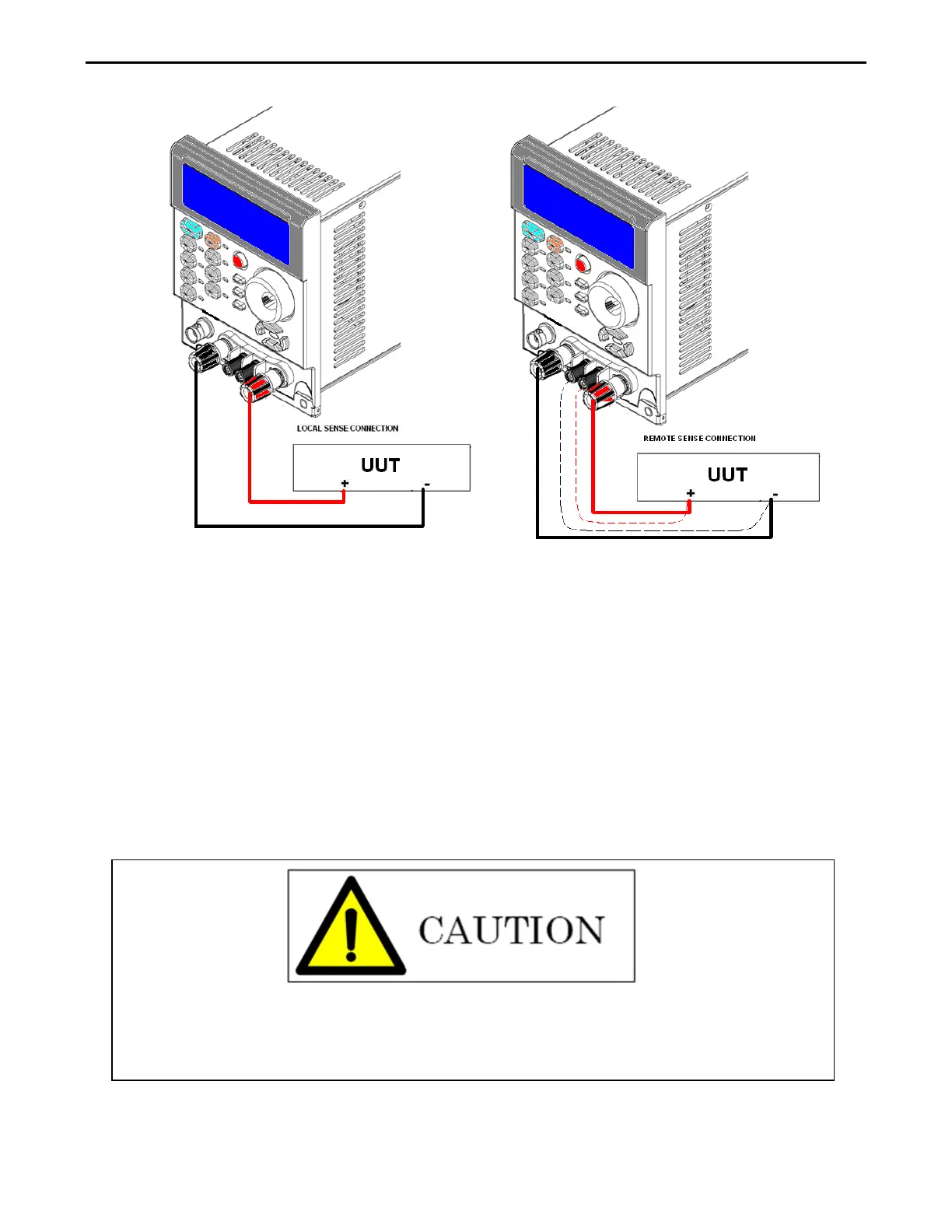

Fig 3-2 typical connection of 3310F series load module

3.2.24. I-monitor

The I-monitor is provided as a BNC socket. It is designed to enable the user to

Monitor the Electronic Load’s input current or short current. The I-monitor’s signal

Is 0V to 10V. This signal is proportional to the full scale current that the particular

Electronic Load module is capable of.

For example. 3311F: Imax = 60A therefore I-monitor 10V = 60A so 1V = 6A

Please refer to the specification Table 1-1 for the maximum current that each

3310F series module is capable of.

The current monitor of this unit is NOT isolated. Please be careful when you connect an

oscilloscope. Improper connections are likely to cause damage. Please follow the

connection rule on the following page.
