58 PRODIGIT

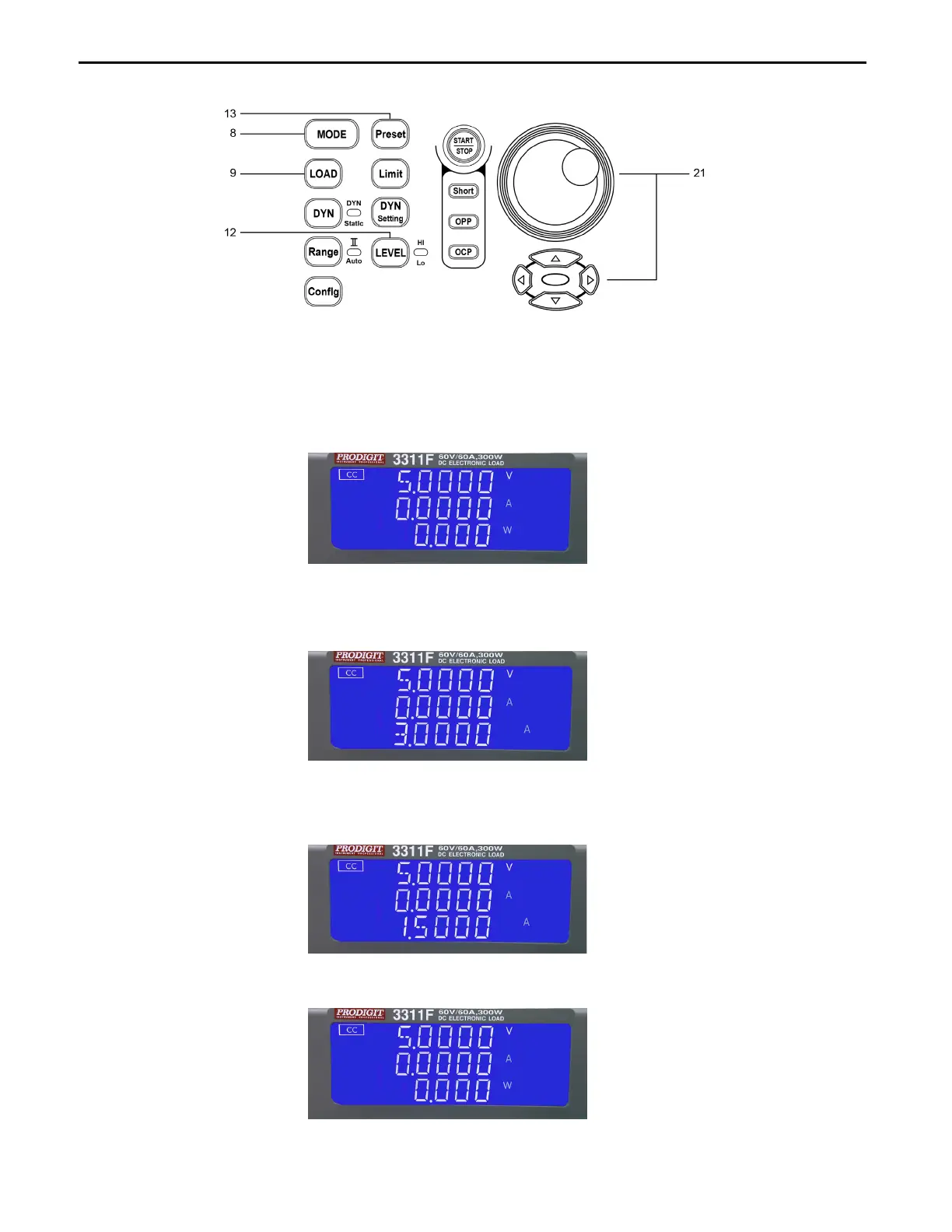

4.3.4 CC Mode Operating Instructions
Example: PSU 5 V / 3 A, CC mode, Level HI 3.000A, Level 1.500A
4.3.4.1 . These can be selected in turn by pressing the "MODE" key (8), LCD will illuminate
According to the operating mode is selected CC.
4.3.4.2 . Pressing the "Preset" Key (13) once will cause the Button to illuminate.
4.3.4.2.1. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Hi, adjusted
By The rotary knob and arrow key (21) can be read from the lower display during
Setting 3.0000 A.
4.3.4.2.2. Pressing the LEVEL key (12) LED once will off, Select LEVEL Lo, adjusted by the
Rotary knob and arrow key (21) can be read from the lower display during setting
1.5000A.
4.3.4.3 . Pressing the "Preset" Key (13) LED once will cause the button to off, Leave setting mode.
