66 PRODIGIT

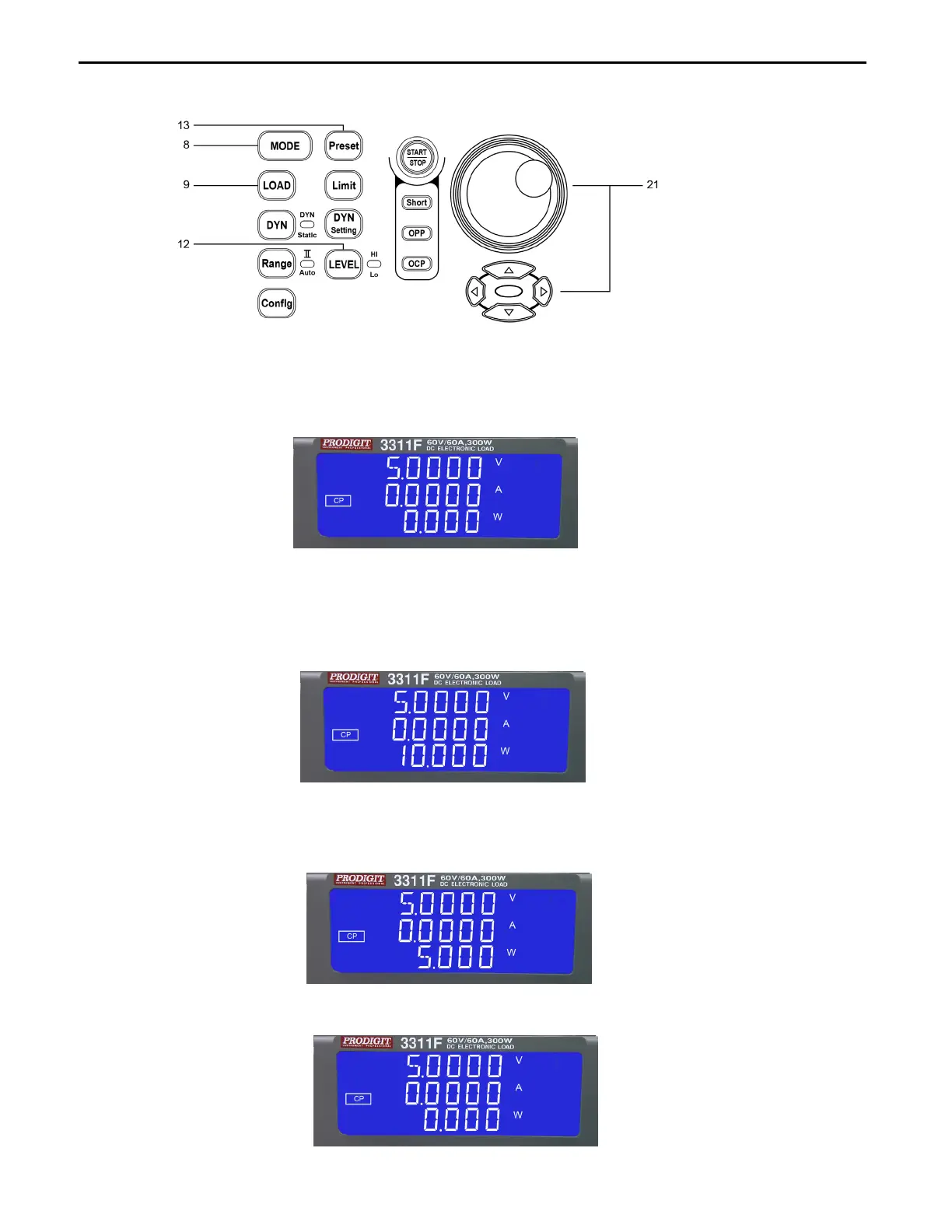

4.6.2. CP Mode Operating Instructions
Example: PSU 5 V / 3 A, CC mode, Level HI 10.00W, Level 5.000W
4.6.2.1. These can be selected in turn by pressing the "MODE" key (8), LCD will illuminate
According to the operating mode is selected CP.
4.6.2.2. Pressing the "Preset" Key (13) once will cause the button to illuminate.
4.6.2.2.1. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Hi,
Adjusted by the rotary knob and arrow key (21) can be read from the lower
Display during Setting 10.000W.
4.6.2.2.2. Pressing the LEVEL key (12) LED once will illuminate, Select LEVEL Hi,
Adjusted by the rotary knob and arrow key (21) can be read from the lower
Display during Setting 5.000W.
4.6.2.3. Pressing the "Preset" Key (13) LED once will cause the button to off, Leave setting
Mode.
