13

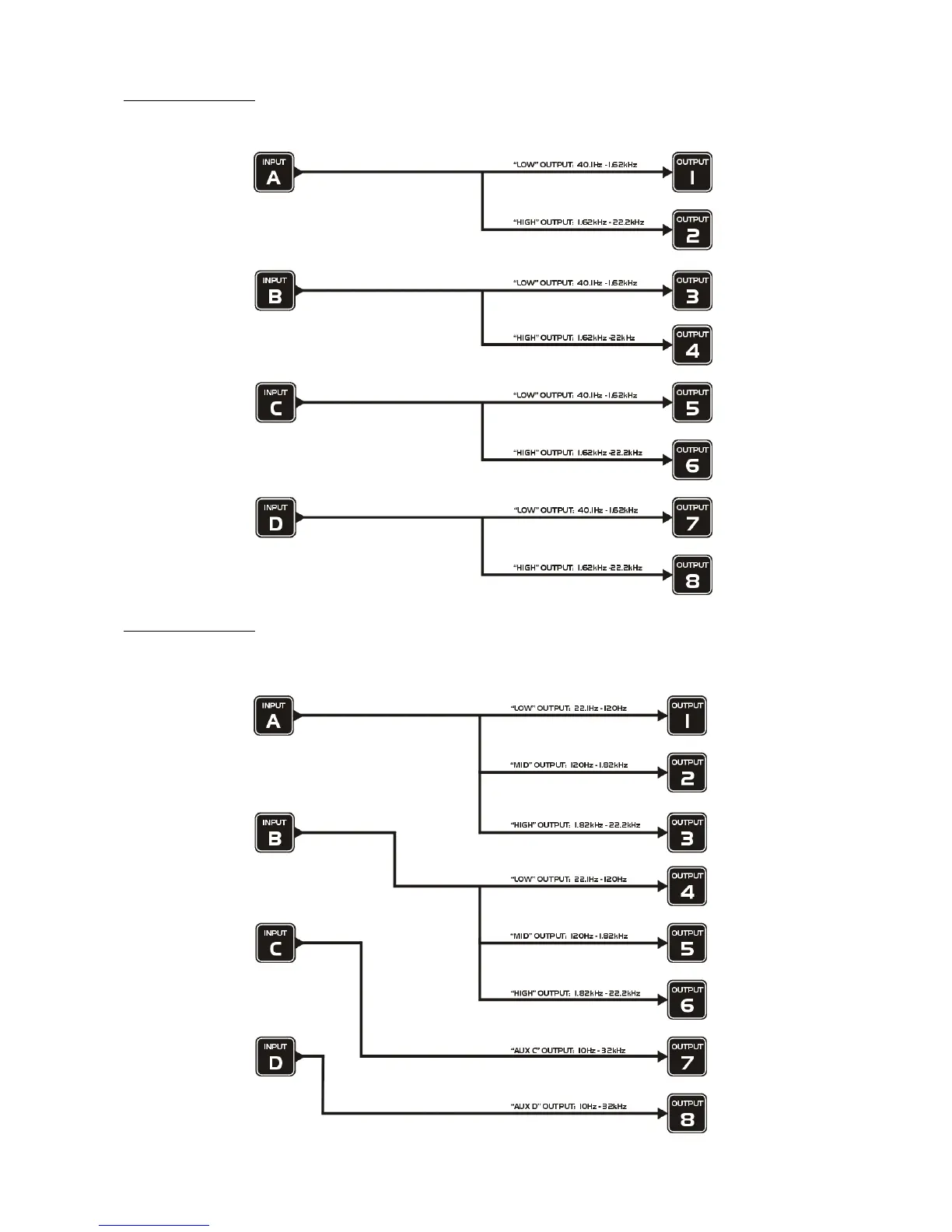

4x2waycrossover:Asshown,eachinputfeedsapairofoutputs,oddnumbersbeingthelowfrequency
split,andevennumbersbeingthehighpartofthespectrum.Defaultsuggestedcrossoverfrequenciesare
shownbyeachoutput.

 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

2x3waycro
ssover:
InputsAandBfeedthreeoutputseach,withoutput7beingfedfrominputC,and
output8frominputD.Notethe‘Aux’outputsaresettofullrange.Defaultsuggestedcrossover
frequenciesareshownbyeachoutput.

