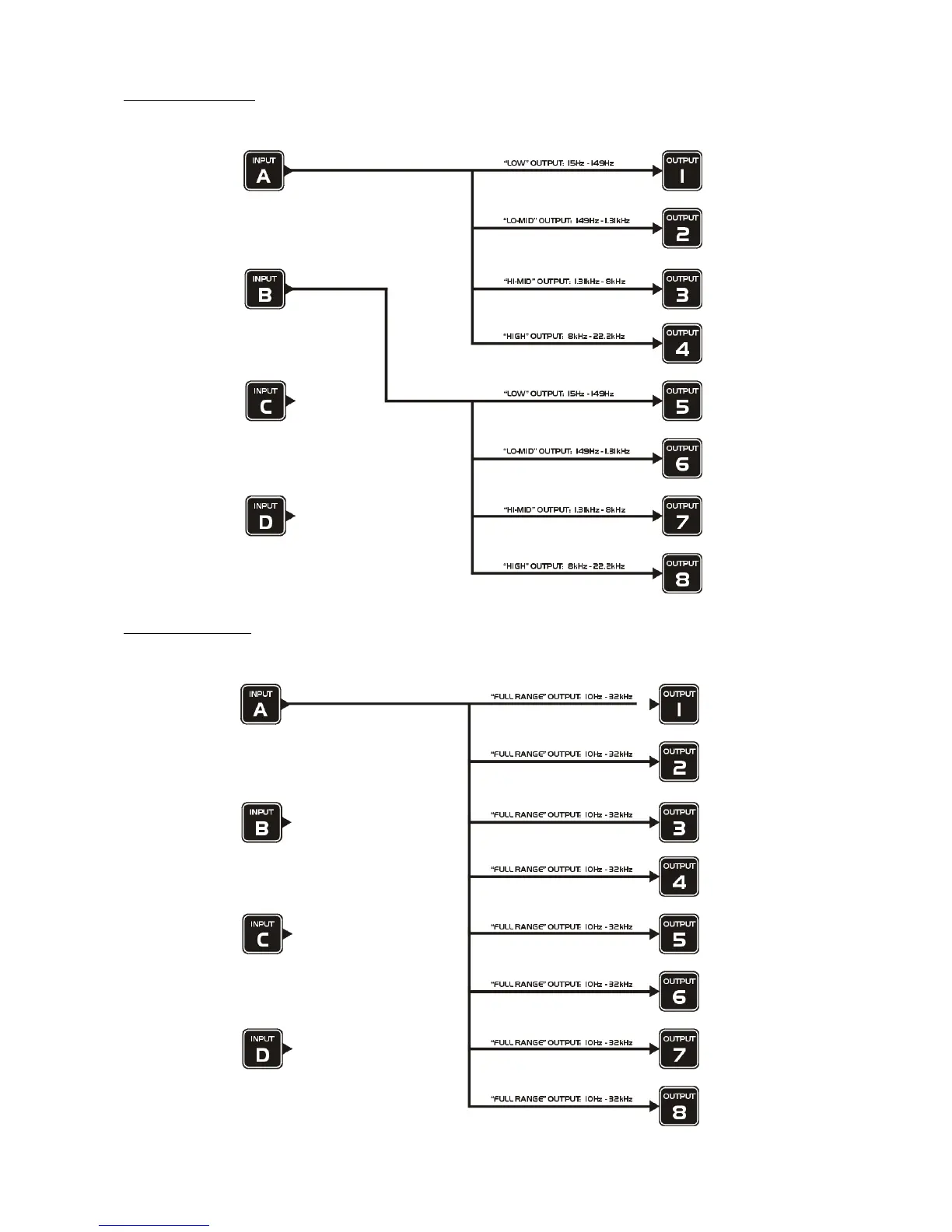

2x4waycrossover:InputsAandBfeedfouroutputseach,withinputsC&Dbeingunused.Default
suggestedcrossoverfrequenciesareshownbyeachoutput.

 


 
 
 

1x8waycrossover
:InputsAisfedtoalleightoutputs,withinitialsettingsbeingallfullbandwidth.The
crossoverpointscanbeadjustedasdesired.

 
 
