14 Appendix
14.1 Dimensional Drawings
F
E
92 / 102
10 / 15
K
L
M
10.85
81 / 85
131.5 / 135.5
80
95 / 101
41 / 36
148 / 153
P_BE_0019_SW

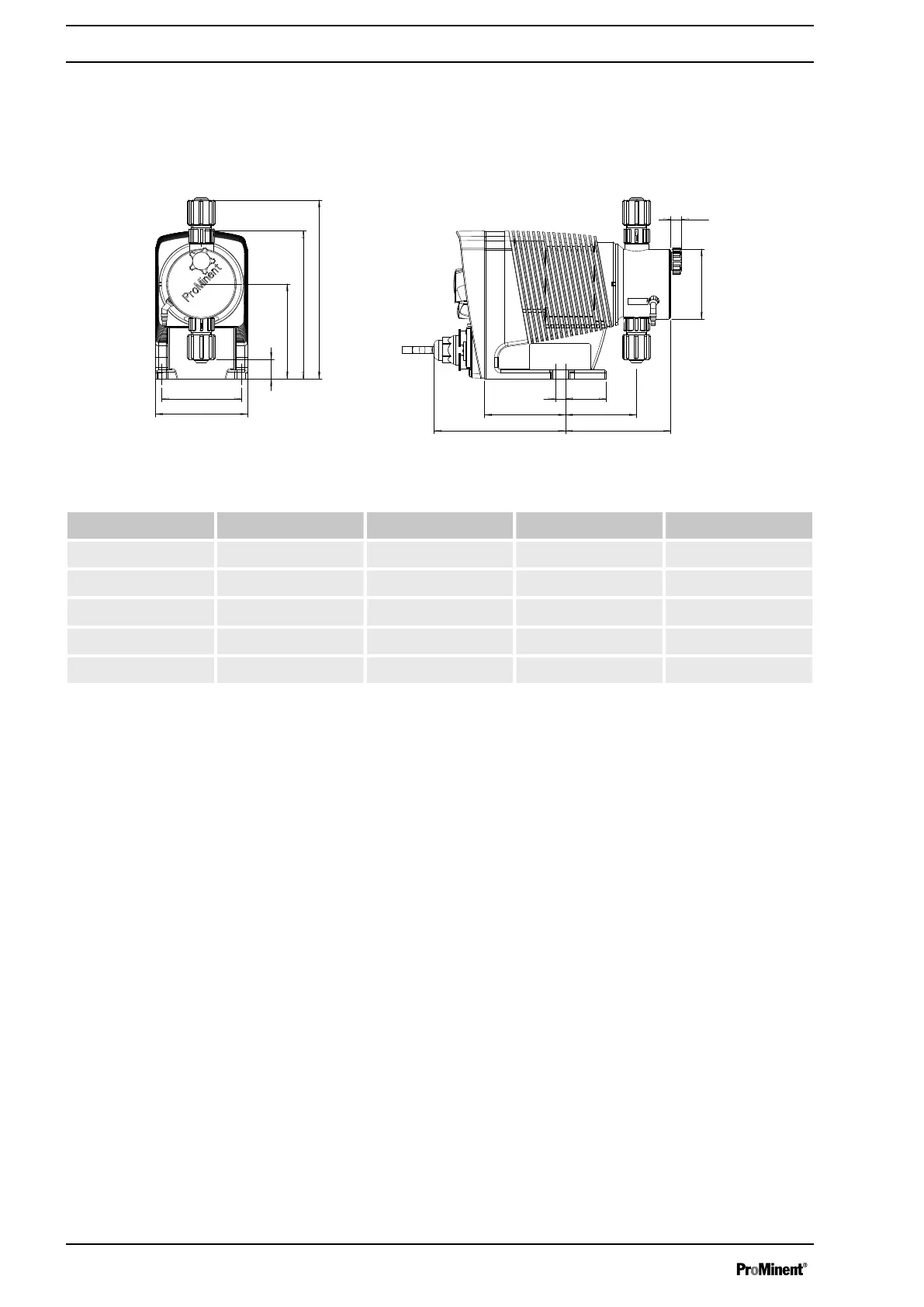

Fig. 13: Dimensional drawing of Beta
®
BT4b/BT5b, PP material version - dimensions in mm
1000 - 1604 0708 - 0220 1008 - 0420 0232
E 19.5 7 14 1.5
F 179 186.5 191.5 200.5
K 71 77.5 74 77.5
L 105.5 111 107.5 94.5
M Ø 70 Ø 90 Ø 90 Ø 110
Dimensional drawing of Beta
®
b, PP
material version
Appendix
46
