14.3 Exploded Views of Liquid Ends
1
5
1
8
6
2
2
3
4
7
P_BE_0038_SW

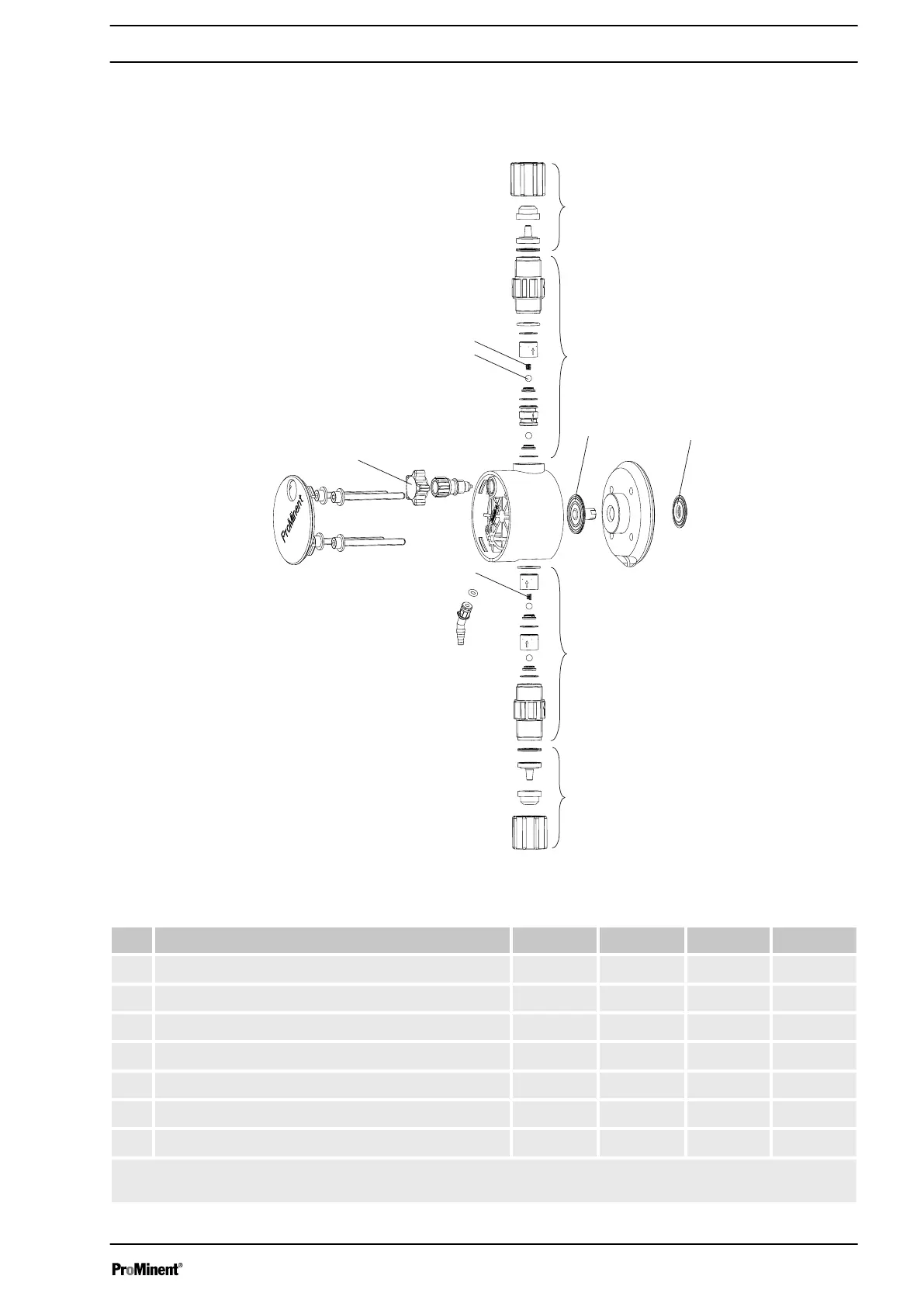

Fig. 23: Beta
®
1000 - 1604 PP liquid end with bleed valve
Pos. Description Type 1000 Type 1601 Type 1602 Type 1604
1 Connector kit 6/4 PVT 1023246 1023246 1023246 1023246
3 4 Valve balls 404201 404201 404201 404201
4 Bleed valve 1021662 1021662 1021662 1021662
5 Discharge valve, compl. 4.7-2 PVT 1023127 1023127 1023127 1023127
6 Diaphragm 1000244 1000245 1000246 1034612
7 Safety diaphragm 1027414 1027414 1027414 1027414
8 Suction valve, compl. 4.7-2 PVT 1023128 1023128 1023128 1023128
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
1000 - 1604 PP liquid end with
bleed valve
