38
Fuse change D1C W:
• The above-specified safety measures must be implemented (disconnection from mains!) before replacing
the device fuse:
The mains power fuse is located in a closed fuse holder (6) in the terminal box.
Open device and set in “park position”
Release bayonet catches of fuse holder
Remove fuse and replace by new fuse
Lock bayonet catch and close housing
Maintenance / Repair
6534
2
1
DED1C1W010

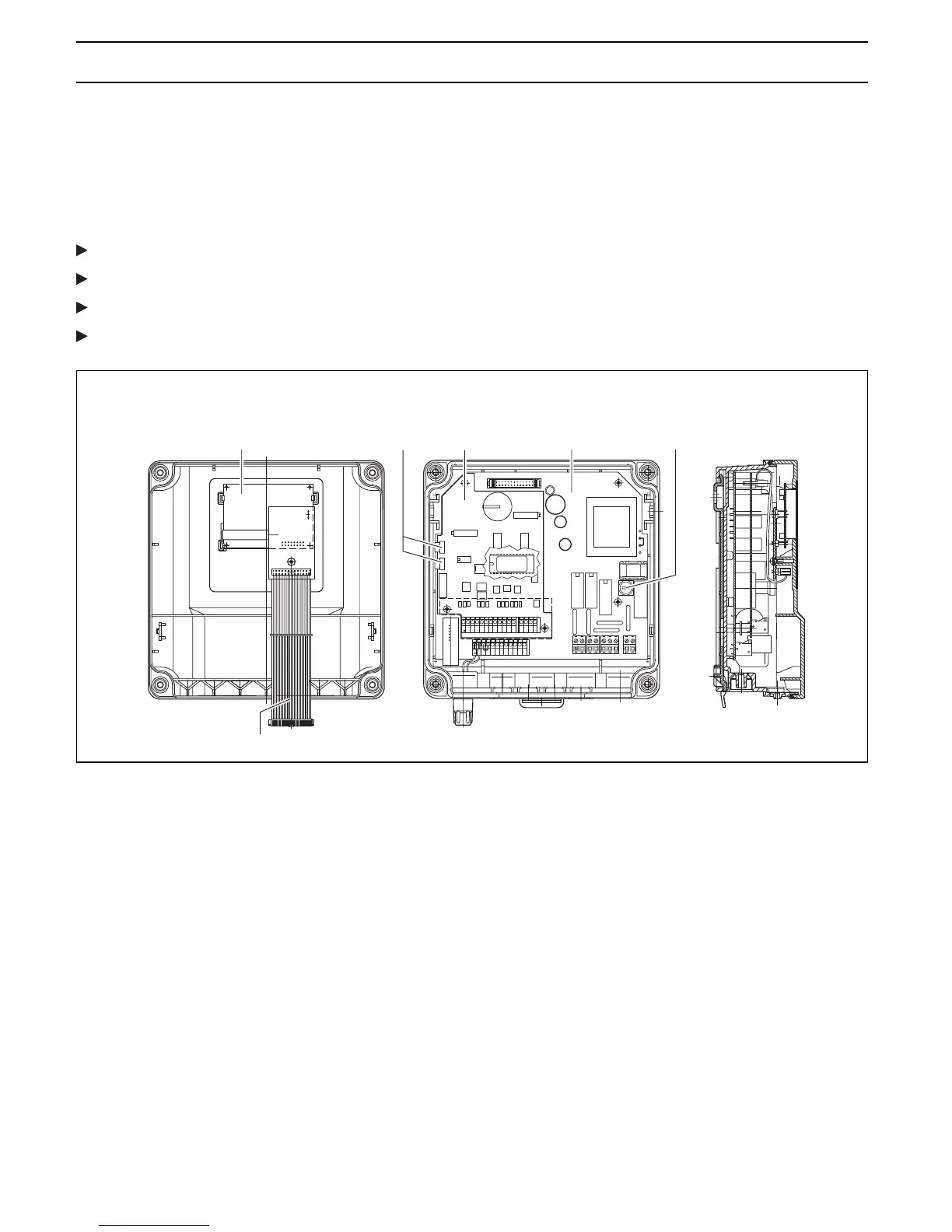

Upper section of housing
inside
Lower section of housing
inside
Sectional
side view
Item (1) Electrical assembly, display Item (4) Ribbon cable
Item (2) Ribbon cable Item (5) Electrical assembly, processor
Item (3) Electrical assembly I/O/S Item (6) Fuse holder
