Reference MVI56E-MCM ControlLogix Platform
User Manual Modbus Communication Module
Page 182 of 209 ProSoft Technology, Inc.

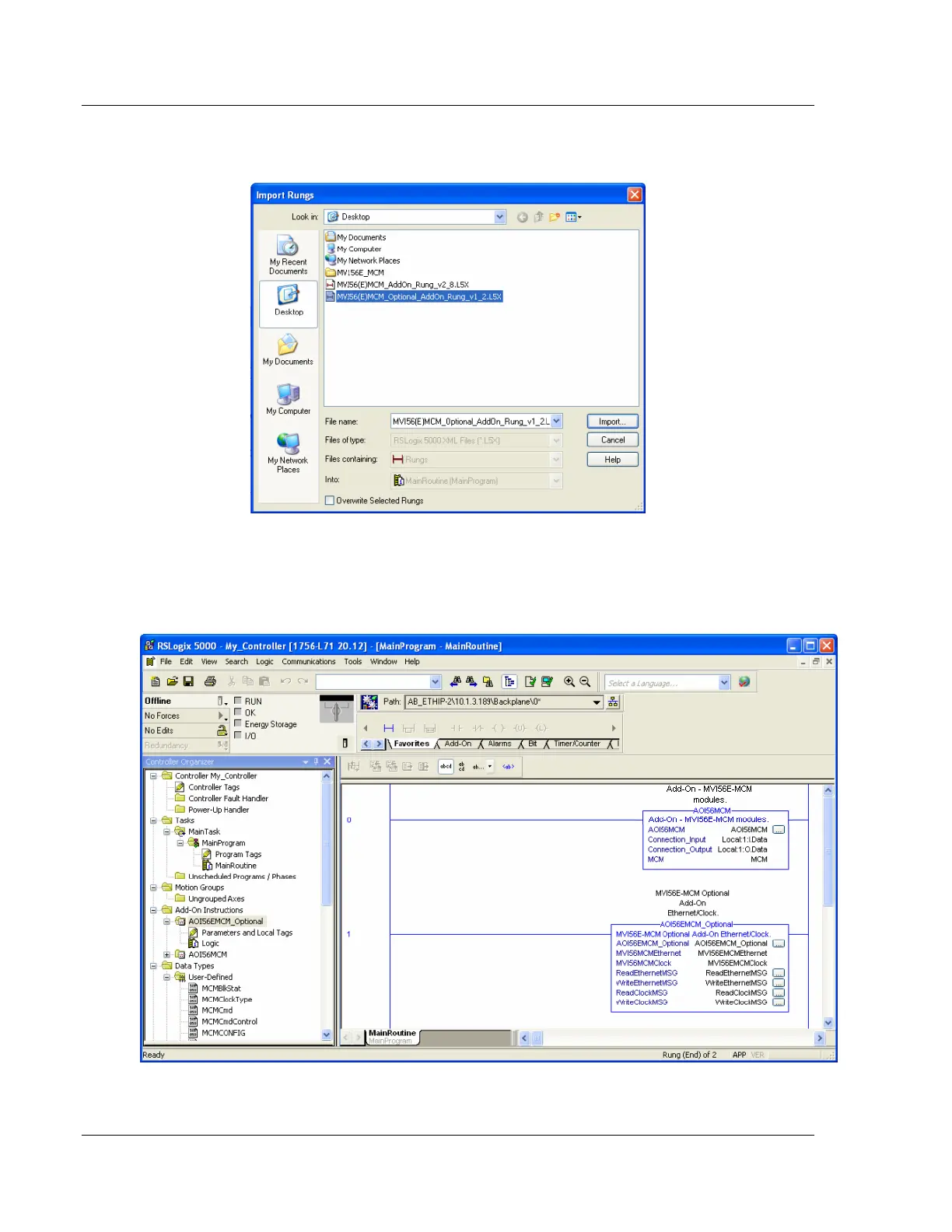

2 Navigate to the folder where you saved
MVI56(E)MCM_Optional_AddOn_Rung_v1_2.L5X and select the file.
3 In the IMPORT CONFIGURATION window, click OK.
The Add-On Instruction is now visible in the ladder logic. Observe that the
procedure has also imported data types and controller tags associated to the
Add-On Instruction.
