MVI56E-MCM ♦ ControlLogix Platform Reference
Modbus Communication Module User Manual
ProSoft Technology, Inc. Page 183 of 209

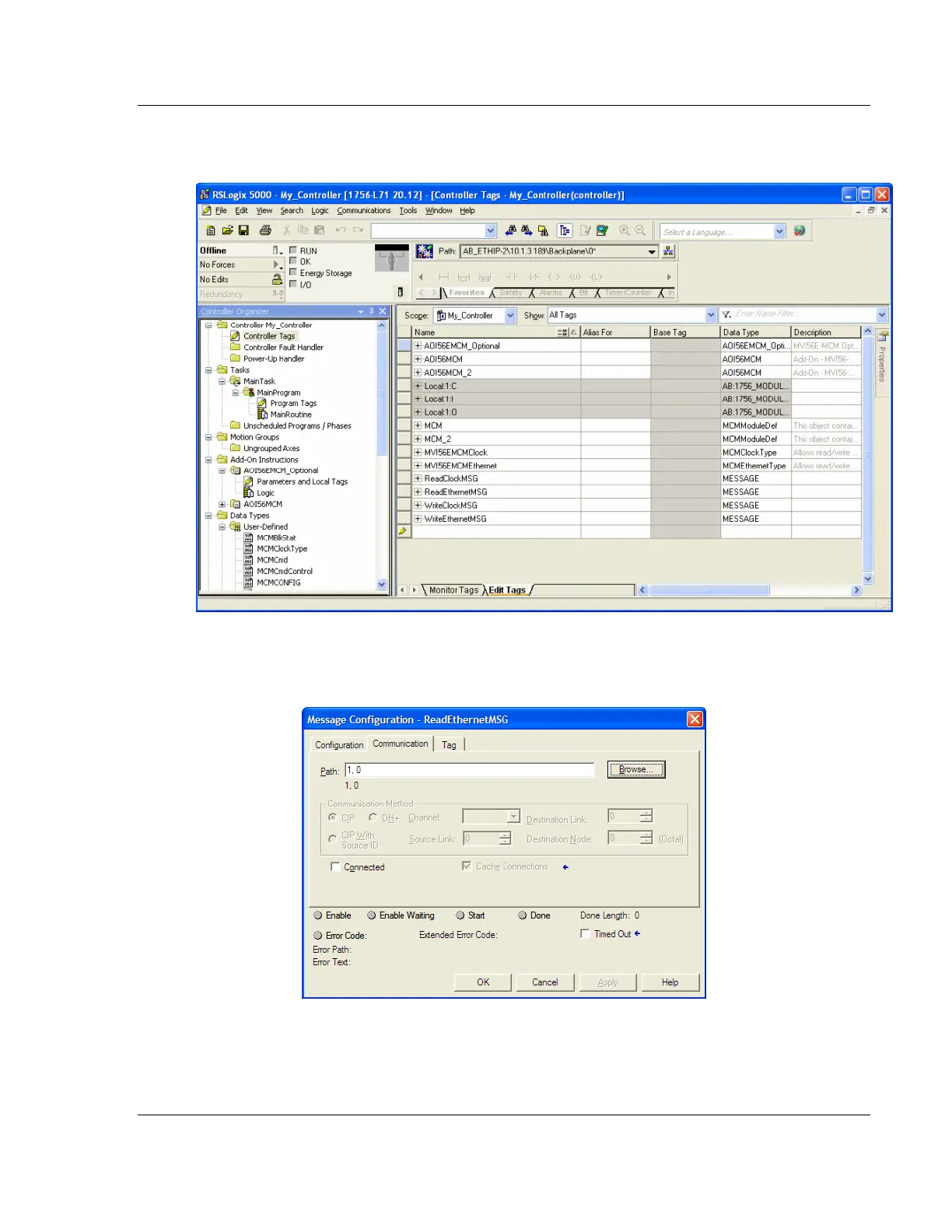

You will notice that new tags have been imported: four MESSAGE tags,
MVI56MCMCLOCK and MVI56MCMETHERNET tags.
4 In the Add-On Instruction click the [...] button next to each MSG tag to open
the MESSAGE CONFIGURATION TAG.
5 Click the COMMUNICATION tab and click the BROWSE button as follows.
