2 In the SELECT MODULE TYPE dialog box, select 1756-MODULE (GENERIC 1756
MODULE) from the list and, and then click OK. This action opens the MODULE
PROPERTIES dialog box.

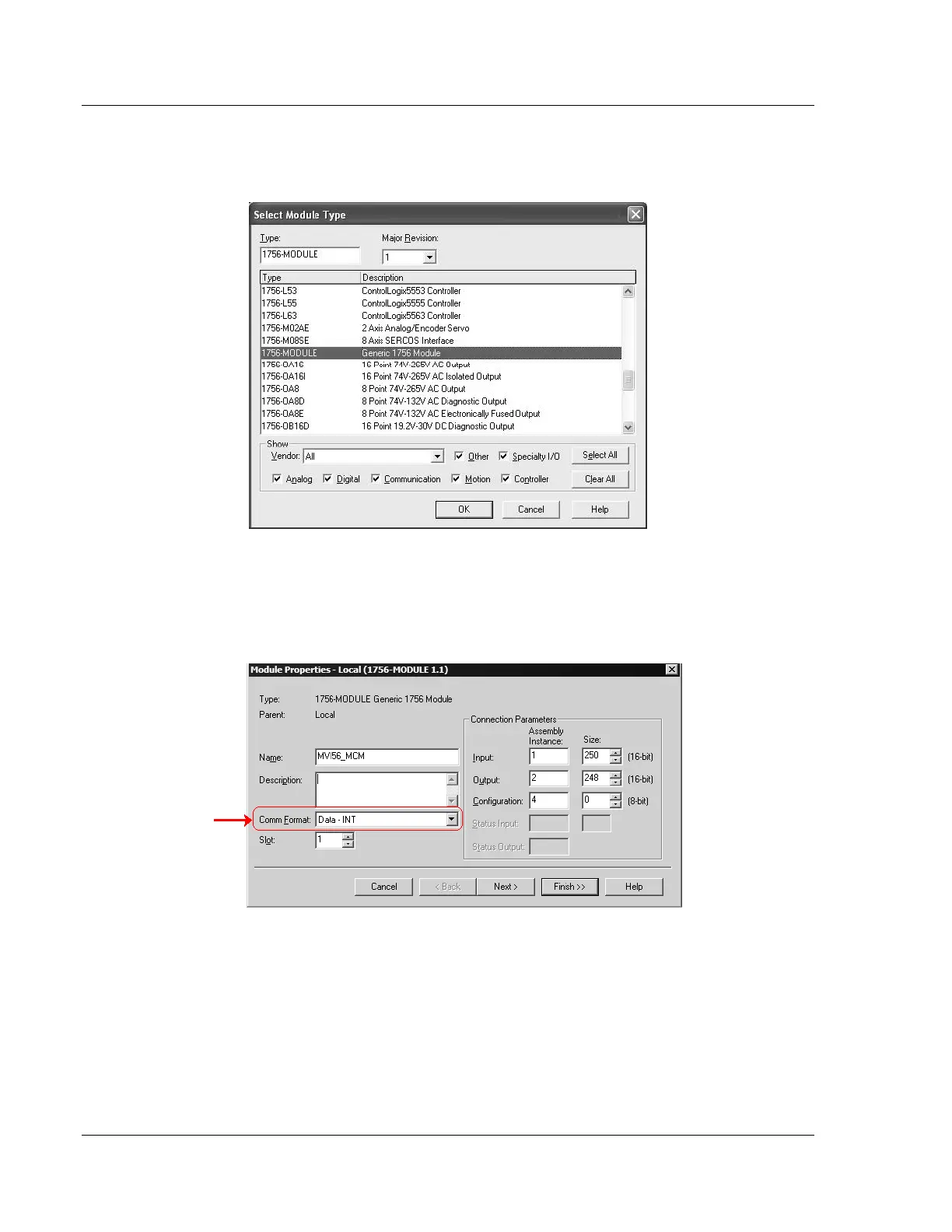

3 In the MODULE PROPERTIES dialog box, enter the Name, Description and Slot
options for your application, using the examples in the following illustration.
You must select the Comm Format as DATA - INT in the dialog box. Failure to
set the correct parameters will result in backplane communication problems
between the module and the processor.
