N.C.
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
12Vdc
24Vdc
24Vca
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
12Vdc
24Vdc
24Vca
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
N.C.
JP4 JP5 JP6
N.C.
N.C.
8 Q81A_5_2021

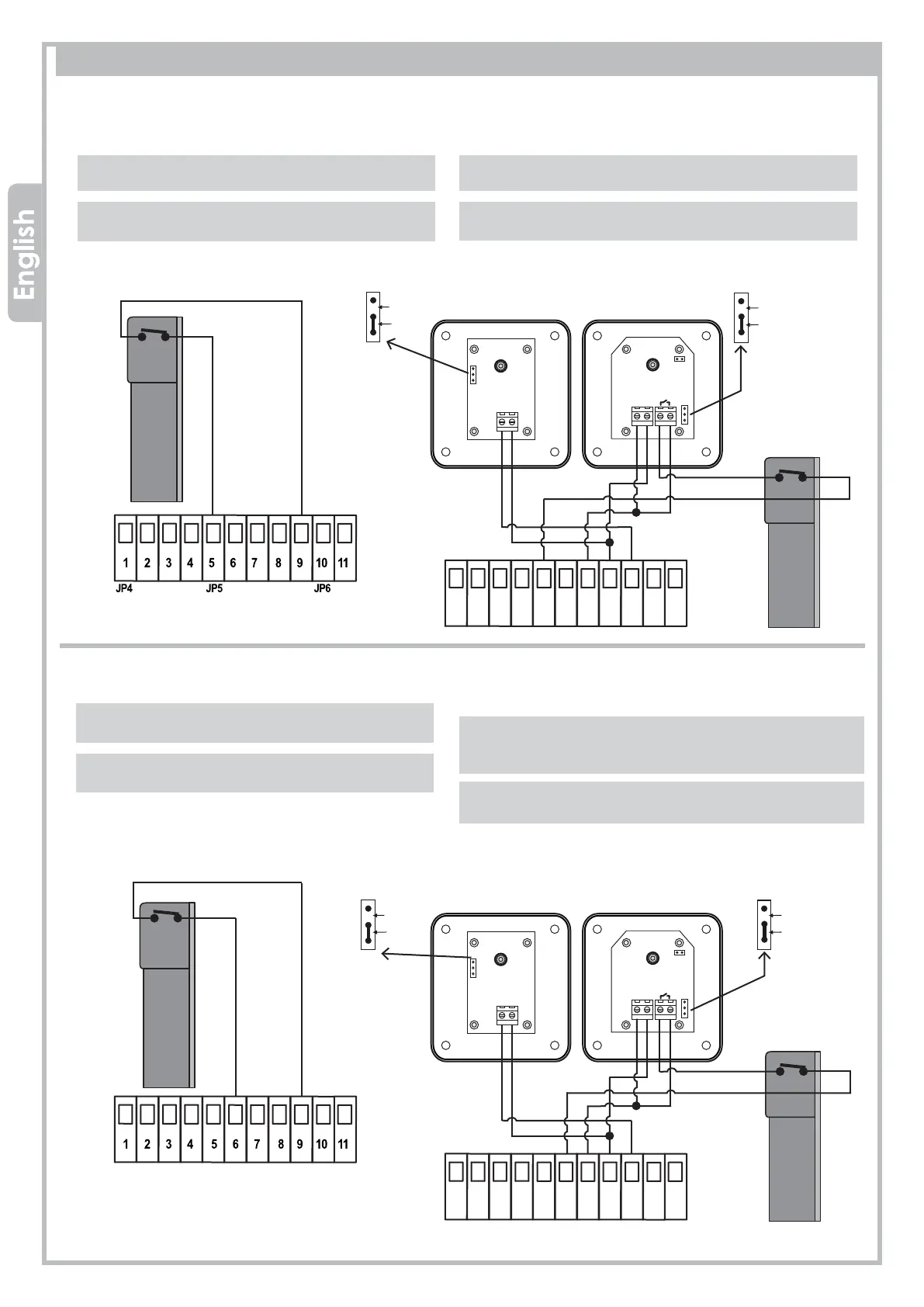

3.7 SAFETY EDGE
3.7.1 Mechanical safety edge in CLOSING
Wire the safety edge to 5-9, terminal JP5.
If the contact is broken during CLOSING,
the gate stops and reverses.
If the contact is broken during OPENING,
the gate keeps on working normally
Mechanical safety edge + photocells in CLOSING
Wire the safety edge and the N.C. contact of the photocell
in series.
If the contact is broken during CLOSING, the gate stops
and reverses.
If the contact is broken during OPENING, the gate
keeps on working normally
3.7.2 Mechanical safety edge in OPENING
Wire the safety edge to 6-9, terminal JP5.
If the contact is broken during OPENING,
the gate stops and reverses after 3 sec.
If the beam is broken during CLOSING, the gate
stops and reverses.
Mechanical safety edge + photocells in OPENING
Wire the safety edge and the N.C. contact of the
photocell in series.
If the beam is broken during OPENING, the gate
stops until the obstacle is removed and then starts
opening again.
If the beam is broken during CLOSING, the gate
stops and reverses.
N.B.: Attention!
Proceed to set SW2 dip-switch no. 2 = ON.
N.B.: Attention!
Adjust SW2 dip-switch no. 2 = OFF
