Proteco myGate Q81A User Manual

M1 M2
230V
- +
- +
TX RX
- +
- +
TX RX
Q81A_5_2021 3
24Vac
230Vac
F2
J5
JP7
JP8
JP9
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
JP1
JP2 JP3
TR2
POWER
230Vac
5A
230Vac
DL1
- + - +
SENS POWER
K4
K2
K3
- + - +
V1
FR1
SET SET TX
WORK BREAK
21 22
SW1 SW2
DL2 DL3
START STOP PED
DL4 DL5 DL6 DL7 DL8
FR2
J1
1 2 3 4 5 6 7 8 9
JP4 JP5
LIVE
NEUTRAL
EARTH
OPEN
CLOSE
CAPACITOR CAPACITOR
FLASHING LIGTH 24V ac MAX 20w
PEDESTRIAN
STOP
START
NEUTRAL
CLOSING
PHOTOCELL
OPENING
PHOTOCELL
PHOTOCELL CLOSING
PHOTOCELL OPENING
-24V RX
+24V TX/RX
TRANSFORMER
230V / 21V
RED
RED
BLACK
BLACK
-24V TX
3. ELECTRICAL CONNECTIONS
CIRCUIT
BREAKER
CLOSE
OPEN
NEUTRAL NEUTRAL
COMMON
MOTOR
1 TO OPEN

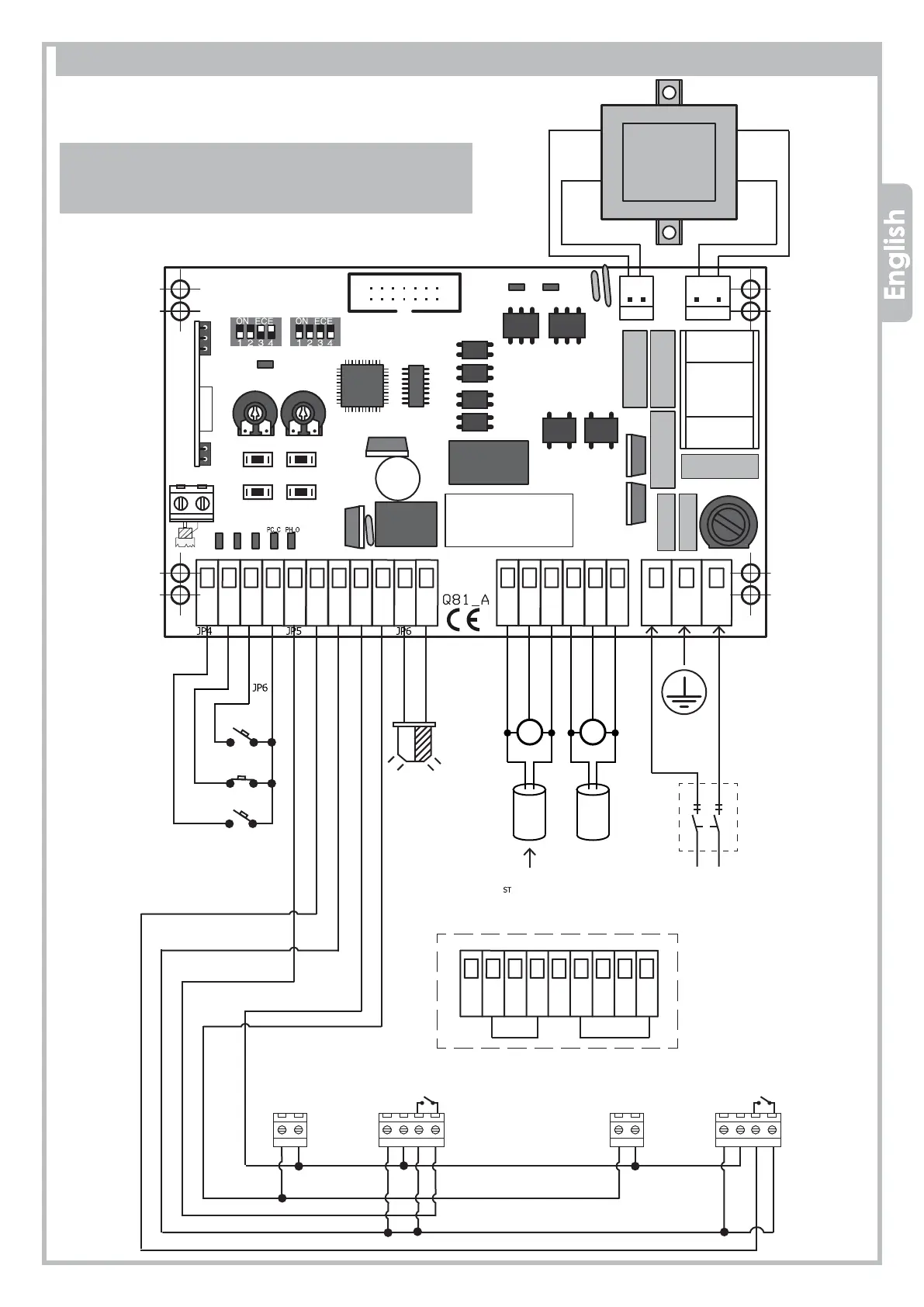

WIRING DIAGRAM FOR 230Vac operators
N.B.:
ALL SAFETY DEVICES MUST BE CONNECTED BEFORE STARTING
PROGRAMMING, OTHERWISE THE CONTROL PANEL SHALL
THE CONTROL UNIT COMES
FROM MANUFACTURER PRE-WIRED
AS FOLLOWS
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

Proteco myGate Q81A Specifications

General

Brand	Proteco
Model	myGate Q81A
Category	Control Panel
Language	English
