Proteco myGate Q81A User Manual

JP4
JP5
JP6

JP4
JP5
JP6
JP4
JP5 JP6
JP4
JP5 JP6
JP9
230V
6 Q81A_5_2021
CIRCUIT
BREAKER
PHASE
NEUTRAL
PEDESTRIAN
START

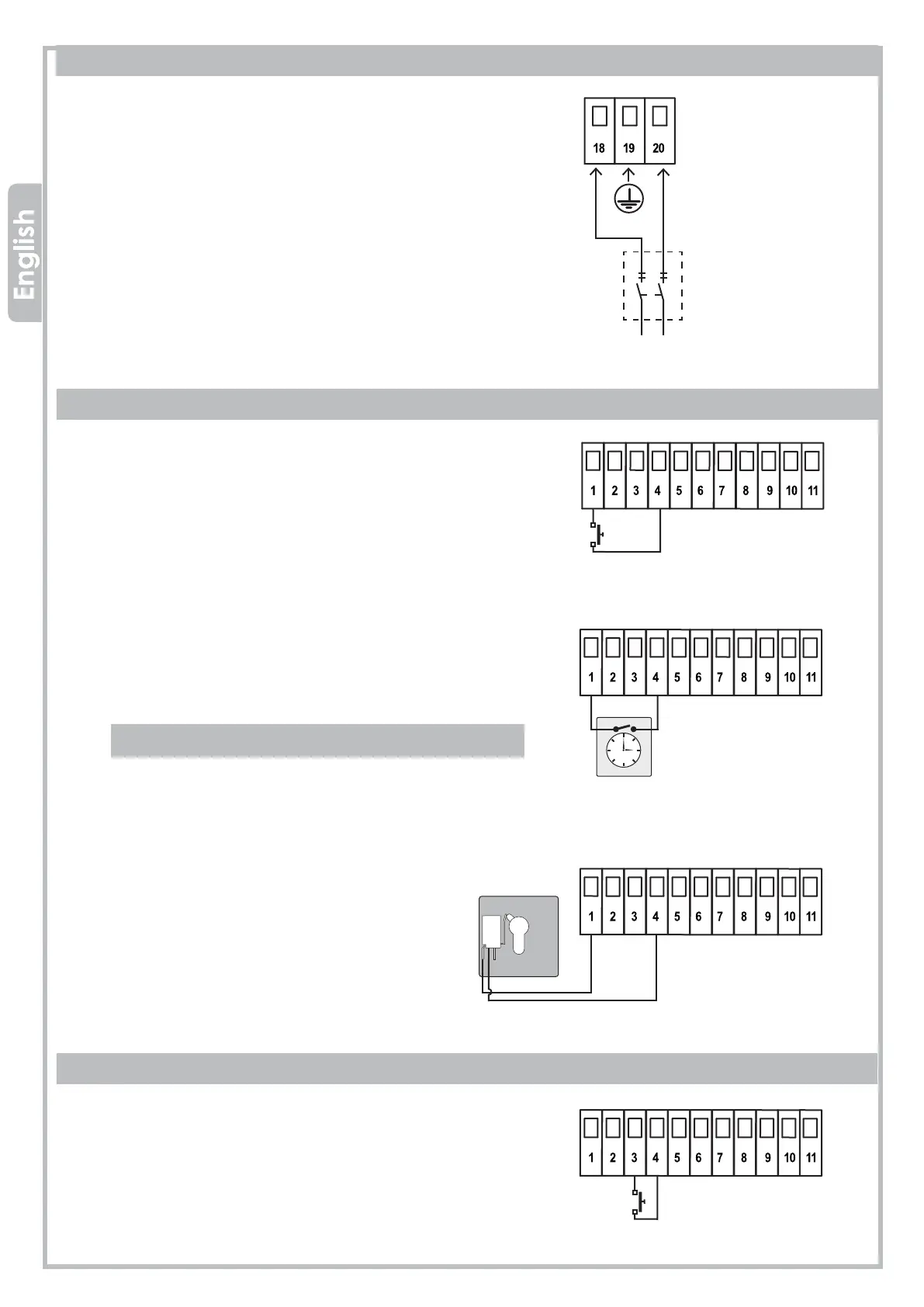

3.3 START DEVICES
Wire the START contact (N.O. contact) to 1 – 4, terminal JP4.
An additional START contact can be wired in PARALLEL (N.O. contact)
3.4 PEDESTRIAN OPENING
Wire the PEDESTRIAN START (N.O. contact) to 3-4, terminal JP4.
An additional PEDESTRIAN START contact can be wired in PARALLEL
(N.O. contact)
3.3.1 TIMER
It is possible to wire a TIMER (N.O. contact) to 1 - 4, terminal JP4.
WARNING:
when connecting a TIMER, the multi-users function must be
enabled. SW1 DIP 2 = ON
TIMER
3.3.2 KEY SWITCH
Wire the KEY SWITCH (N.O. contact) to 1 – 4, terminal JP4.
3.2 MAIN POWER
The main line must be protected by a proper CIRCUIT BREAKER .
Connect the line 230V to 18 – 19 – 20, terminal JP9, fulfilling the
polarity (18 PHASE – 19 EARTH – 20 NEUTRAL).
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
