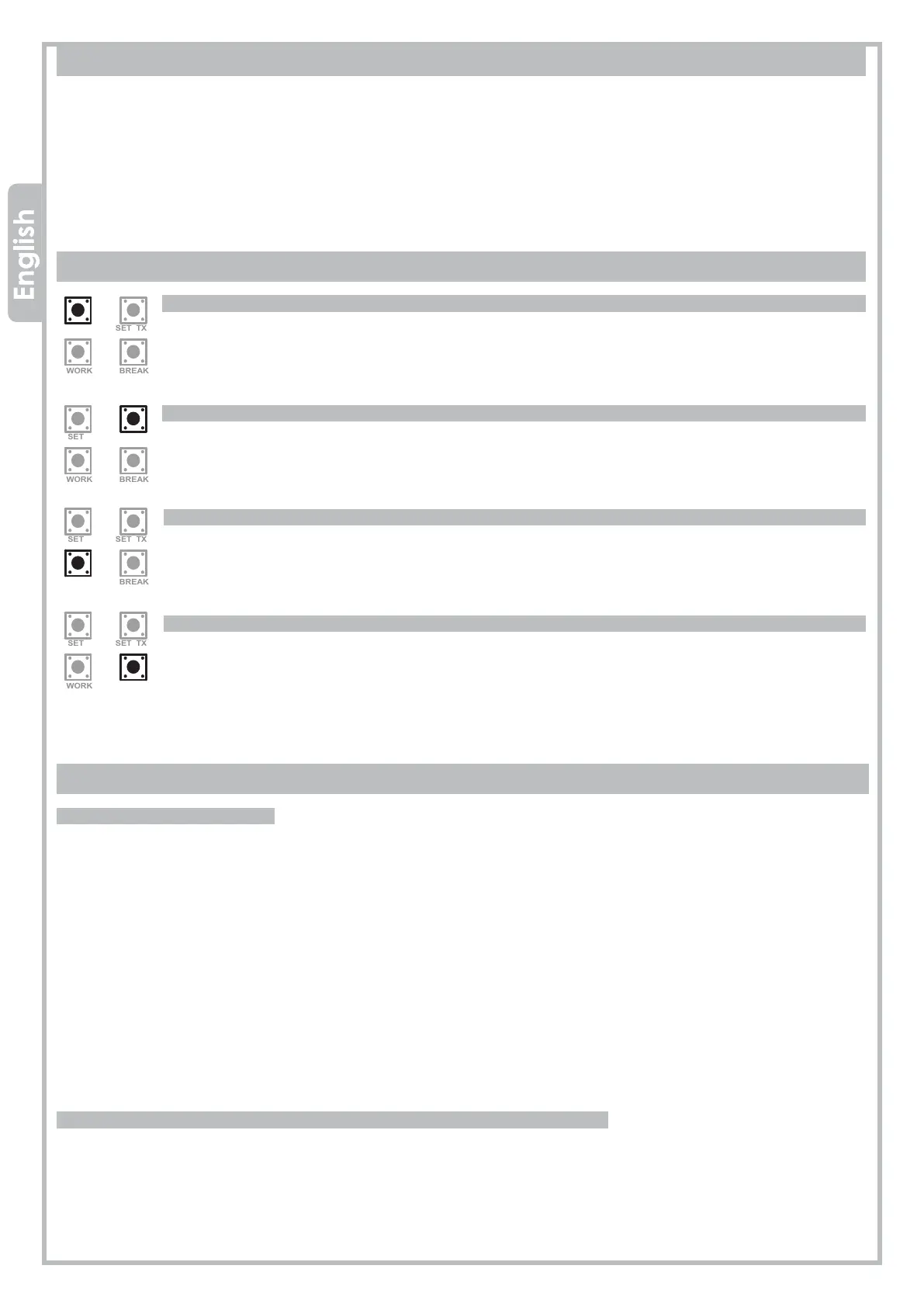

Proteco myGate Q81A User Manual

SET SET TX
WORK BREAK
SET SET TX
WORK BREAK
SET SET TX
WORK BREAK
SET SET TX
WORK BREAK
12 Q81A_5_2021
4. DEFAULT SETTINGS
LThe control panel is supplied with a DEFAULT SETTINGS: working time and delay are set for a standard 90° opening.
To reload the DEFAULT SETTINGS:
- Press BREAK to cut the power OFF and ON
- Turn SENS to the maximum (+) and POWER to half position.
5. BROWSING THE MENU
5.1 FUNCTIONS MENU
5.1.1 AUTOMATIC CLOSING
The AUTOMATIC CLOSING DEFAULT is set at 3 sec.
To set the AUTOMATIC CLOSING TIME:
- Press SET for 3 sec. DL1 blinks, release SET.
- Press BREAK and release.
- The blinker and led DL1 light up, the control panel starts the count down.
- Press BREAK again when reached the desired time, the blinker turns off.
The time has been set (automatic closing time max. 120 sec.)
To desactivate the AUTOMATIC CLOSING:
- Press SET for 3 sec. and release, the led DL1 blinks.
- Press BREAK and hold for 5 sec., the AUTOMATIC CLOSING has been desactivated
5.1.2 8K2 RESISTIVE SAFETY EDGE INPUT (just in opening)
To activate the 8K2 input as safety in opening press SET + SET TX while turning the control panel on.
SET
Use SET:
- To programm the control panel (section 8.1. AUTOMATIC MODE – 8.2. SEQUENTIAL MODE).
- To activate or desactivate the automatic closing (section 5.1.1)
SET TX
Use SET TX:
- To store or to delete a radio code.
WORK
Use WORK:
- As START command
- For SEQUENTIAL PROGRAMMING
TASTO BREAK
Use BREAK:
- To activate and set the AUTOMATIC CLOSING TIME (section 5.1.1)
