JP4 JP5 JP6
8K2
Q81A_5_2021 9

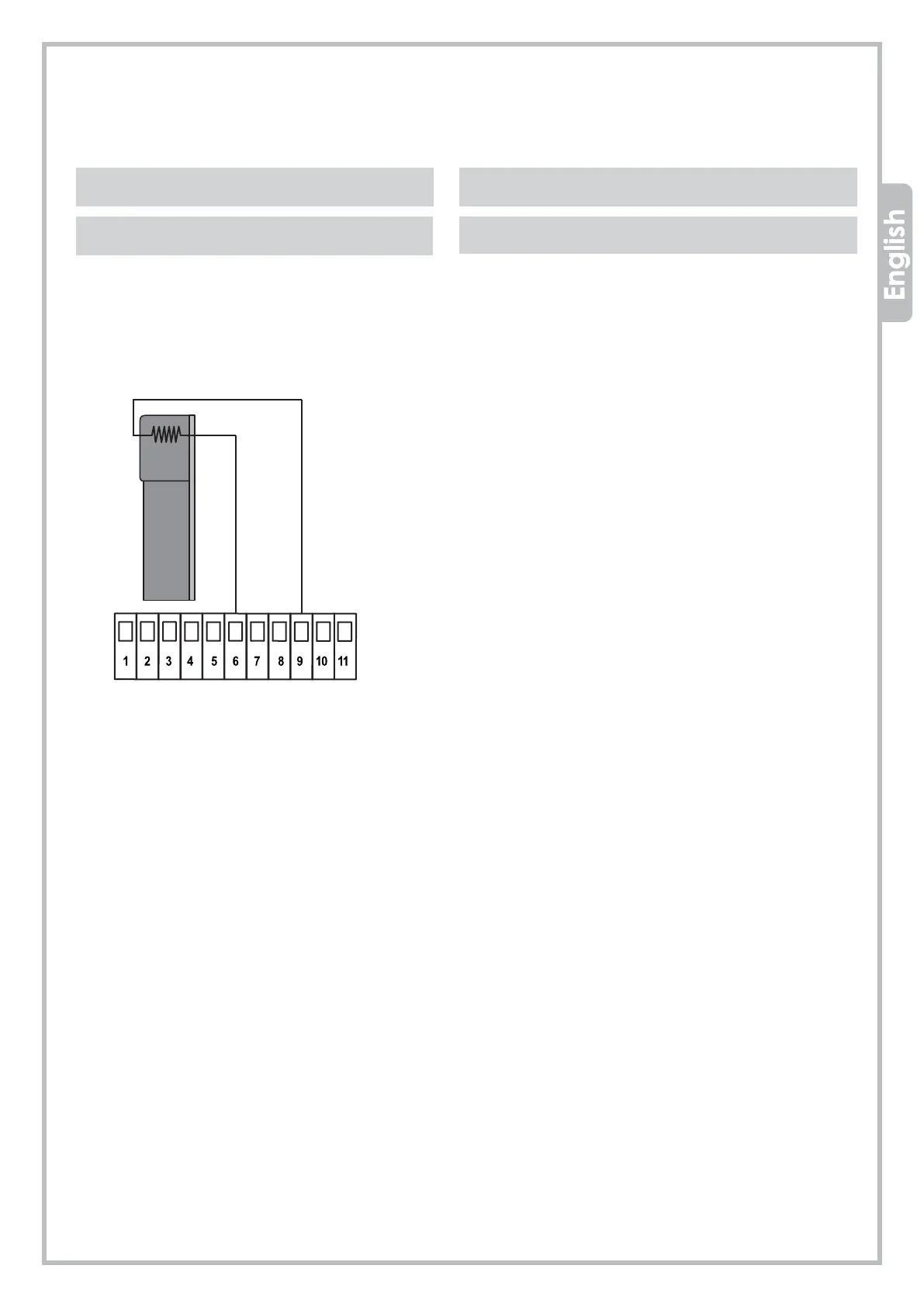

3.7.3 8K2 resistive safety edge in OPENING
- Adjust SW2 dip-switch no. 2 = ON
- Press SET + SET TX together and feed the control
panel.
Wire the 8K2 safety edge to 6 - 9, terminal JP5.
• If the contact is broken during OPENING, the
gate stops and reverses after 3 sec.
• If the beam is broken during CLOSING, the gate
stops and reverses.
8K2 safety edge + photocells in OPENING
- Adjust SW2 dip-switch no. 2 = ON
- Press SET + SET TX together and feed the control panel.
Wire the safety edge and the N.C. contact of the photocell
in series.
• If the contact is broken during OPENING, the gate stops
and reverses after 3 sec.
• If the beam is broken during CLOSING, the gate
stops and reverses.
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
