Proteco myGate Q81A User Manual

1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
14 Q81A_5_2021

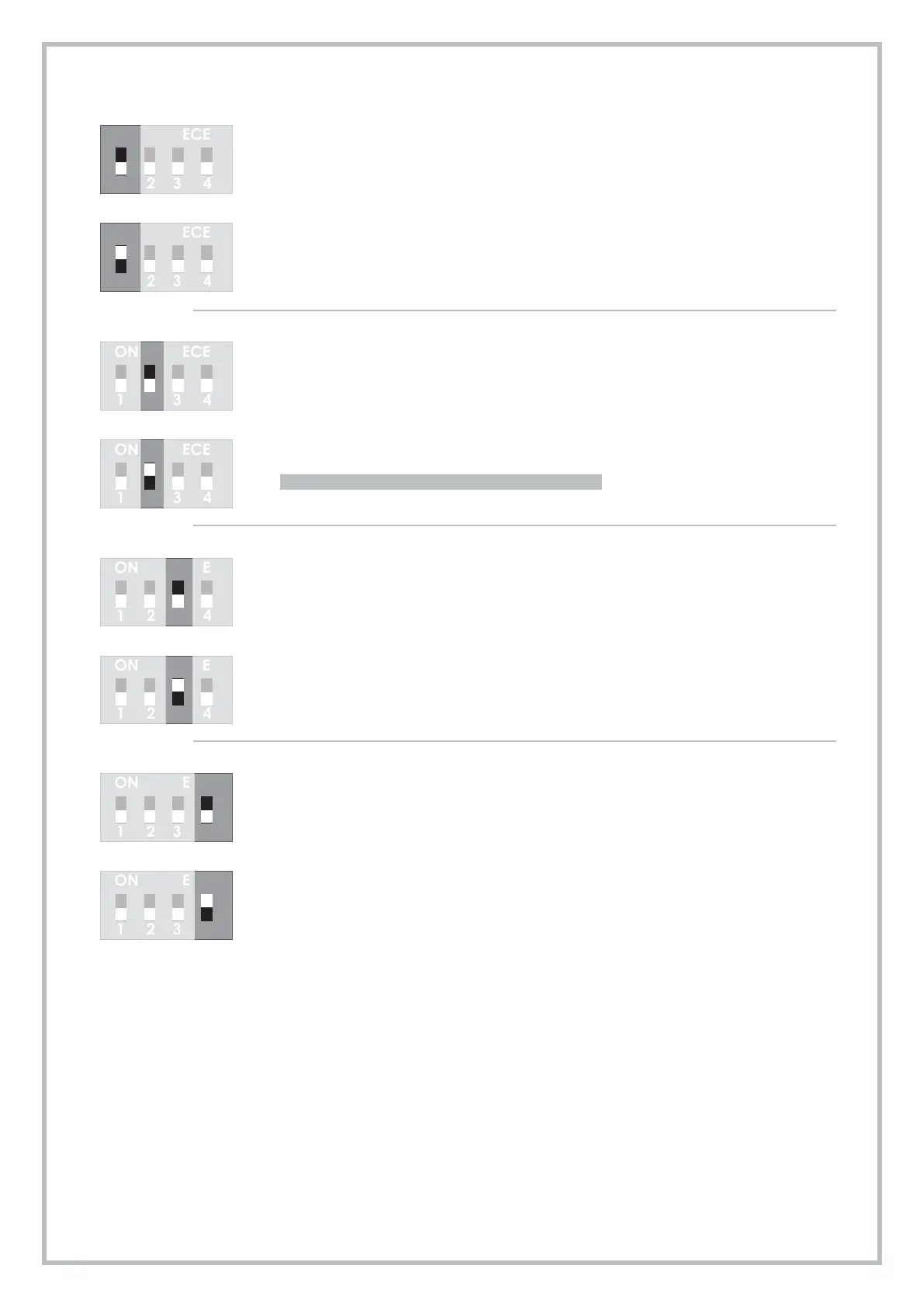

SWITCH SW2
dip n° 1
dip n° 2
dip n° 3
dip n° 4
ON
OFF = Ram blow and closing thrust DEACTIVATED
ON = Ram blow and closing thrust ACTIVATED (just for gates with electrolock)
OFF
ON
OFF = Photocell in OPENING ACTIVATED
ON = Mechanical safety edge ACTIVATED
8K2 resistive safety edge ACTIVATED.
N.B.: It’s mandatory to carry out the INPUT TEST
OFF
ON
OFF = Immediate closing mode DEACTIVATED
ON = Immediate closing mode ACTIVATED
The gate starts CLOSING after 1,5 sec.
bypassing the AUTOMATIC CLOSING COUNT DOWN
OFF
ON
OFF = Ram stroke RELEASE mode DEACTIVATED
ON = Ram stroke RELEASE mode ACTIVATED
At the endpoint stage during CLOSING and OPENING, the motors press onto the mechanical
endstop, cut the thrust, and release a small space between the doors for safety operation.
OFF
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
