PS Engineering
PAC45 Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-045-0000 Page 3-2 Rev. 7, May 2019
3.12.2 Dual Control Head, Pilot CTL45P and Copilot CTL45P
Pilot Control Panel
Copilot Control Panel
PILOT
COPILOT
PASSENGERS
ISO
ALL
CRW
ISO
ALL
CRW
Pilot Control Panel
Copilot Control Panel
PILOT
COPILOT
PASSENGERS
ISO
ALL
CRW
ISO
ALL
CRW
Pilot Control Panel
Copilot Control Panel
PILOT
COPILOT
PASSENGERS
ISO
ALL
CRW
ISO
ALL
CRW
Selected Radios
Selected Radios
Passenger Intercom
Selected Radios
Passenger Intercom
Selected Radios
Selected Radios
Copilot Intercom
Passenger Intercom
Selected Radios
Pilot Intercom
Passenger Intercom
Selected Radios
Pilot Intercom
Copilot Intercom
Passenger Intercom
Copilot ‘s Selected
Radios
Copilot Intercom
Passenger Intercom
Pilot Control Panel
Copilot Control Panel
PILOT
COPILOT
PASSENGERS
ISO
ALL
CRW
ISO
ALL
CRW
Selected Radios
Copilot Intercom
Passenger Intercom
Selected Radios
Pilot Intercom
System defaults to ALL-ALL at power up.
Either panel can select ISO, and be removed from intercom while
the other remains with passengers.
Either panel can select CRW, and place both panels in Crew
mode
Either panel can select ALL and add everybody to the intercom
and radio
Pilot Control Panel
Copilot Control Panel
PILOT
COPILOT
PASSENGERS
ISO
ALL
CRW
ISO
ALL
CRW
Selected Radios
Passenger Intercom
Selected Radios
Pilot’s Selected Radios
Pilot Intercom
Passenger Intercom
ALL - ALL MODE PILOT ISOLATE MODE
COPILOT ISO MODECREW MODE
ISO-ISO MODE

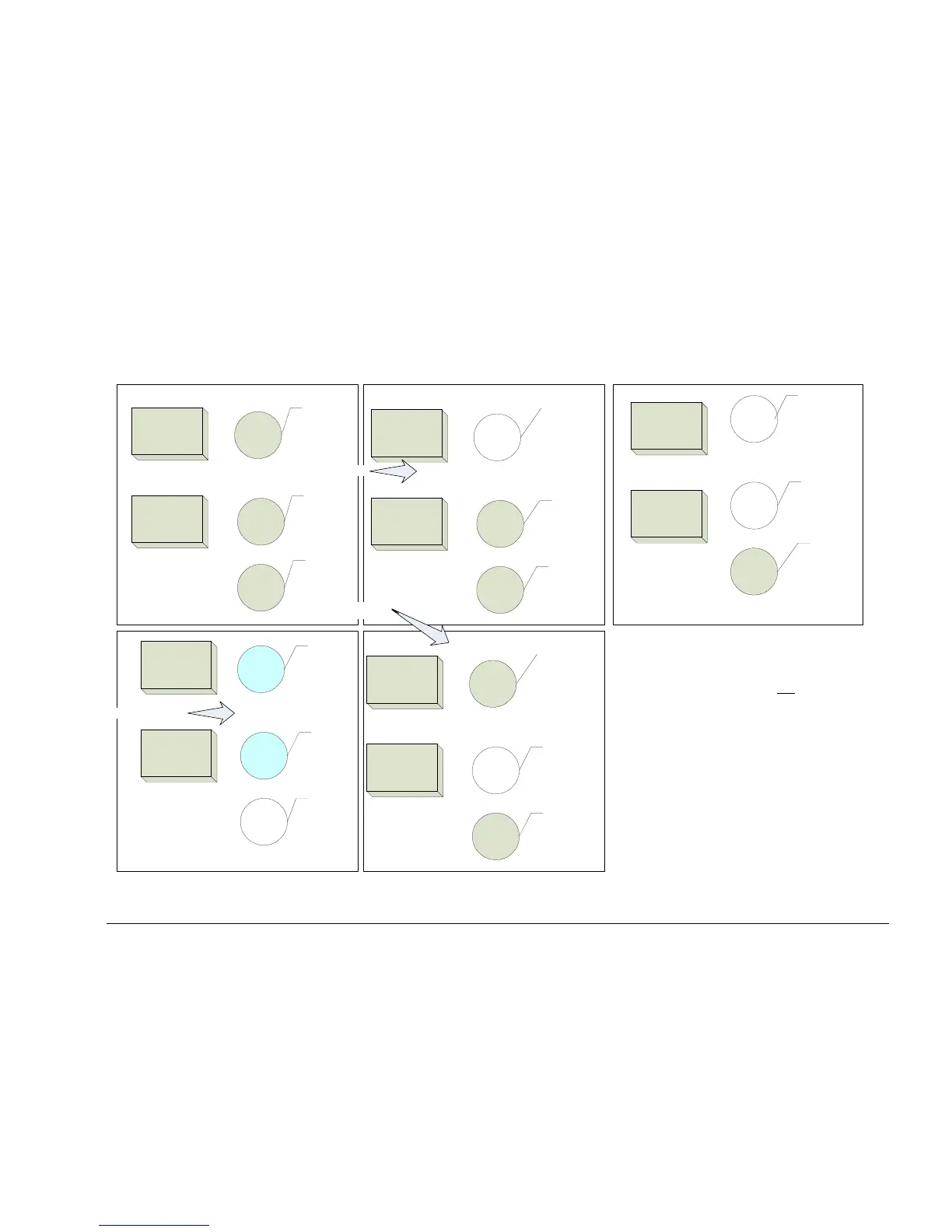

DUAL CONTROL HEAD INTERCOM MODES
PILOT PRESSES ICS
EITHER PRESSES
ICS
COPILOT PRESSES
ICS
