72-900-06 Rev. F
Page 15 of 38

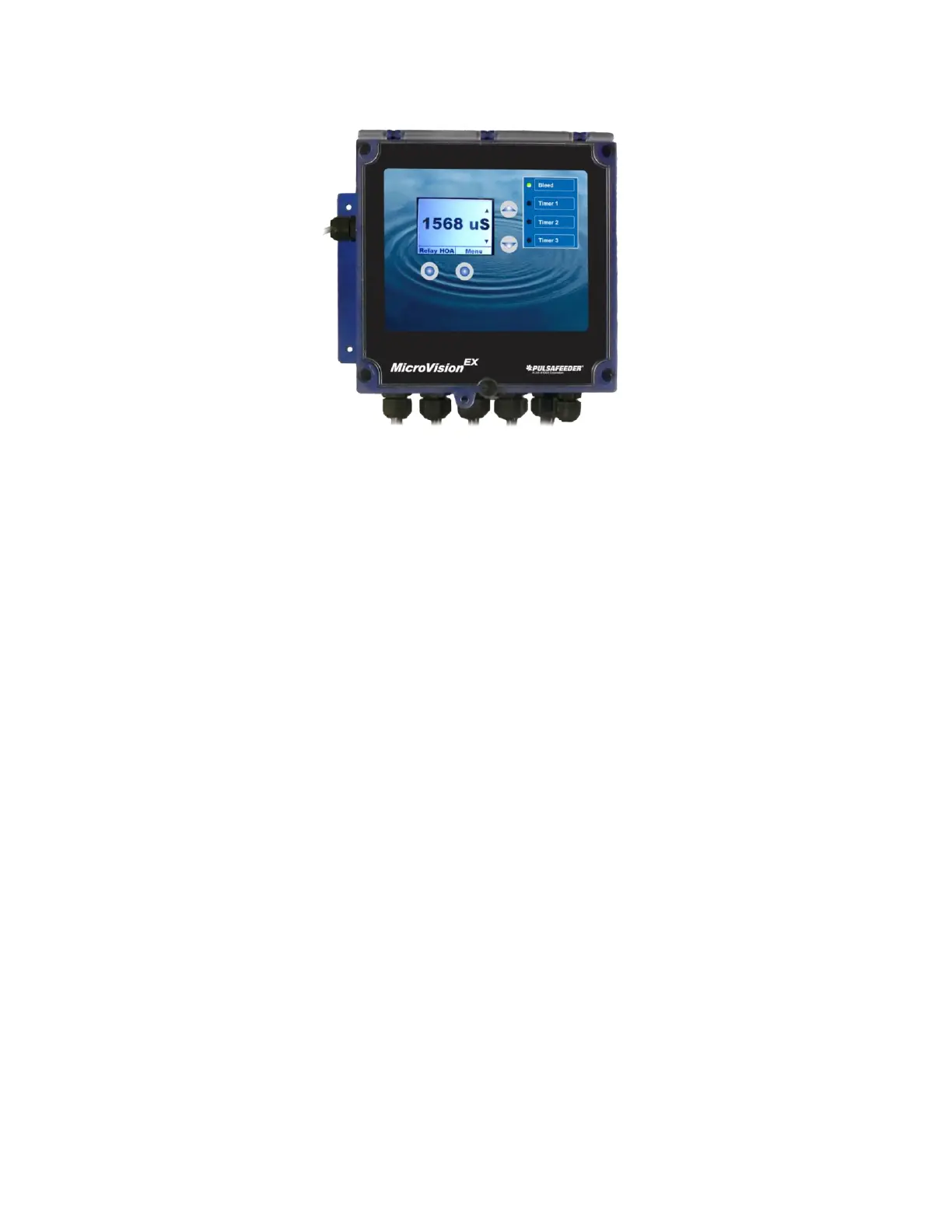

FRONT PANEL DESCRIPTION
3.15 Keypad Operation
UP/DOWN - Dual function keys are used to move the select
(highlighted) box and to increase and decrease values.
O O - Soft keys used for various functions depending on the
currently displayed screen. The key’s function appears
above the key on the display.
3.16 Communications (Optional)
The MicroVision EX has a variety of cloud capable controllers. These controllers will ship
with a CAT5 cables with an RJ45 connection. To connect the MicroVision EX to PulsaLink,
Pulsafeeders cloud controller management software solution. The controller will need
internet access. Please terminate the provided RJ45 connection to an open internet port.
To Next Page
