72-900-06 Rev. F
Page 8 of 38

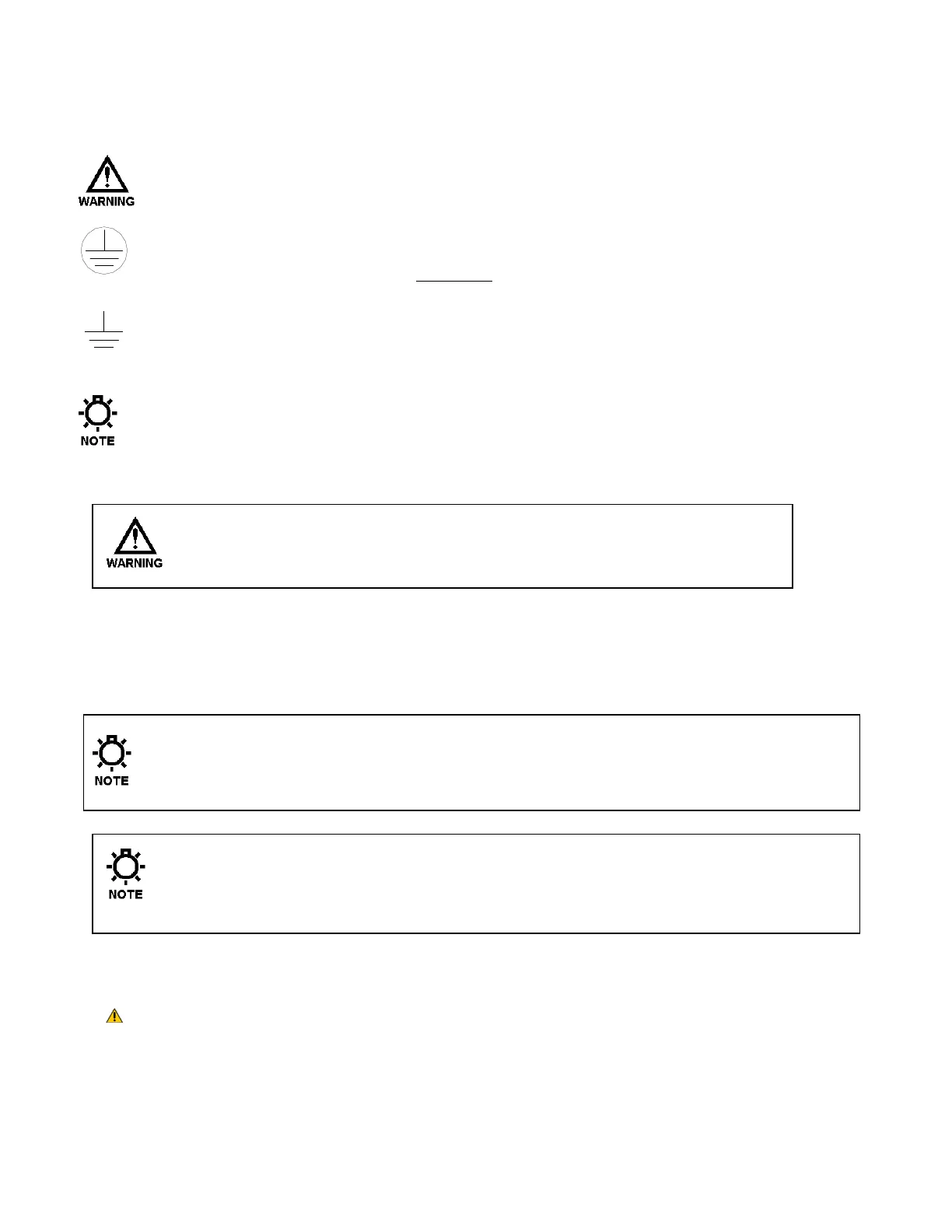

3.6 IMPORTANT SYMBOL INFORMATION
Warning indicates a condition that could cause damage to both the
equipment and the personnel operating it. Pay close attention to any
warning.
Primary Supply Ground must be connected to earth ground for safe
operation of the controller.
Chassis Ground – Connect the equipment’s ground wire here for safe
operation of external devices.
Notes to provide tips and hints
3.7 ELECTRICAL WIRING
CONTROLLER MUST BE WIRED IN ACCORDANCE WITH ALL APPLICABLE
ELECTRICAL CODES, NEC, CSA, EN, OR LOCAL AUTHORITY HAVING
JURISDICTION.
The MicroVision
EX
electronic input circuitry is fuse protected on both the hot and
neutral inputs using a replaceable eight amp fuse (see page 9). For additional
protection of this instrument, use of a surge protector is recommended.
The controller should be connected to a dedicated power branch (i.e., its
own wiring, GFCI circuit breaker, etc.). For best results, the ground
should be independent (true earth) not shared.
A switch or circuit-breaker, marked as the unit’s disconnecting device
should be included in the installation. It should be in close proximity to
the unit and be easily reached by the operator.
Pre-wired controllers are supplied with a 3-wire grounded power cord and 3-wire
grounded receptacle cords for all controlled line voltage outputs.
Plug is considered as mains power disconnecting device which shall be readily
identifiable and easily accessible.
