3. INSTALLATION
3.1 Location
Select a mounting location convenient to grounded (True Earth) electrical and
plumbing connections. It is recommended that the controller is mounted on a wall or
other vertical surface with adequate lighting at a comfortable level. Installation
should comply with all national, state, and local codes.
Avoid locations where the controller would be subjected to direct
sunlight, extreme cold, heat, or humidity {less than 36°F (2.2°C) or
greater than 122°F (50°C), or greater than 95% RH non-condensing,
direct sunlight, vibration, vapors, liquid spills, or EMI (electromagnetic
interference; e.g., strong radio transmission and electric motors.)
Install at less than 2000m above sea level.
SAFETY PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED IF THE
EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE MANUFACTURER.
THIS CONTROLLER IS INTENDED FOR INDOOR USE ONLY AND NOT SUITABLE
FOR WET LOCATION.
3.2 Mounting Hardware
Mount the controller using the four (4) holes provided.
Typically, use a #8 screw or equivalent. The mounting screw should be appropriate
for the location mounting on, i.e., sheet metal screws for mounting onto sheet metal,
wood screws for mounting onto wood or wall studs, and hollow wall drywall anchors
for mounting to drywall. Mount should be designed for 7.5 Kg, 17 lbs.
Mount the unit ergonomically, such that the unit is visible without excessive
bending or lowering of the body, and not too high such that the internals are
not visible with opening the enclosure.

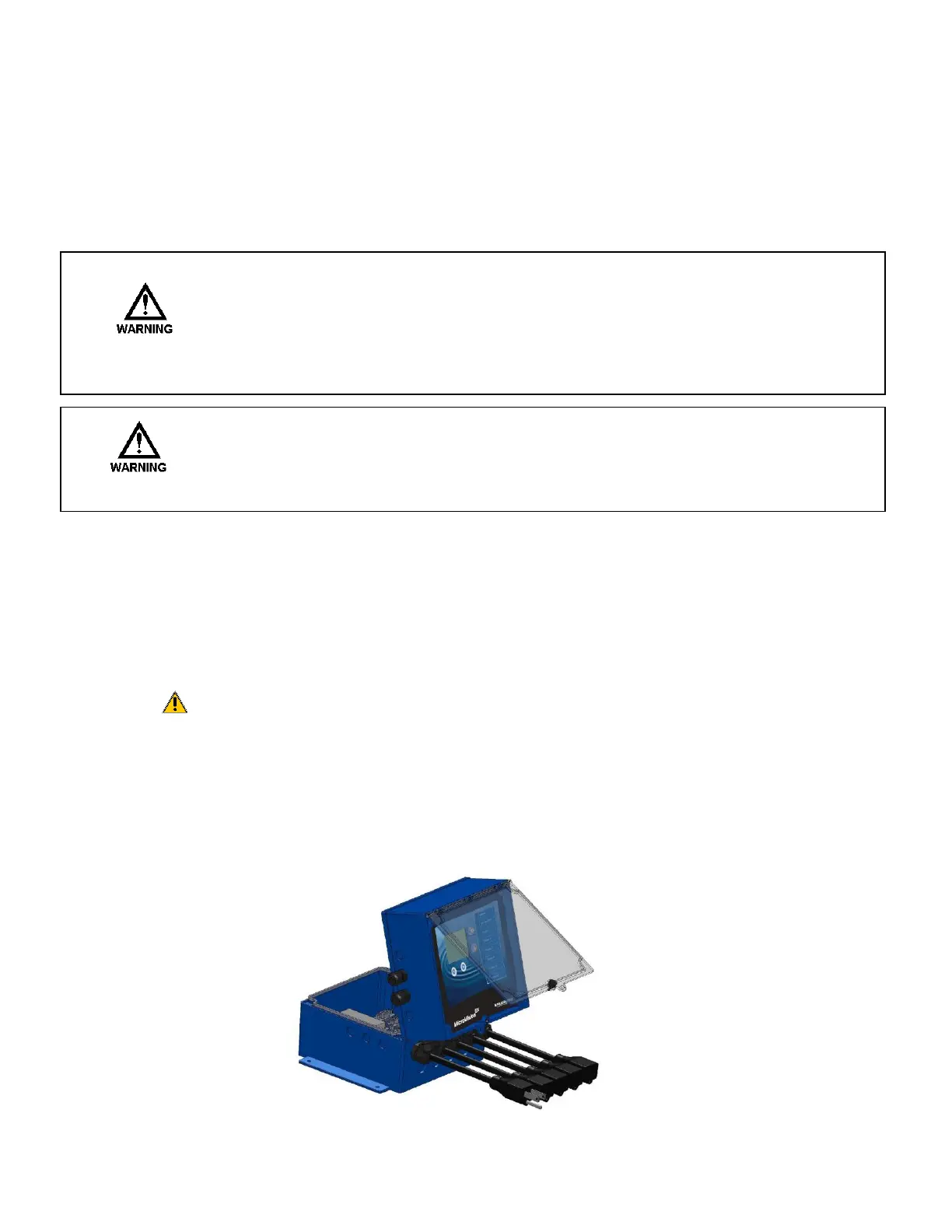

3.3 Opening the Enclosure
Loosen the knob that secures the clear front cover. Then loosen four (4) screws in
the four corners of the front of the controller and carefully swing the top of the case
forward.
