Pulsafeeder MicroVision EX User Manual

72-900-06 Rev. F
Page 16 of 38
4. CONTROLLER PROGRAMMING

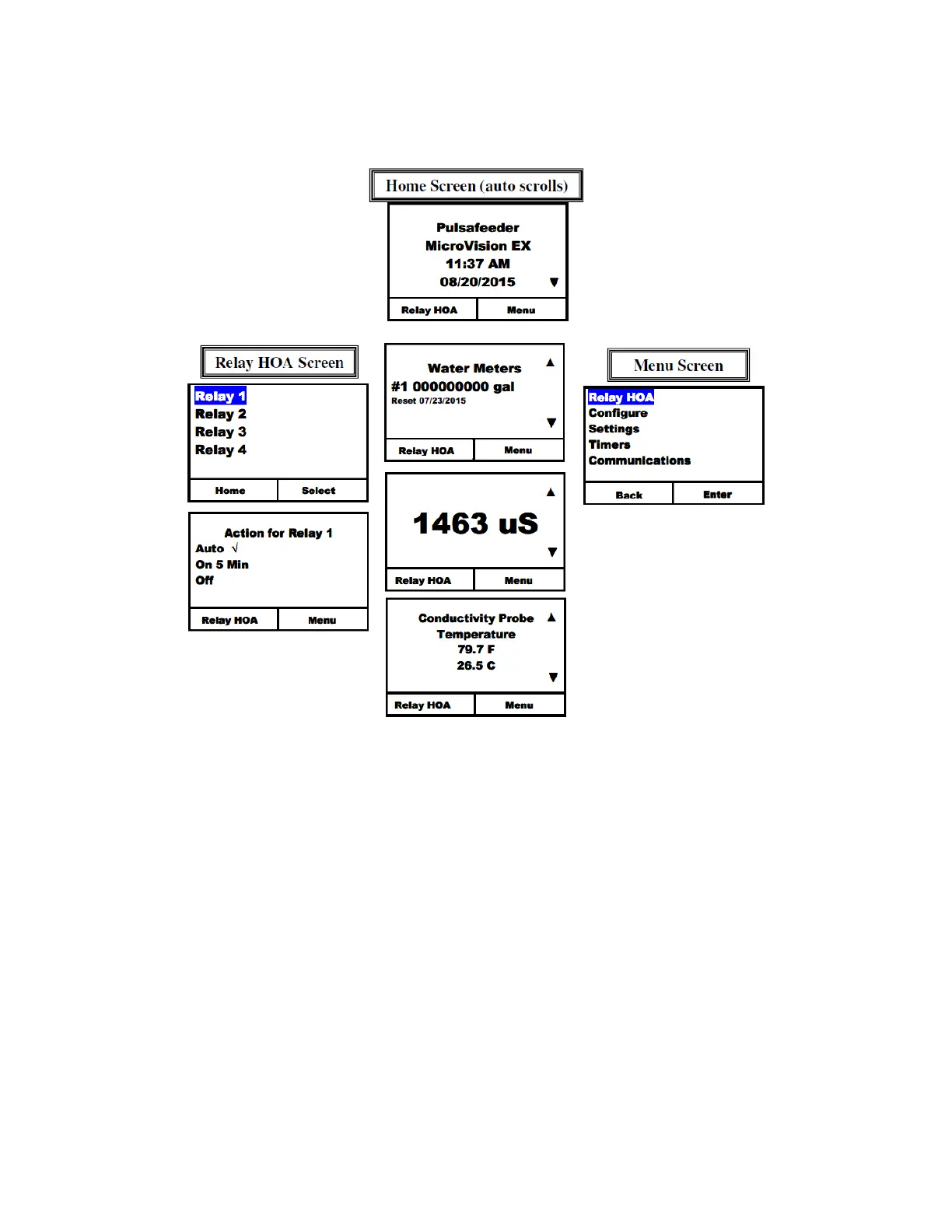

4.1 Menu Map
4.2 Menu Navigation
MicroVision
EX
uses four front panel buttons to navigate through the different menus. Use
these buttons to move up and down within a list of options or move right and left to enter
or change parameter values. In some cases the MicroVision
EX
display will prompt the user
to press the different buttons to assist you in selecting or changing data.
Some menus may display highlighted menu options or a checkmark () next to a menu
option. The highlighted menu option is used to indicate that another menu will be displayed
if this option is chosen. The checkmark indicates that a particular control mode has been
selected.
4.3 Home screen
The Home Screen displays the system readings and operating information. This screen is
displayed during normal operation when there are no alarm conditions on the MicroVision
EX
.
If an alarm condition occurs an alarm message will flash on the screen. The LED’s to the
right of the display will also flash indicating an alarm has occurred.
The MicroVision
EX
will return to this screen if no buttons are pressed for five minutes after
entering a menu.
