Pulsar Infinity PS-2SD - ORP Drain Kit (for Use with ORP Kit); Vent Installation for Feeder Draining if Used with an ORP Kit

Pulsar® Infinity Operation and Installation Manual – Water Treatment 26
8.1.1 ORP Drain Kit (for use with ORP kit)
New Feeder ORP Drain Kit – SDCH 2.0
Part Description Qty Part Number
ORP Drain Kit Kit includes venturi for small feeder (qty 1), 1 1/2" slip x slip unions
(qty 2), 1/2" threaded Tee (qty 1), 1/2" close nipple (qty 6), and
1/2" check valve for the vent (qty 1)
1 73188
New Feeder ORP Drain Kit – Spare Parts
Part Description Qty Part Number
P1 Venturi P1 Venturi used for 2.0 drain system 1 71971
P1 Venturi Unions 1 1/2" slip x slip unions 2 71973
Threaded Tee 1/2" NPT threaded Tee 1 71912
1/2" Nipple 1/2" Threaded nipple 2 71611
Vent 1/2" FNPT PP check valve, hastelloy spring, teflon ball, ALFAS seal,
industrial spec CVMC-8-8F-3#H-AF-WPP
1 73167
Nozzle protection basket Filter basket for nozzle protection 1 73180
8.2 Vent Installation for Feeder Draining if used with an ORP kit

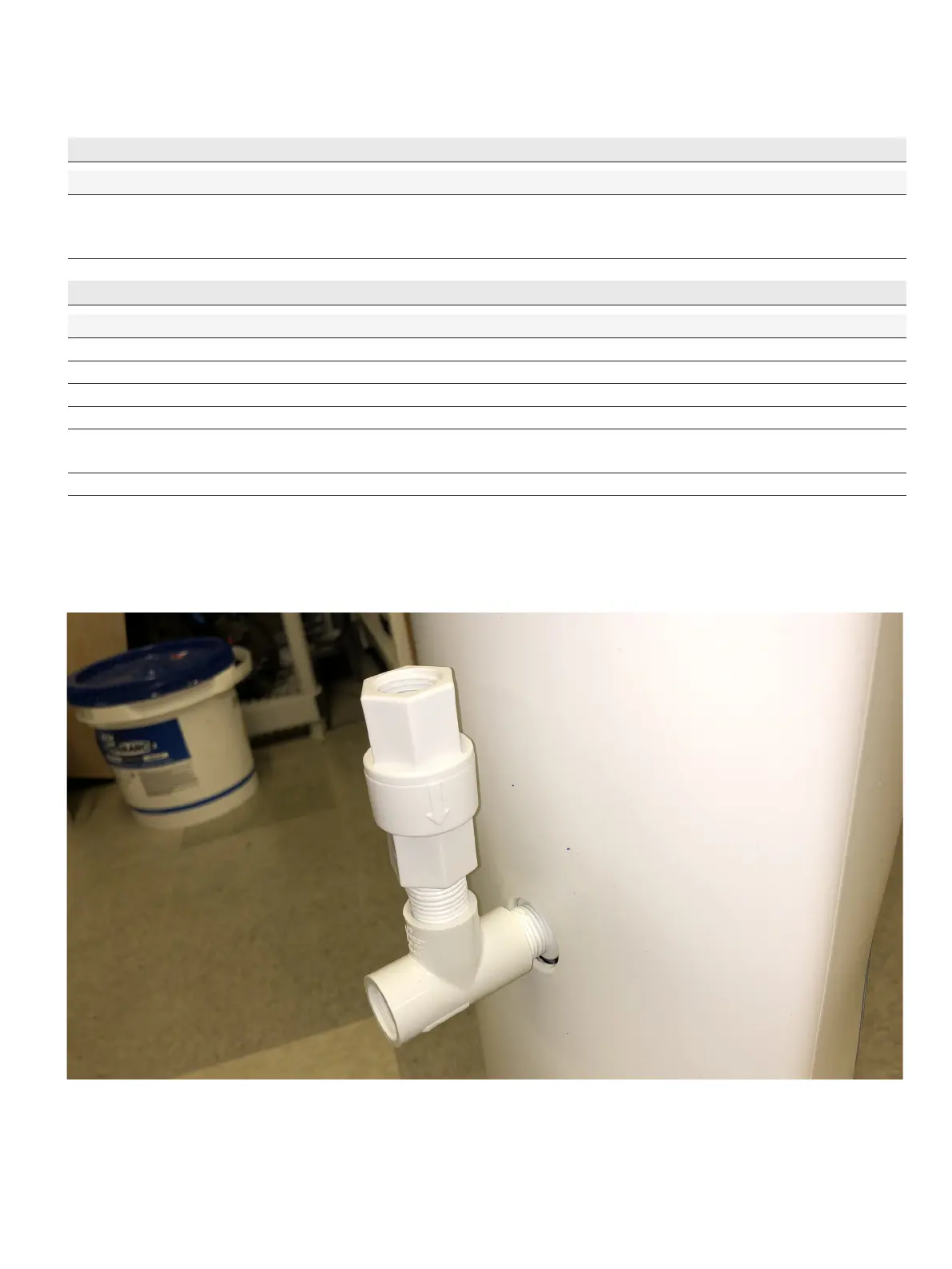

STEP 1 – For air venting capabilities, install the ½” check valve with the arrow pointing down using the other ½” tee and remaining
nipples
