Using ERSC Add On Instructions (AOI) with RSLogix 5000
Publication ERSC-1521 Rev 1.0 – February 2019
Step 3

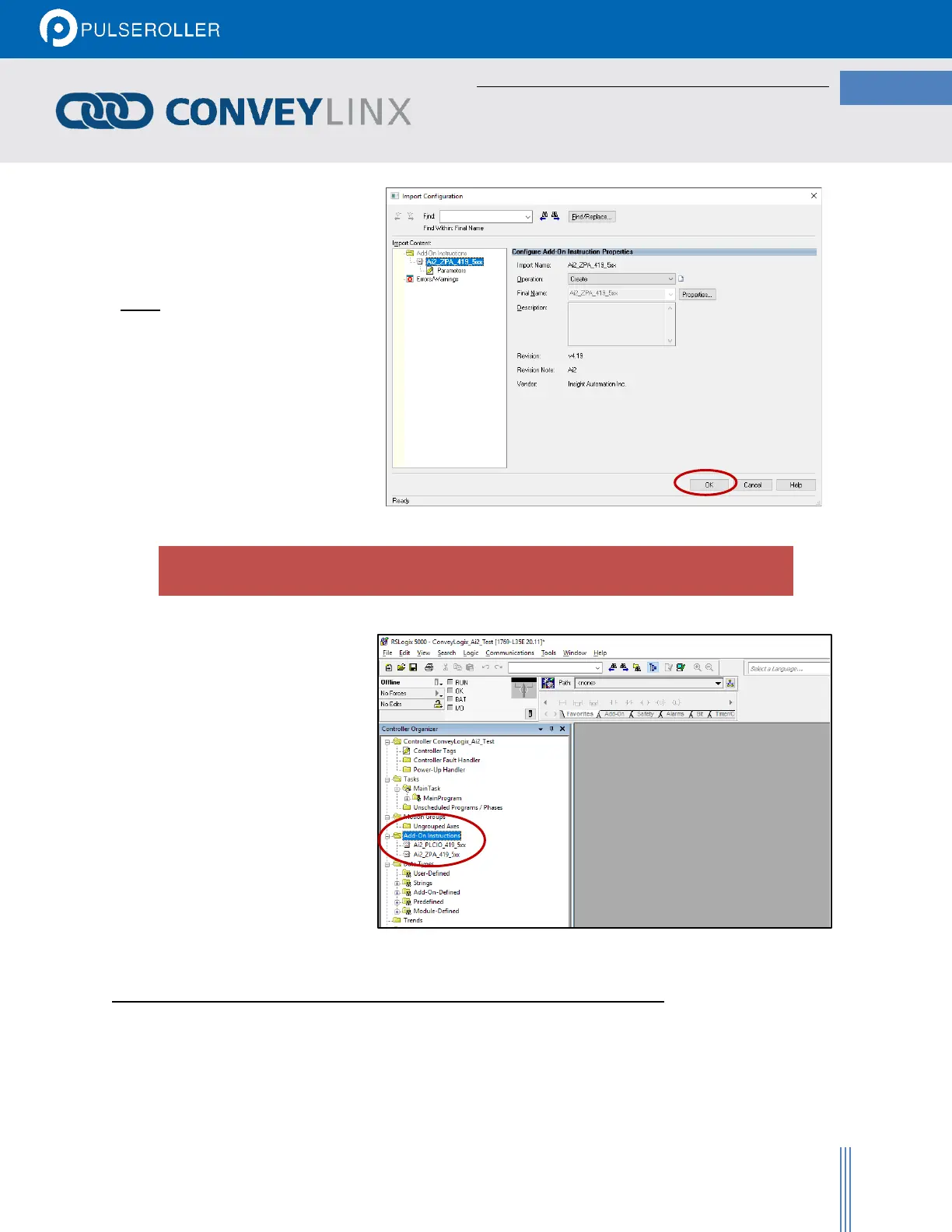

A window will appear indicating the
details about the AOI you are about
to import. There should be no errors
or warnings. Click OK to proceed
with the import.
If desired, simply repeat these 3 steps again to import the other AOI for PLC I/O mode.
When you are importing both the
ZPA and PLC I/O mode AOIs, they
should appear in the explorer tree as
shown.
Note: You do not have to import both AOI
instructions. If you only need an AOI for a
particular mode, you only have to import the
one you need.
EXAMPLE FOR ASSIGNING AOI TO AI2 MODULE IN YOUR PLC PROGRAM
For our example, we are going to add one ZPA mode Ai2 module to our current program. This module was added
following the steps outlined in section Creating a ZPA Mode Ai2 Module in the Ethernet Tree beginning on page 20.
For our example we are assuming this module has been configured with I.P. address 192.168.200.22 and was
