USR-TCP232-30x Series User Manual
pusr.com
1
- 10 -
2.2.2. Hardware connection
For fast networking of USR-TCP232-30x series serial server, you need to prepare a PC, a router, a serial server,
a network cable, a serial cable, and a DC5V/1A power supply. The hardware connection is shown in following
figure. To establish a TCP / IP network all devices must be connected to the same network either locally or via
gateway connections.

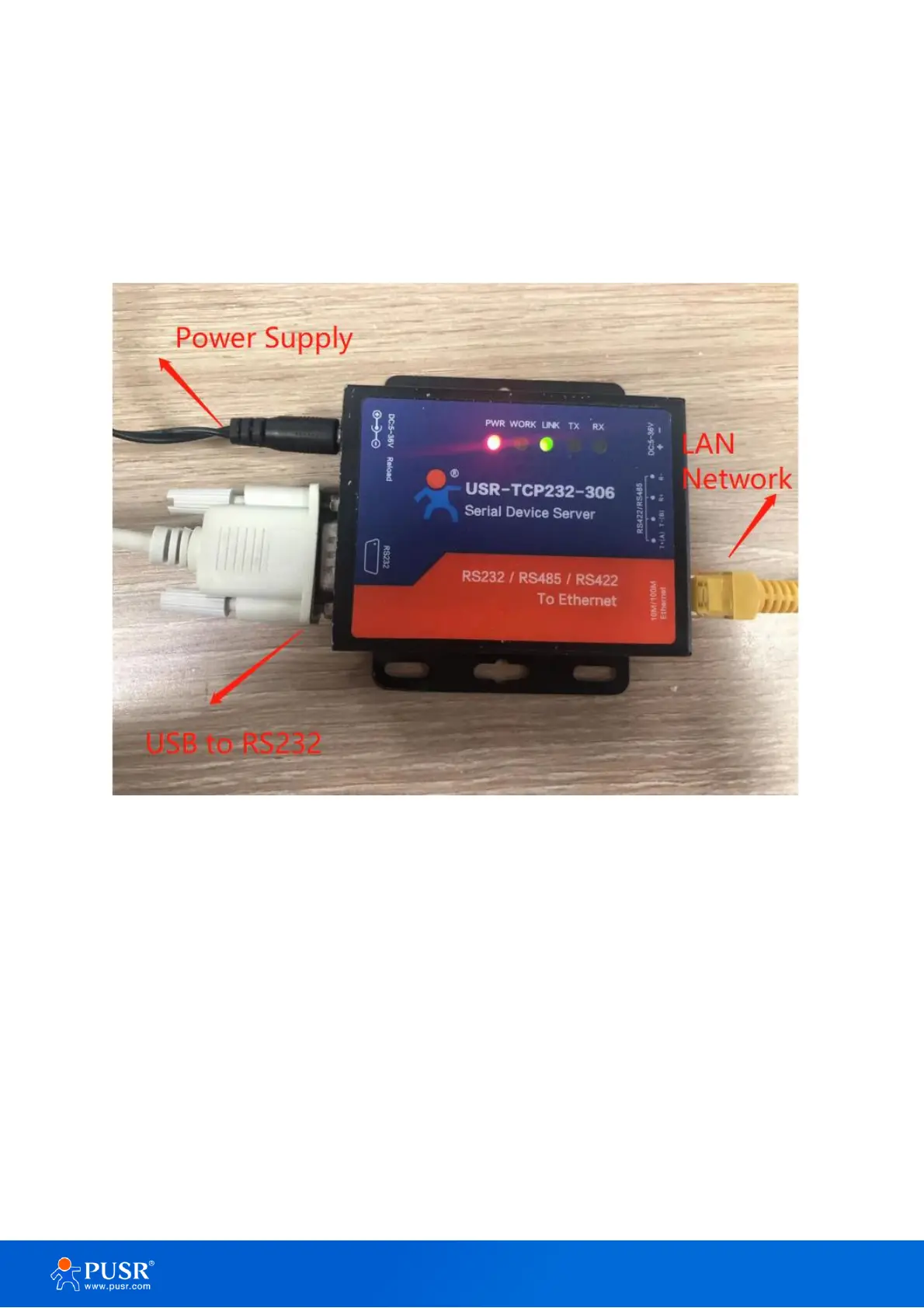

Figure 7. Hardware connection
2.2.3. Parameter configuration
Using the config software,
1. Users can search out the 30x device,
2. Set the IP type as DHCP/Auto IP,
3. Save config,
4. Search the device again,
5. Open the webpagethe user will be navigated to the login page, the username and password are both
admin.
