PUSR USR-TCP232-302 User Manual

USR-TCP232-30x Series User Manual
pusr.com
1
- 5 -
• Easy to config: built-in webpage and AT command to set parameters.
2. Get Started
2.1. Hardware interface introduction
2.1.1. Power supply
The USR-TCP232-302 and USR-TCP232-304 provide DC jack power supply interface. Power supply range:
5~7V DC.

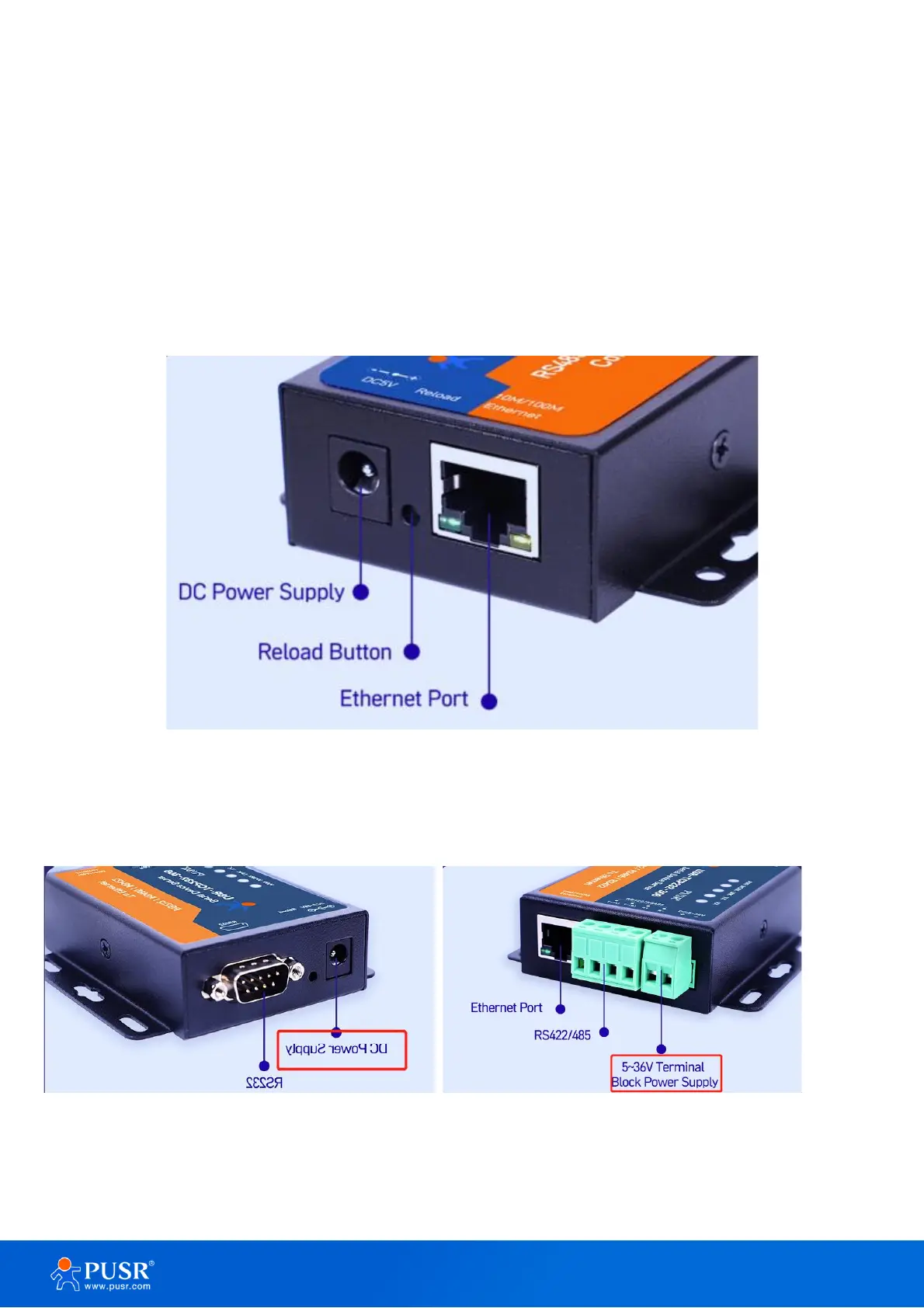

Figure 1. TCP232-302/304 DC power supply
The USR-TCP232-306 provides 2-pin power supply terminal blocks and DC jack. The power supply support
anti-reverse protection. Power supply range: 5~36V DC.
Figure 2. TCP232-306 power supply
