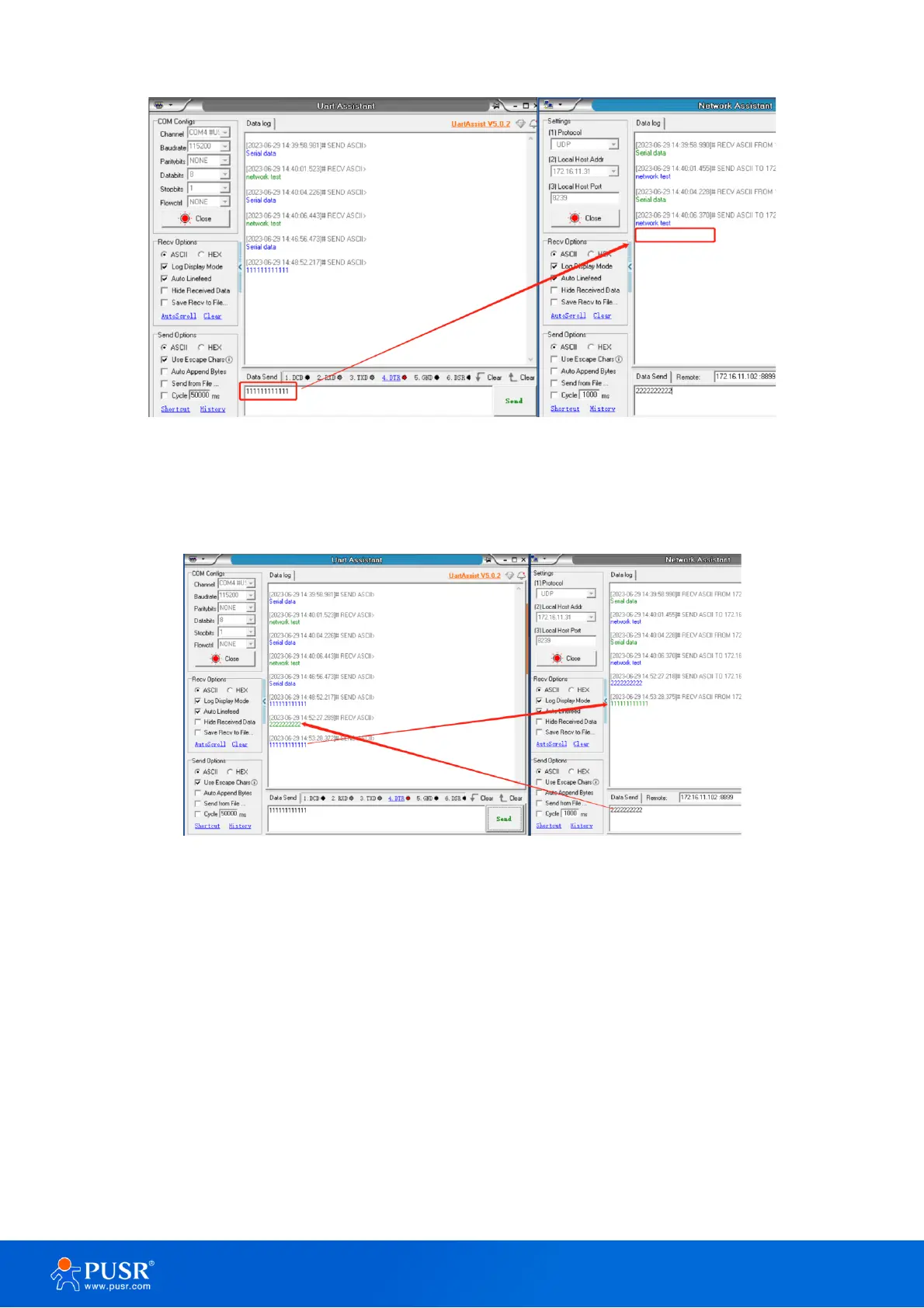

Figure 36. Test result with no data
If we send the first data packet from network to serial successfully, then we can also send the data from
serial to network successfully.
Figure 37. Test result with data transmission
4.4. UDP client
4.4.1. Transparent data transmission
In UDP client mode, TCP232-306 will only communicate with target IP/Port. If data is not from target IP/Port,
it won’t be received by TCP232-306.
