link indicator will turn on.
Protocol: TCP Client
Remote Host Address: 172.16.11.102 (the IP of USR-TCP232-306)
Remote Host Port: 503 (the local port of USR-TCP232-306)
The data transmission is shown in Figure 28.

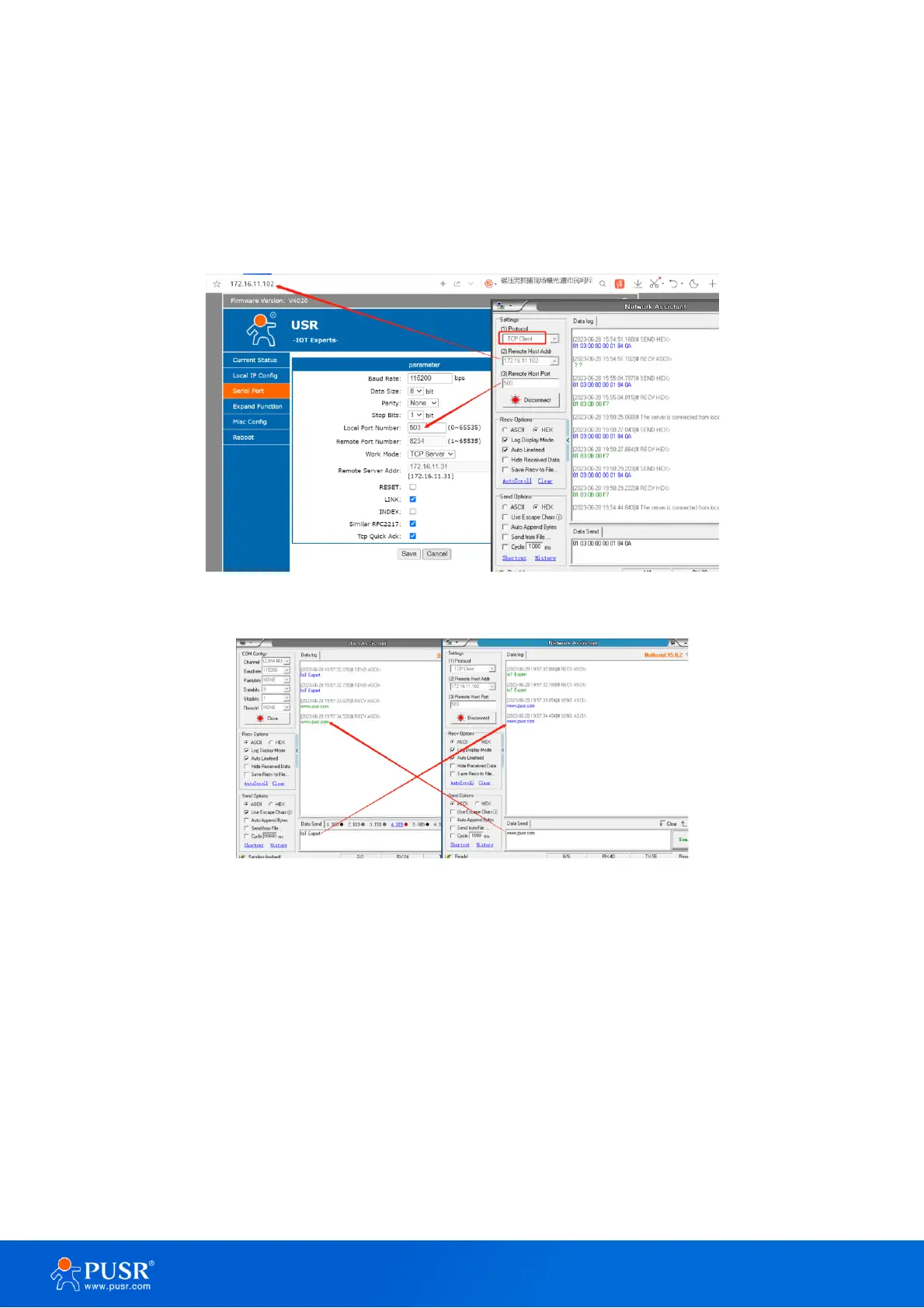

Figure 27. Setting of USR device and test software
Figure 28. Test of TCP server
4.2. TCP client
When the work mode is TCP client, the remote device must work in TCP server mode. The USR-TCP232-30x
will initiate the TCP connection and the remote server IP and port should be configured.
