Manual for Advance 10B/Advance 10F
Chapter 2
Installation Instructions
Chapter 2
Installation Instructions
This section covers External Connectors, Jumper Settings and Memory Configuration. Re-
fer to the mainboard layout chart for locations of all jumpers, external connectors, slots and
I/O ports. Furthermore, this section lists all necessary connector pin assignments for your
reference. The particular state of the jumpers, connectors and ports are illustrated in the
following figures. Before setting the jumpers or inserting these connectors, please pay
attention to the directions.
Be sure to unplug the AC power supply before adding or removing expansion
cards or other system peripherals, otherwise your mainboard and expansion
cards might be seriously damaged.

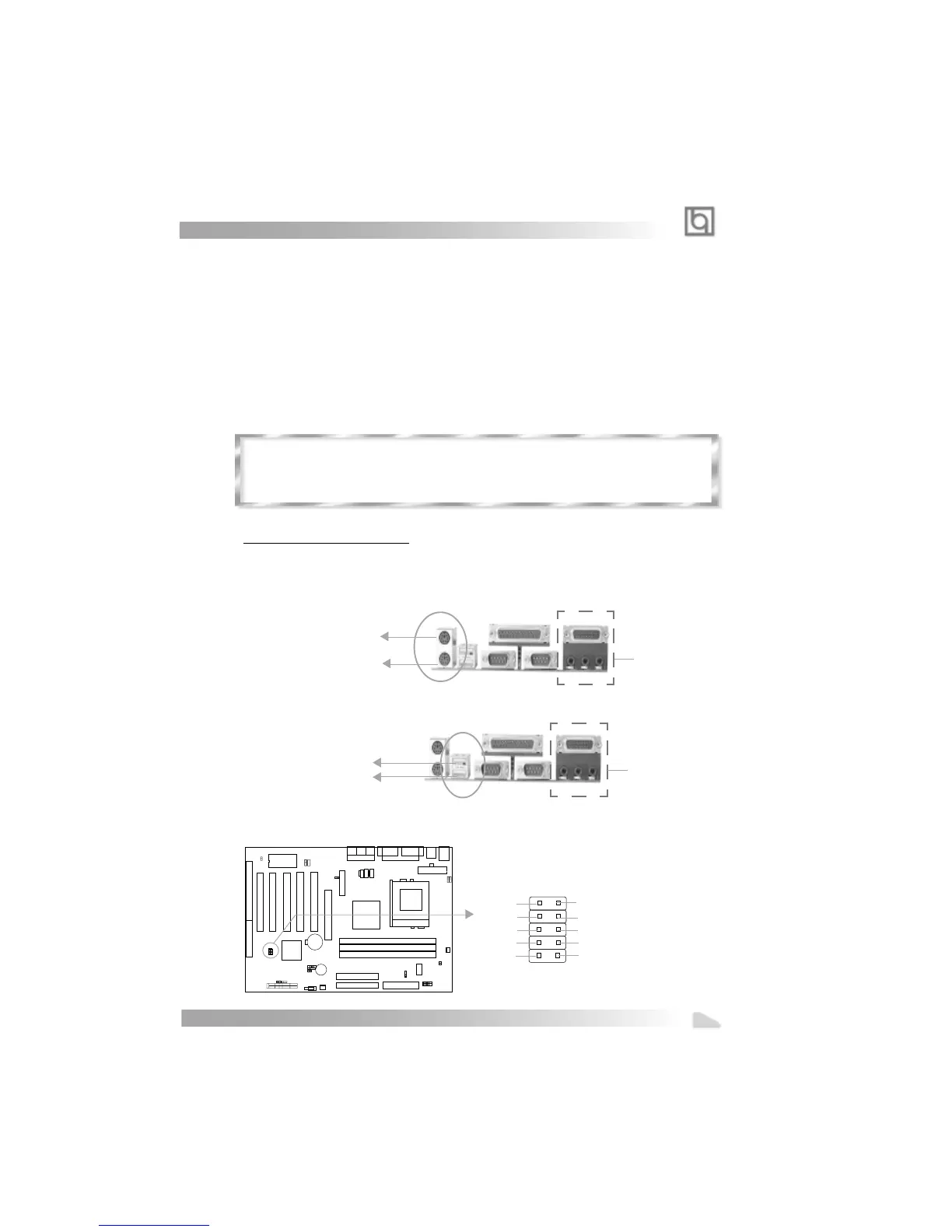

External Connectors
PS/2 Keyboard Connector, PS/2 Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size
keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the
usage of PS/2 mouse.
USB1, USB2
Two USB ports are available for connecting USB devices.
USB3, USB4
Two USB ports are not available on the back panel. Therefore, we provide a 10-pin ribbon
cable with bracket to connect Built-in on-board USB header. ( manufacturing option)
chapter 2
15
PS/2 Mouse Connector
PS/2 Keyboard Connector
USB1
USB2
1
+5v
T1-
T1+
GND
GND
GND
GND
T0+
T0-
+5v
For Advance 10B
mainboard only
For Advance 10B
mainboard only
