PC Health Status

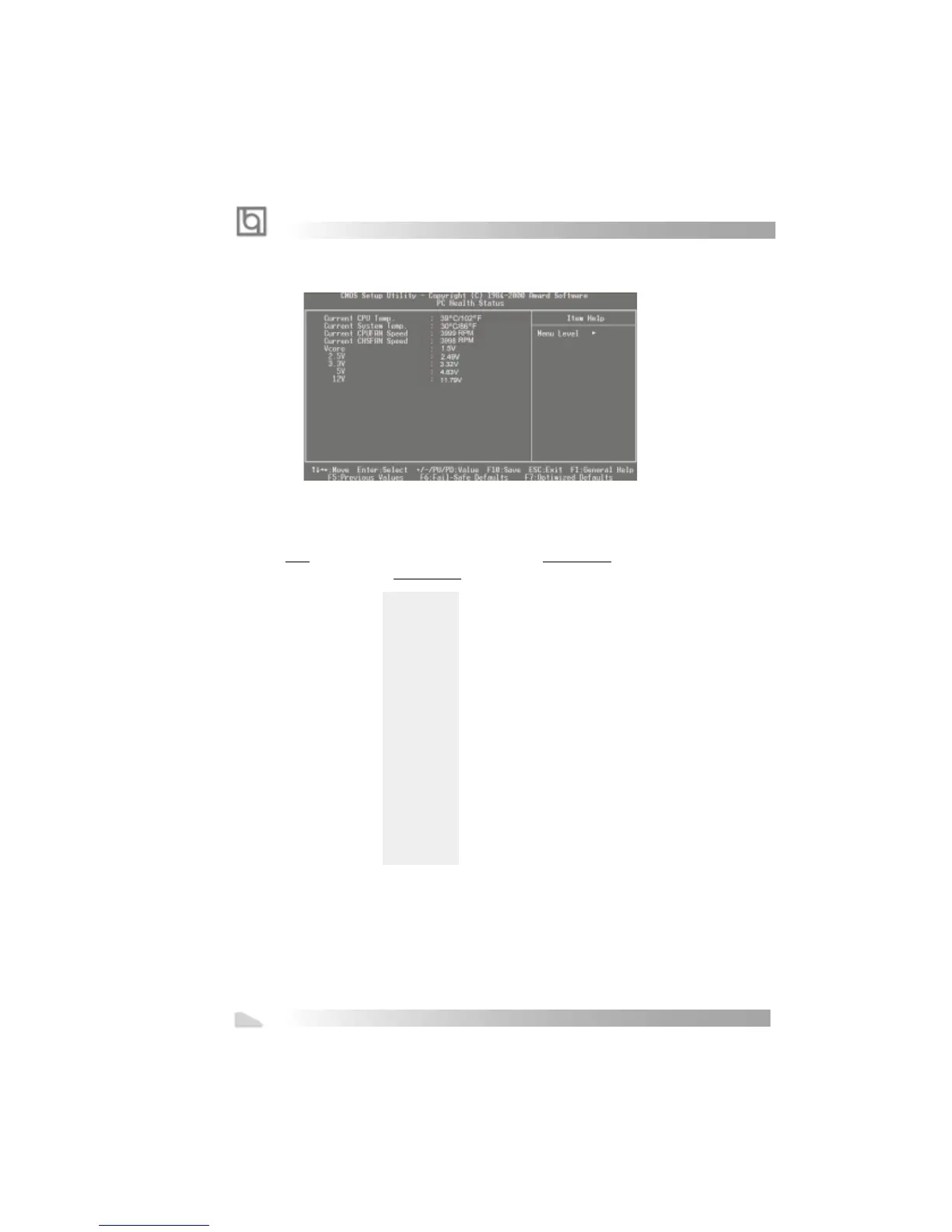

Figure-9 PC Health Status Menu
The following describes the meaning of each item.
Item Current Description
Data Shown
l Current CPU Temp 39
0
C/102
0
C Temperature of the CPU core.
l Current System Temp. 30
0
C/ 86
0
F Temperature inside the chassis.
Current CPUFAN Speed 3999RPM RPM( Revolution Per Minute) speed of fan
Current CHSFAN Speed 3998RPM connected to the fan header CPUFAN/
CHSFAN. Fan speed value is based
on an assumption that tachometer signal is
two pulses per revolution; In other cases,
you should regard it relatively.
l Vcore 1.5V Displays current Voltage values including all
2.5V 2.49 significant voltages of the mainboard. +3.3V,
3.3V 3.32V +2.5V, +12V and 5V are voltages from the
5V 4.83V ATX power supply, Vcore Voltage is the
12V 11.79V CPU core voltage from the on board switching
power supply.
